FlexRadio Maestro Control Console for the FLEX-6000
Flex-Radio software defined
FlexRadio Maestro Control Console for the FLEX-6000
£1,349.95 (£1,124.96 exc. VAT)
Download a PDF document for FlexRadio Maestro Control Console for the FLEX-6000
Fast UK
delivery
Worldwide
delivery
Add to wishlist
Product code:FlexRadio-Maestro
Brand:Flex-Radio software defined

Whether you are the most serious contest operator, DX chaser, rag chewer, or you just love to "play radio," Maestro is fun and easy to operate. Maestro harmoniously combines a high definition 8 inch touch display in concert with ergonomically designed controls to enhance ease of use and maximize workflow efficiency in virtually any SmartSDR™ application.We interviewed some of the world's top contest/DX operators to understand their demanding operating style and personal goals. Over and over we heard that the most frequently used controls should be intuitive, single function, require minimal hand motion and be comfortable to use over long periods. The message was "keep it simple." Maestro orchestrates control function, placement and ergonomics for maximum tempo in the most important configurations including DX, split, SO2R, Run, S&P, and Multi operation.

Maestro places the most frequently used radio controls directly at your fingertips. Controls are labeled for intuitive operation and designed to minimize hand motion for the most common operations. Occasionally used controls are easily accessible on the large touch screen display bypassing the complexity of multi-function buttons and multi-level menus found on most transceivers.

FlexRadio continues to set the standard for high resolution, real time spectral display in amateur radio transceivers with Maestro, extending that same “HD visual radio” capability from the PC based SmartSDR for Windows™ to the 8 inch touch screen format. Like modern phones and tablets, capacitive touch control is provided on the large LCD display for intuitive pan, zoom, tune, and menu operation.

Ever wish you could monitor the bands or work DX from the comfort of your living room or out on the patio? Its sleek, lightweight design makes it easy to carry, pack or go mobile. Off the shelf VESA and VESA to RAM® adapters provide a wealth of mounting options. An optional battery pack with WiFi connectivity even lets you operate completely untethered. Just connect Maestro using WiFi, through your local area network (LAN) or directly to any FLEX-6300, FLEX-6500 or FLEX-6700 transceiver and you are ready to operate.

PLUG-AND-PLAY CONTROL CONSOLE FOR THE FLEX-6000 SERIES

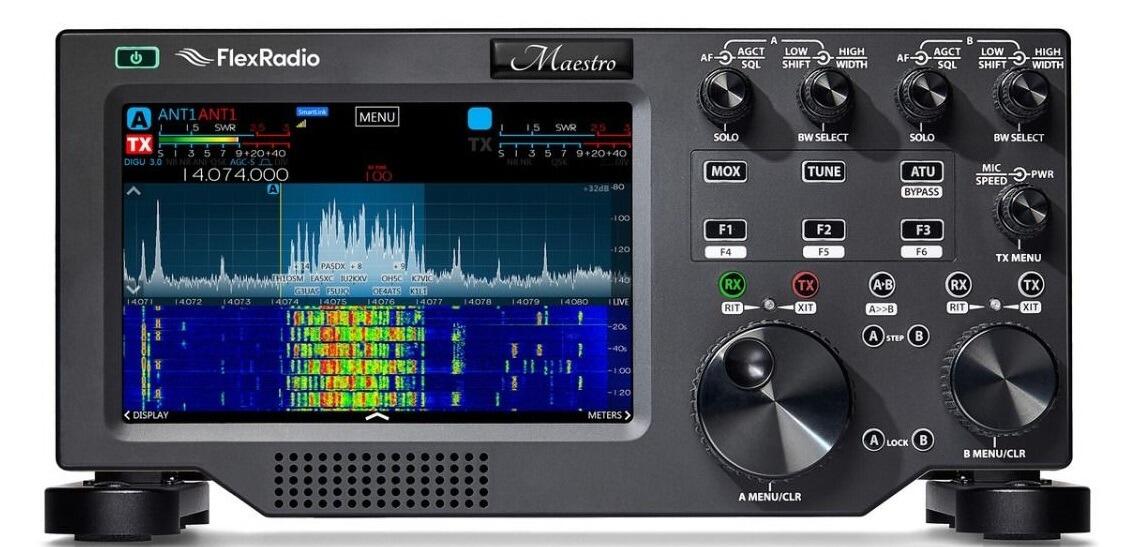

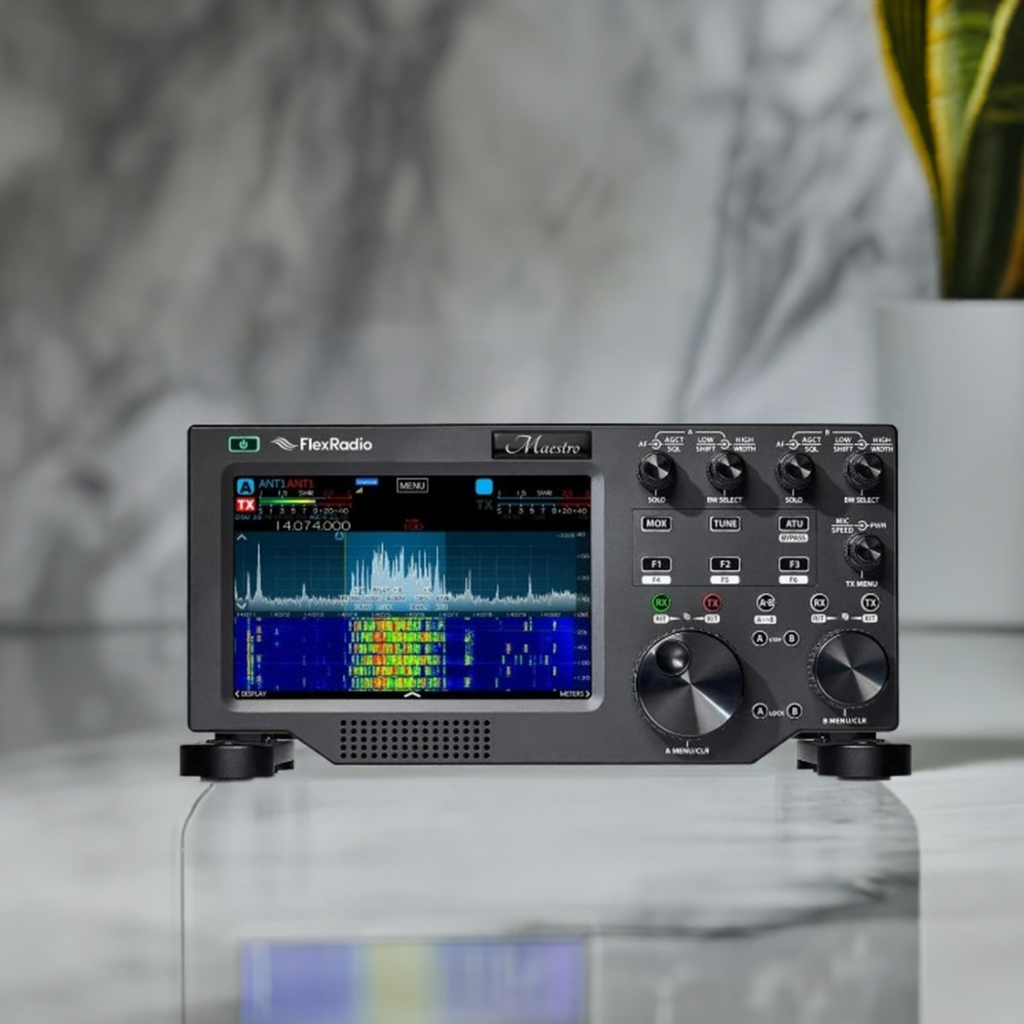

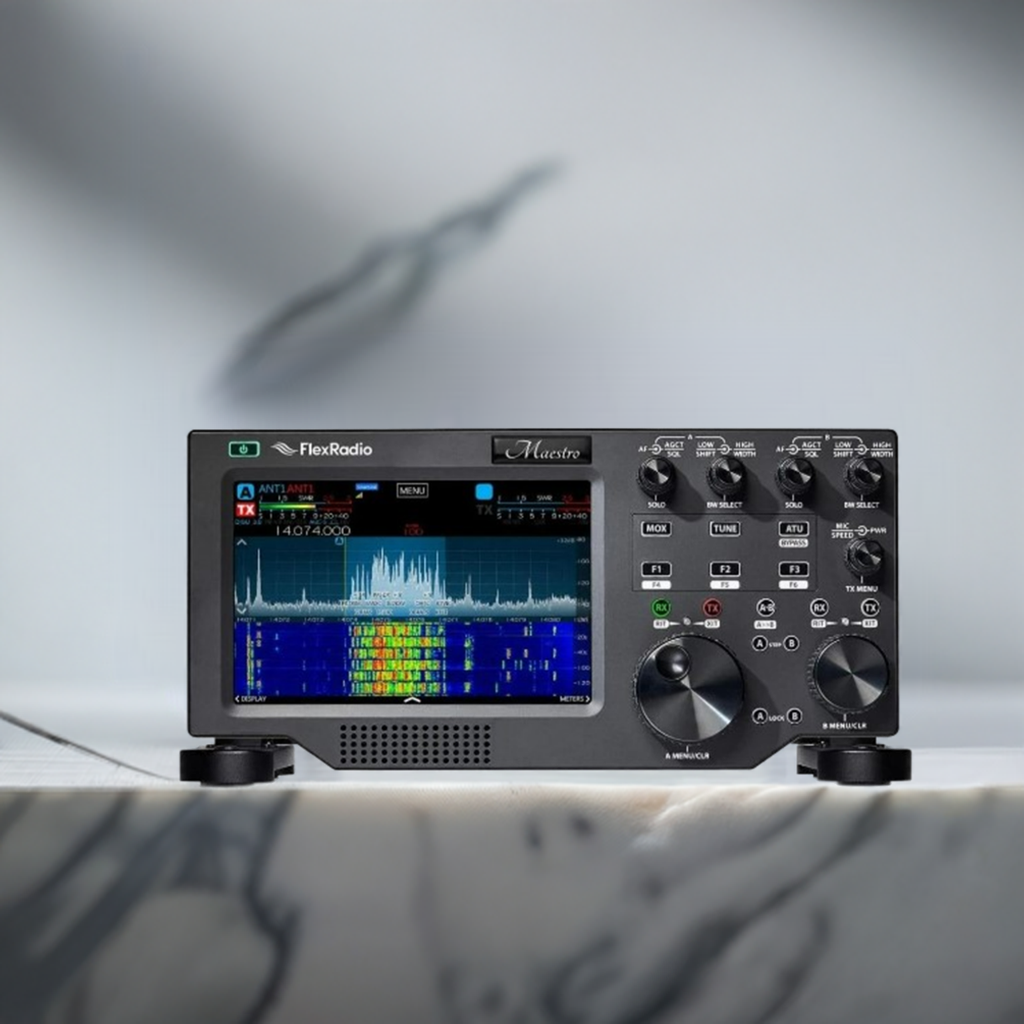

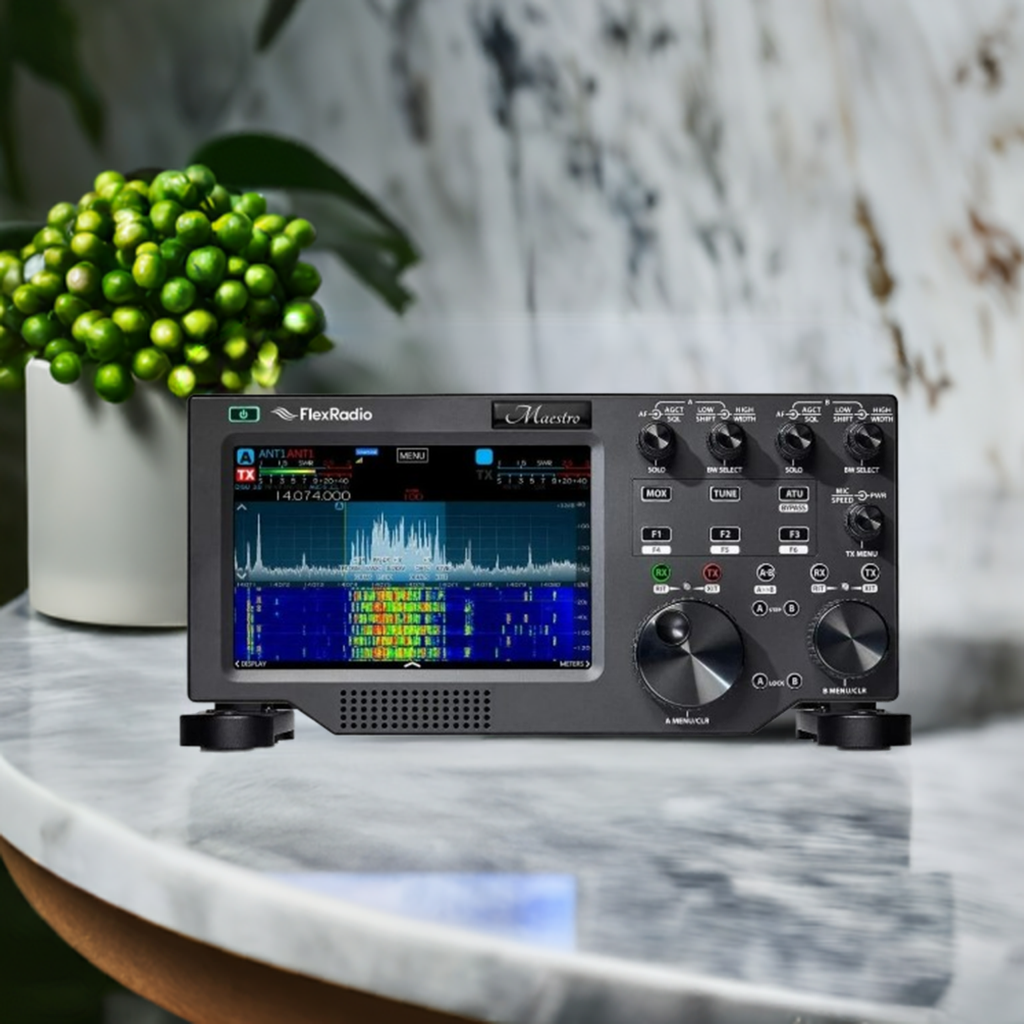

Introducing Maestro™ - an intuitive, plug-and-play control console that directs operation of any FLEX-6000 Signature Series transceiver without need of a traditional PC. Connect Maestro directly or through your local area network (LAN) to any FLEX-6300, FLEX-6500 or FLEX-6700 transceiver and you are ready to operate.

INTUITIVE OPTIMIZED WORKFLOW

Whether you are the most serious contest operator, DX chaser, rag chewer, or you just love to "play radio," Maestro is fun and easy to operate. Maestro harmoniously combines a high definition 8 inch touch display in concert with ergonomically designed controls to enhance ease of use and maximize workflow efficiency in virtually any SmartSDR™ application.

We interviewed some of the world's top contest/DX operators to understand their demanding operating style and personal goals. Over and over we heard that the most frequently used controls should be intuitive, single function, require minimal hand motion and be comfortable to use over long periods. The message was "keep it simple." Maestro orchestrates control function, placement and ergonomics for maximum tempo in the most important configurations including DX, split, SO2R, Run, S&P, and Multi operation.

Maestro places the most frequently used controls directly at your fingertips. Controls are labelled for intuitive operation and designed to minimize hand motion for the most common operations. Occasionally used controls are easily accessible on the large touch screen display bypassing the complexity of multi-function buttons and multi-level menus found on most transceivers. Like modern phones and tablets, capacitive touch control is provided on the large LCD display for intuitive pan, zoom, tune, and menu operation.

Flexradio continues to set the standard for high resolution, real time spectral display in amateur radio transceivers. Maestro now extends that same "HD visual radio" capability from the PC based SmartSDR for Windows™ to the 8 inch touch screen format.

NOW YOUR SHACK IS AS BIG AS YOUR LAN

Ever wish you could monitor the bands or work DX from the comfort of your living room or out on the patio? Now you can! Maestro's small footprint and minimal wiring cleans up your operating position and lets you mount the radio virtually anywhere in the shack or around the house. Its sleek, lightweight design makes it easy to carry or pack. An optional battery pack even lets you operate completely untethered. Off the shelf VESA and VESA to RAM® adapters provide a wealth of mounting options.

Visual Display

• Real time spectrum display and waterfall

• Up to 2 simultaneous band displays

• Large 8.0" In Plane Switching (IPS) display

• 10-point capacitive touch screen control

• HD (WXGA 1280 x 800) resolution

Radio Controls

• Slice (VFO) A/B high resolution controls

• Independent A/B Pass Band Tuning, AGC-T, and audio controls

• Quick touch for critical tuning operations

• Easy access to secondary on-screen menus

Connectivity

• Dual-band 2x2 802.11a/b/g/n WiFi

• 10/100/1000 Mbps Ethernet: RJ-45

• Bluetooth® 4.0

Size and Weight

• 6.75" H x 14" W x 1.75"D without feet

(17.12cm H x 35.56cm W x 4.45cm D w/o feet)

• Approximately 5 lbs. / 2.3kg (without optional battery)

Input/Output

• Microphone: dynamic or electret compatible

• Stereo headphone jack

• Internal 2W mono speaker

• Line/powered stereo speaker output

• Line input

• Key / paddle input

• PTT input

• Remote ON control for FLEX-6000 Series

Power

• 10-15 VDC DC connector

• Battery option available (not included)

Mounting Options

• Removable tilt hinge feet

• 100mm VESA mounting holes

• Optional VESA to RAM® mount available
