NISSEI RS-50 SWR 120W Power METER VHF 140-150MHZ / UHF 430-450MH
Click the image to enlarge

Nissei radio products

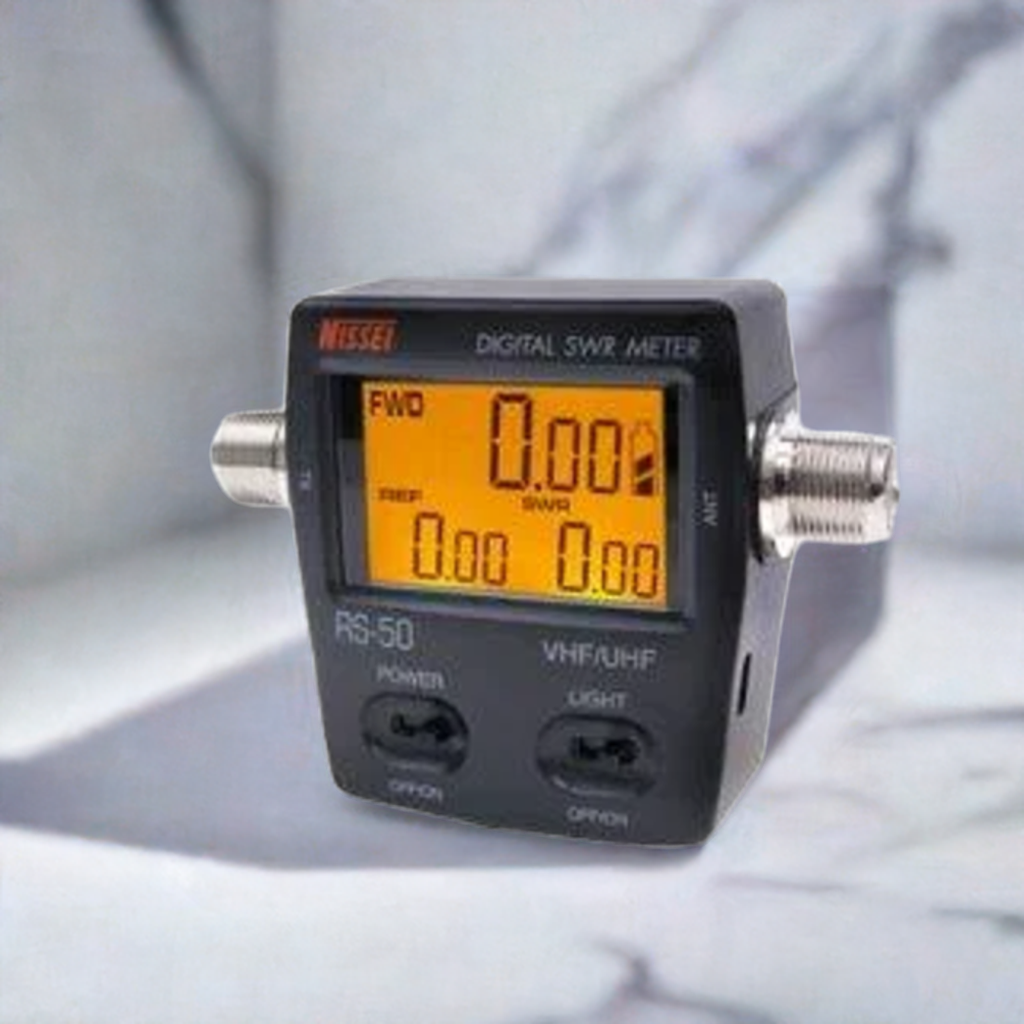

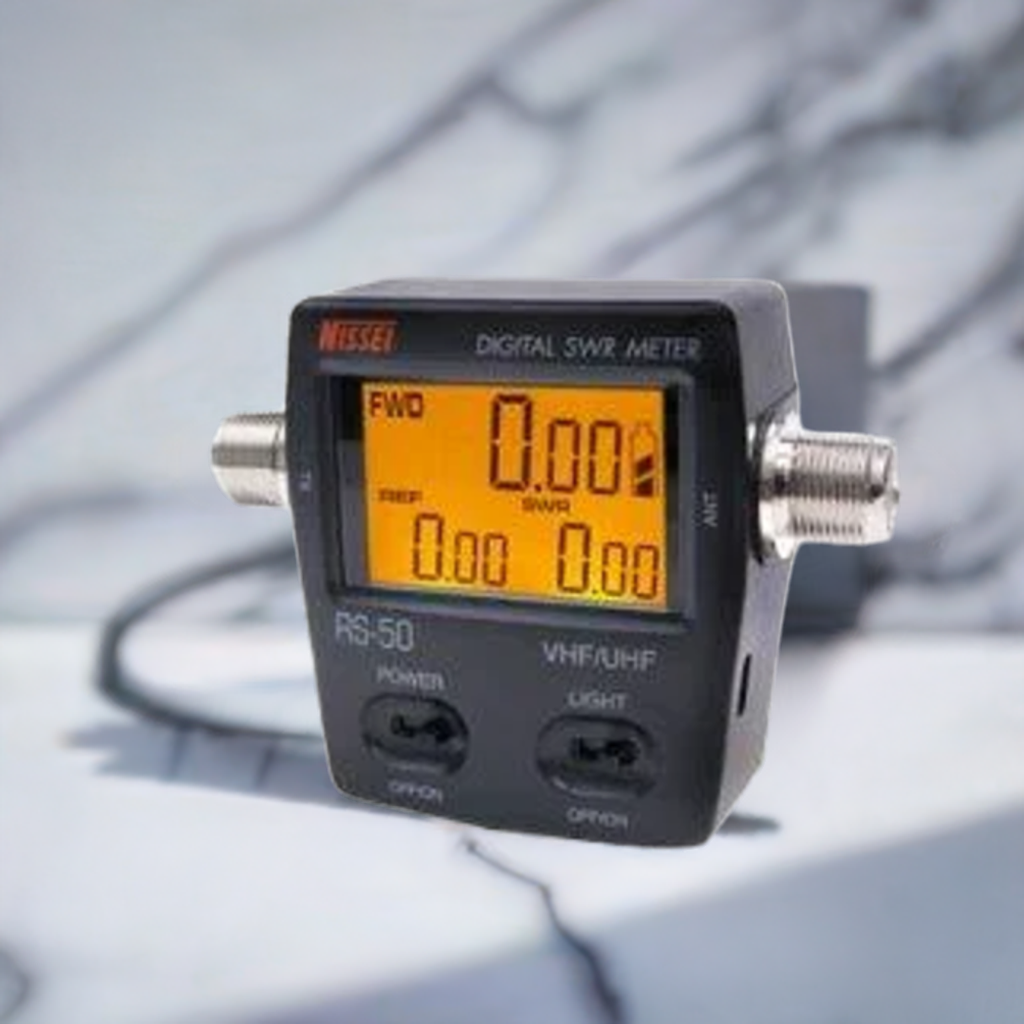

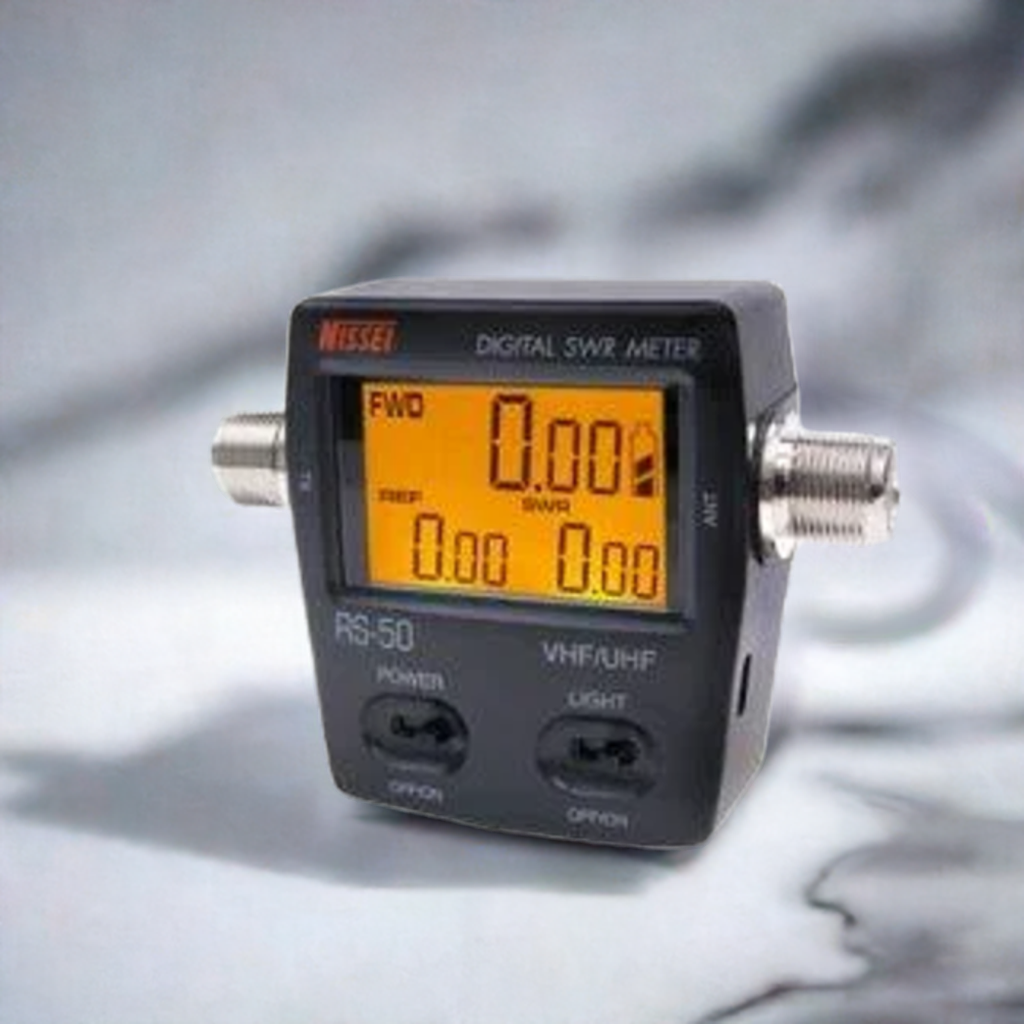

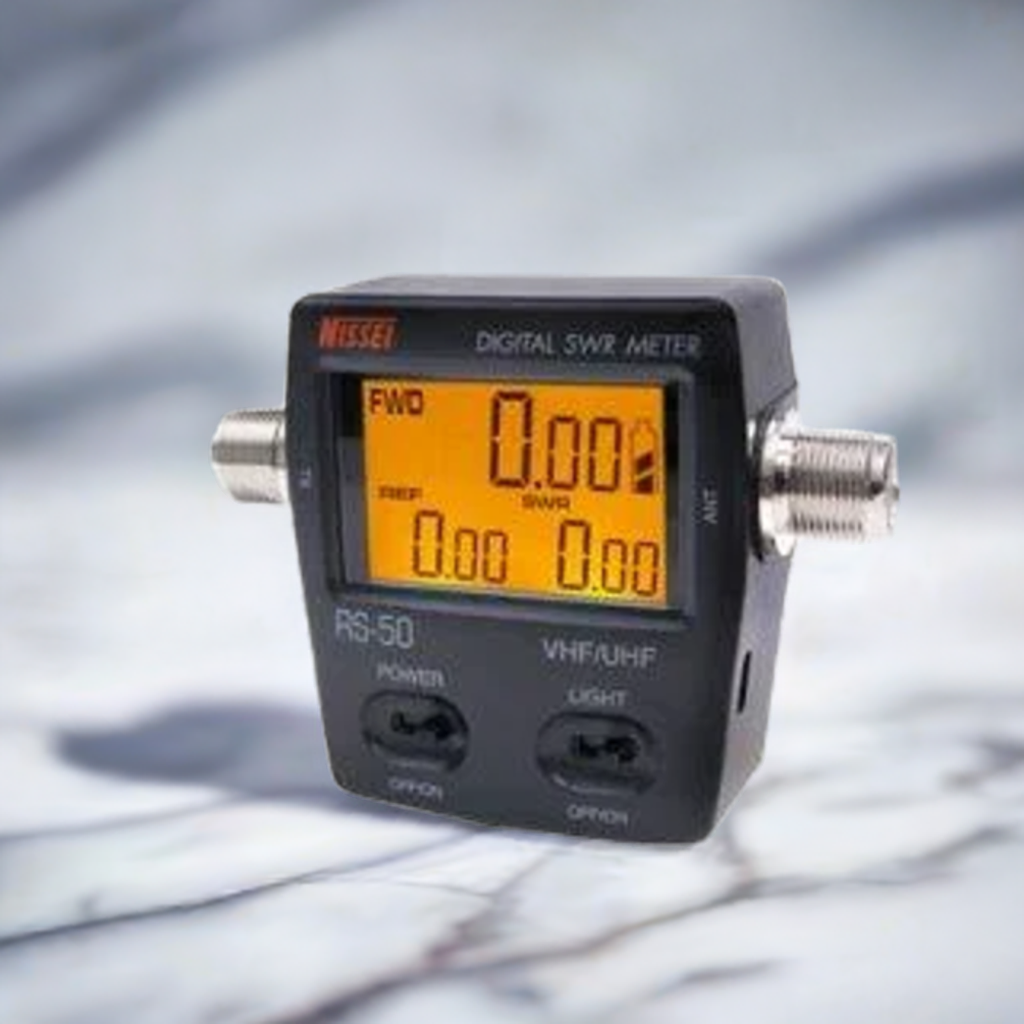

NISSEI RS-50 SWR 120W Power METER VHF 140-150MHZ / UHF 430-450MHZ

£0.00
(£0.00 exc. VAT)
£69.95
(£58.29 exc. VAT)
Qty:
0 Reward points
Product code: NISSEI RS-50
Download a pdf document for NISSEI RS-50 SWR 120W Power METER VHF 140-150MHZ / UHF 430-450MHZ
Finance available on baskets over £250 view details

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£69.95
12 Months 14.9% APR
£6.99
£6.03
£79.33
£69.95
18 Months 14.9% APR
£6.99
£4.02
£79.33
£69.95
24 Months 14.9% APR
£6.99
£3.01
£79.33
£69.95
36 Months 14.9% APR
£6.99
£2.01
£79.33
£69.95
48 Months 14.9% APR
£6.99
£1.51
£79.33
£69.95
12 Months 19.5% APR
£6.99
£6.27
£82.22
£69.95
18 Months 19.5% APR
£6.99
£4.18
£82.22
£69.95
24 Months 19.5% APR
£6.99
£3.13
£82.22
£69.95
36 Months 19.5% APR
£6.99
£2.09
£82.22
£69.95
48 Months 19.5% APR
£6.99
£1.57
£82.22

Main Features:

1.Forward/Reversed/VSWR ration in one push button.

2.LED backlit display for ease of reading.

3.Power Source: internal "AAA" batteries/external USB Port.

4.Applicable rechargeable battery.

5.Micro USB-DC5V Ouput(not include adapter).

6.Convenient control layout for ease operation.

Specification

Frequency Range

12-525MHz

Center Calibrated

145MHz(VHF)

435MHz(UHF)

Power Range

0-120W ±5%

Testing Functions

Fwd/Rev Power,SWR

Insertion Loss

0.3dB or Lower

Impedance

50Ω

Power Source

Battery”AAA” or Micro USB Port

Connector

SO239 M Type

Dimensions

70W*78H*30Dmm

Net Weight

220g (no batteries)

Measurement:

1.Apply output of transceiver to "TX" and antenna or load to "ANT".

2."POWER" on for ready to use.

3.LCD display show simultaneously "Fwd/Rev Power and SWR".

4.For back=light,please switch"LIGHT" to "ON".

No function in 30 seconds,The backlit will automatically off.

Once PTT launched, the backlit will be back.

Battery Installation:

1.Remove the black screw from the cover to opern the rear panel.

2.Install 2pcs "AAA" batteries.

3.Can be used with alkaline or Ni-ca,Ni-MH rechargeable battery.

4.This unit has no built-in charging circuitry.

5.Be sure to correct polarity of battery.

6.Remove the battery if the unit won't be used in long period.

Noted:

1.Can be used both alkaline battery (1.5V) or rechargeable battery (1.2V)

2.This unit has no built-in charging circuitry.

3.Be sure to switch off both "Power" & "Light" after use for saving battery power.

Each Set Package Contain:

-1× NISSEI RS-50 Digital SWR / Watt Meter

-1× User's Manual
