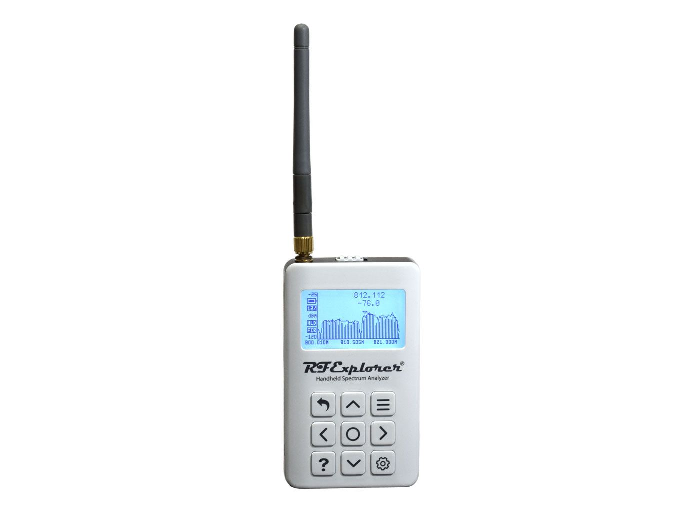

Rf explorer wsub1g+ spectrum analyser - 1ghz frequency range starting at 50khz.
RF Explorer WSUB1G+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz.
The new SLIM model offers an outstanding robust design, a more convenient USB connector on the side and larger internal battery capacity.Â
FeaturesÂ
Internal LNA amplifier and selectable attenuator
Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
Ideal choice for HAM bands from 160meters to 33cm
Pocket size and light weight
Solid metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
Multi-platform Windows/Linux/MacOS Open Source software and API libraries
Can be extended with internal Expansion Modules for additional band and functionality
SpecificationÂ
Frequency band: 0.05 – 960MHz
Frequency span: 0.1 – 960MHz
Internal selectable LNA 25dB gain
Internal selectable Attenuator 30dB
Graphics LCD 128x64 pixels, great visibility outdoors
Support included for Windows, Linux and MacOS X
Backlight for great visibility indoor
Internal Lithium Ion 1800mA/h rechargeable battery
Standard SMA 50 ohms connector
Wideband 144/433MHz dual band telescopic antenna included
UHF 400-900MHz rubber duck articulated antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: +30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-2dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Note
 RF Explorer is a very sensitive spectrum analyzer, specially designed to detect signals with aerial antenna. For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggestÂ
using a RF Explorer Power Limiter. More details at
www.rf-explorer.com/PLIMITERÂ
Part ListÂ
1 x Spectrum Analyzer
1 x Mini USB cable
1 x Dual band 144/430MHz Telescopic antenna
1 x UHF 400-900Mhz antenna
1 x EVA case
