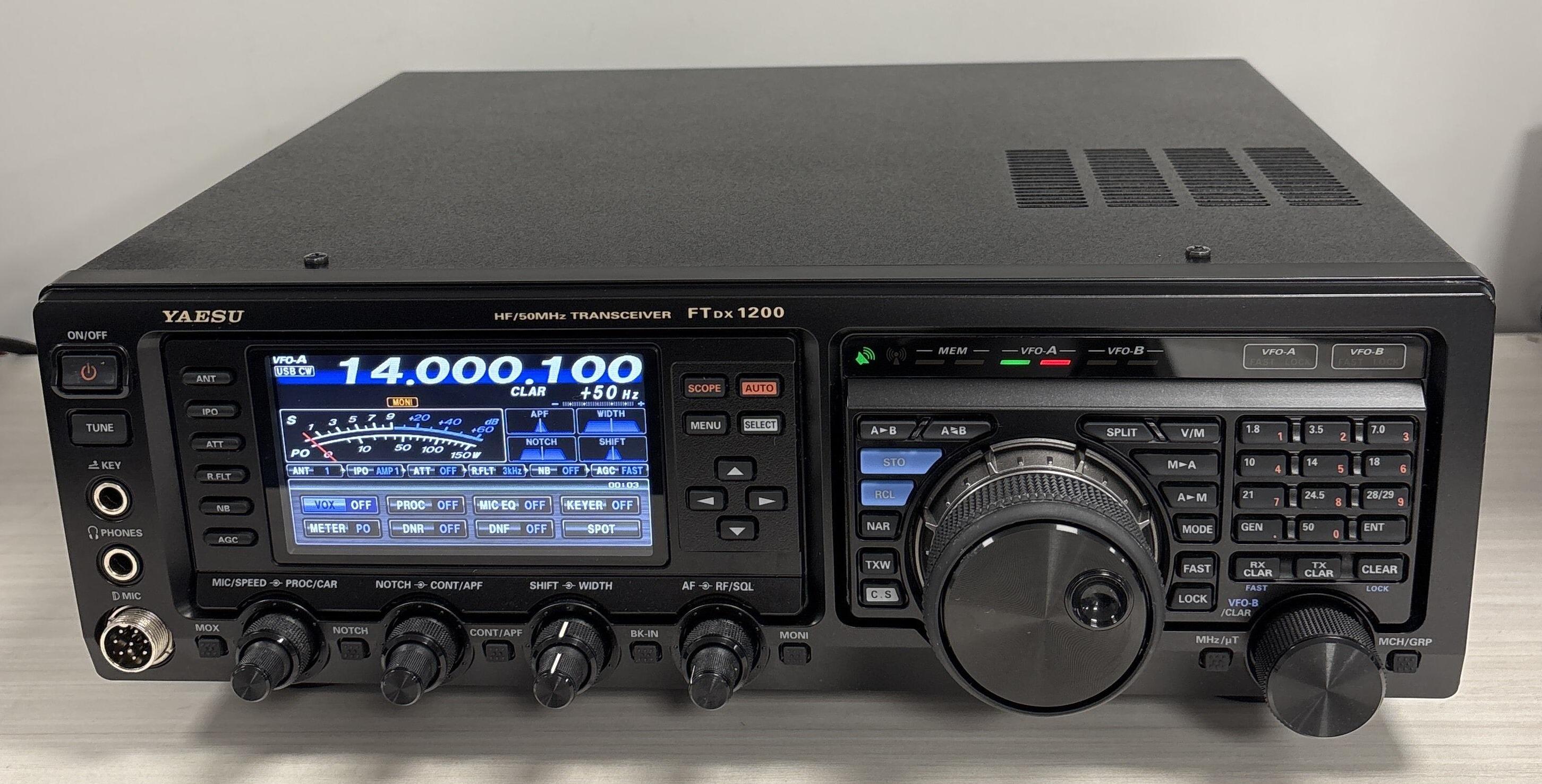

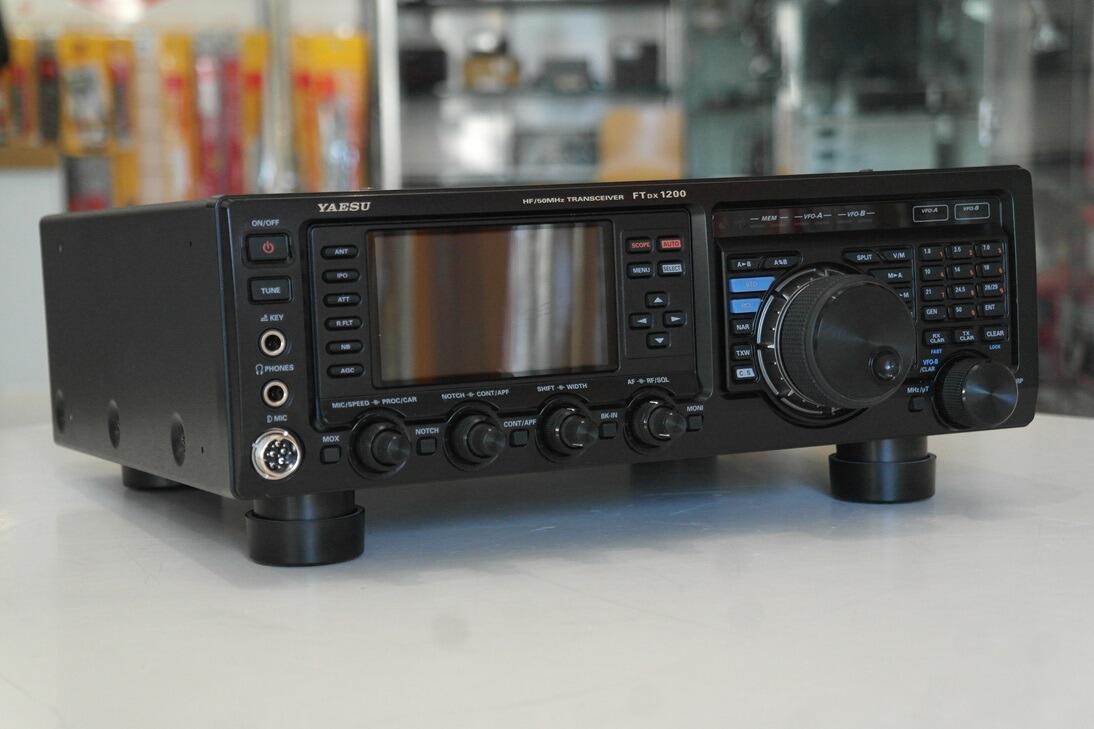

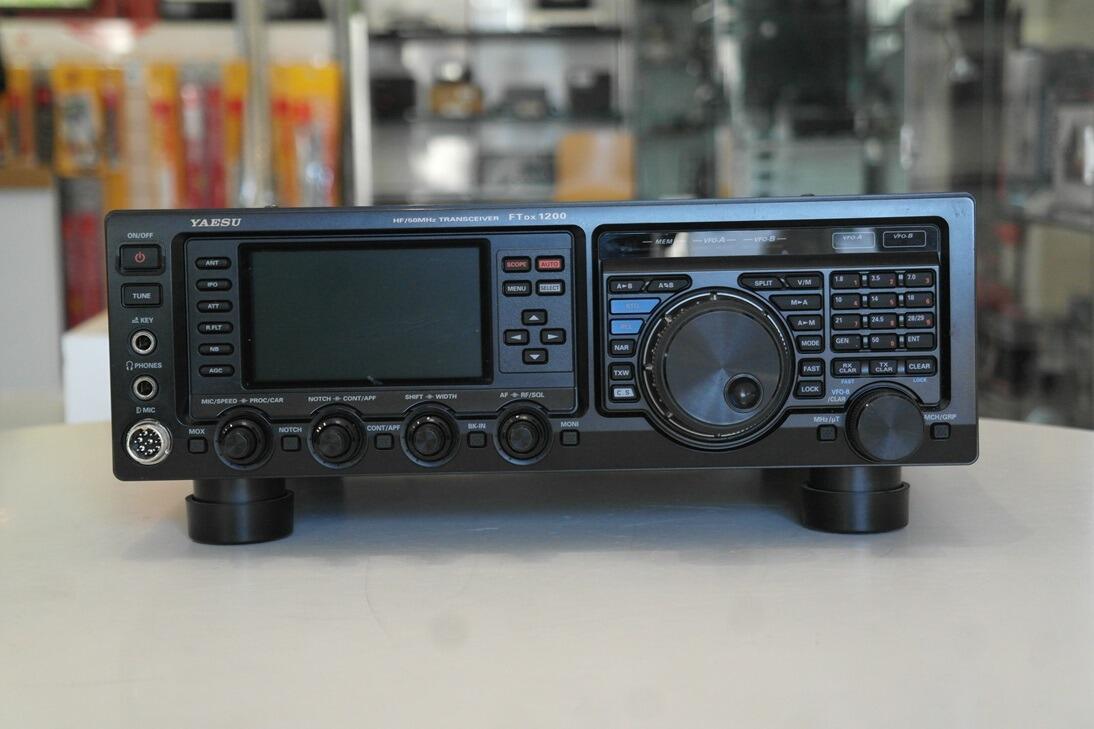

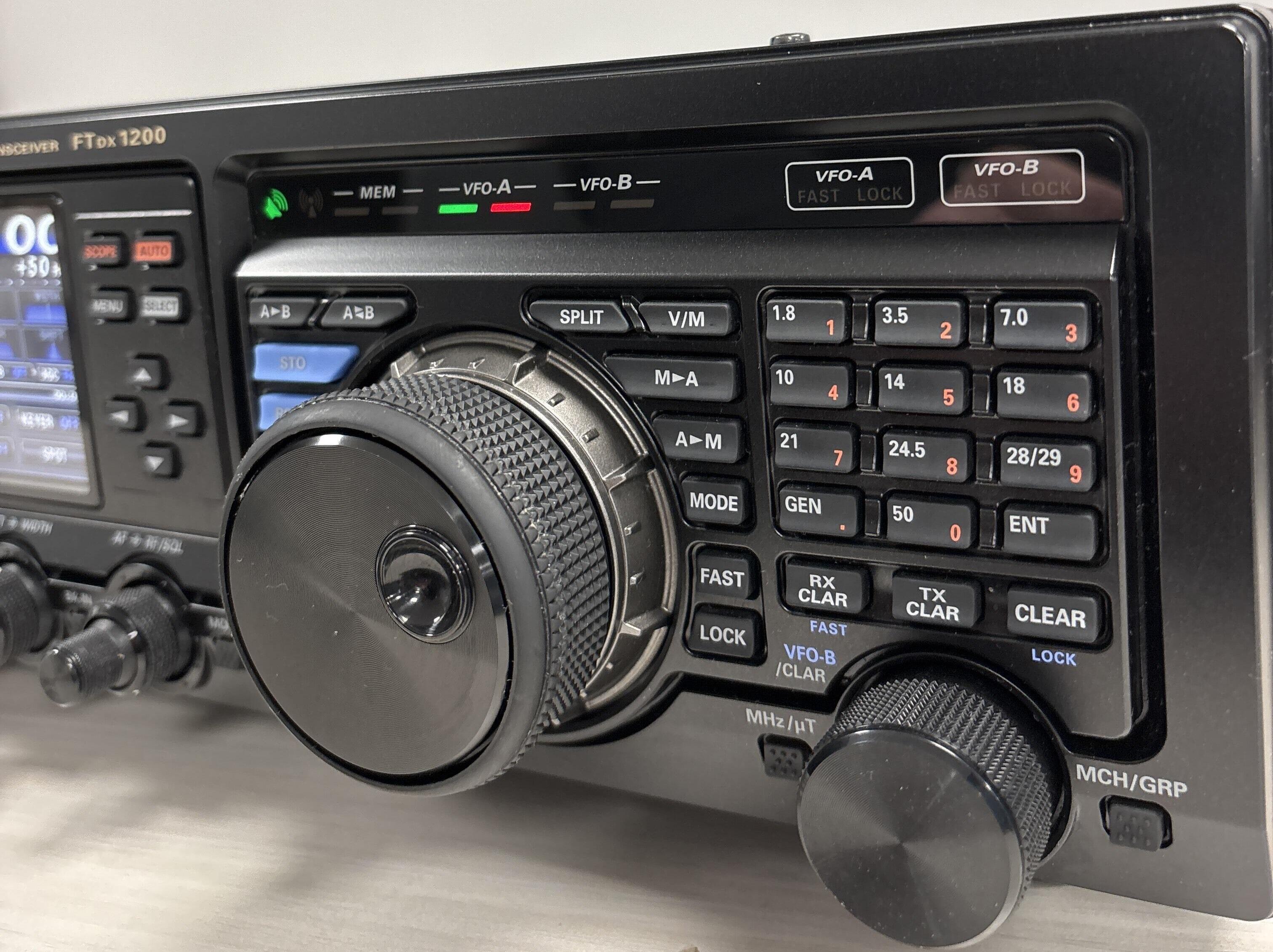

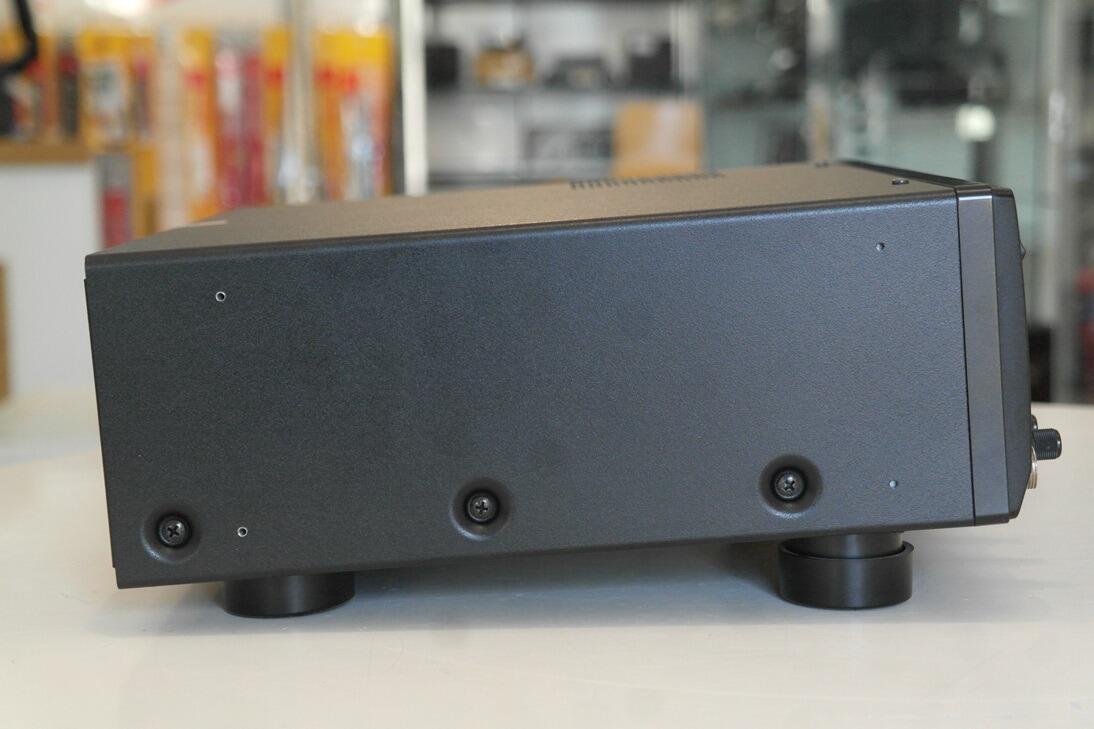

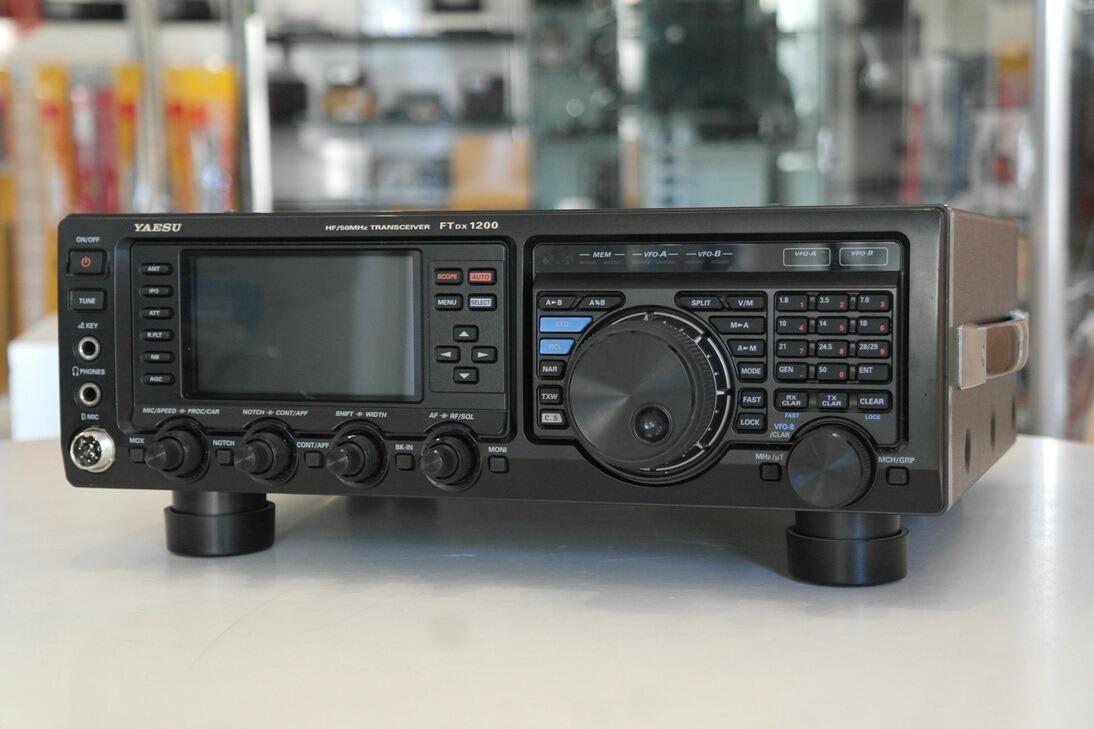

The Yaesu FTDX-1200 HF Base Station Transceiver is sophisticated equipment designed for amateur radio enthusiasts. It operates across a frequency range of 160 to 6 meters, delivering up to 100 Watts in SSB, CW, and FM modes and a 25 Watts AM carrier. The transceiver features a highly balanced receiver circuit configuration that ensures optimal performance in today’s crowded bands, making it an excellent choice for casual and serious operators.

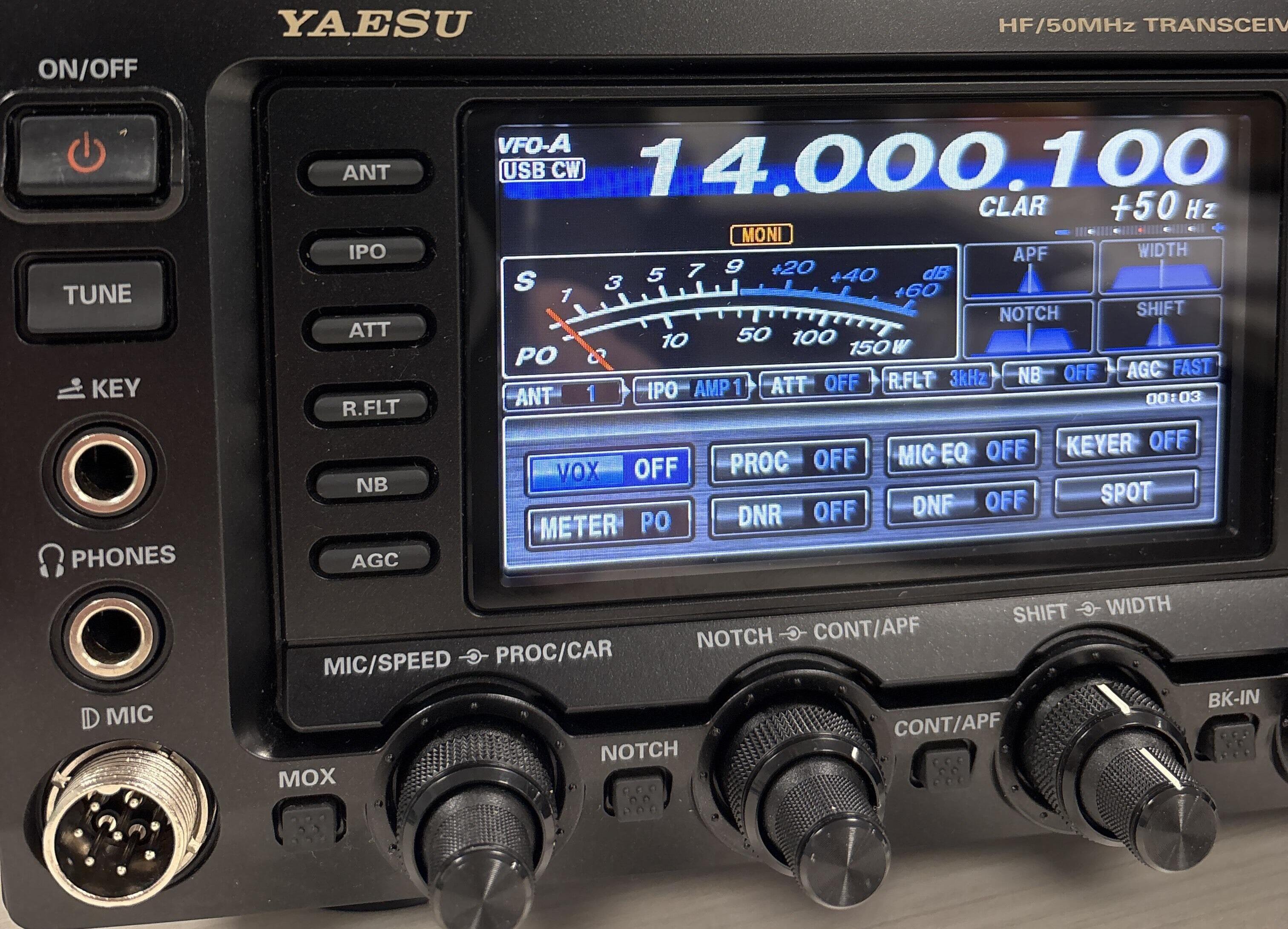

One of the standout features of the FTDX-1200 is its advanced 32-bit high-speed floating-point DSP, which significantly enhances weak signal processing. The device is equipped with selectable roofing filters of 3 kHz, 6 kHz, and 15 kHz, effectively reducing interference from unwanted signals. The triple conversion circuit structure allows for flexible gain distribution, enabling users to fine-tune their settings for improved clarity and reception. The built-in 4.3-inch TFT full-colour display also provides information, enhancing operability and visibility during operation.

The FTDX-1200 supports a range of sophisticated optional accessories to expand its capabilities. The FFT-1 module adds advanced functionalities such as an AF-FFT scope, RTTY/PSK31 encoding and decoding, and CW decoding with auto zero-in features. The SCU-17 USB Interface facilitates CAT control, USB audio in/out, and firmware updates, further enhancing the transceiver's versatility. With its robust features and high-performance design, the Yaesu FTDX-1200 stands out as a premier choice for amateur radio operators seeking reliability and sophistication in their equipment.
