SB-30BB is a high-efficiency switching power supply with a small footprint and lightweight construction. It boasts exceptional immunity to Radio Frequency Interference at close range, making it a reliable choice for various applications. The power supply features constant current protection and Output Over Voltage Protection (OVP) to ensure enhanced reliability and safety for the device and its connected load.

With an AC 220V/50Hz input voltage, the SB-30BB offers a fixed output voltage of 13.8VDC±0.5V with less than 2% voltage regulation. It provides overload and short circuit protection through constant current circuitry and Output Over Voltage Protection for added safety. The power supply delivers a maximum output current of 30A, with ripple and noise levels below ≤100mVp-p.

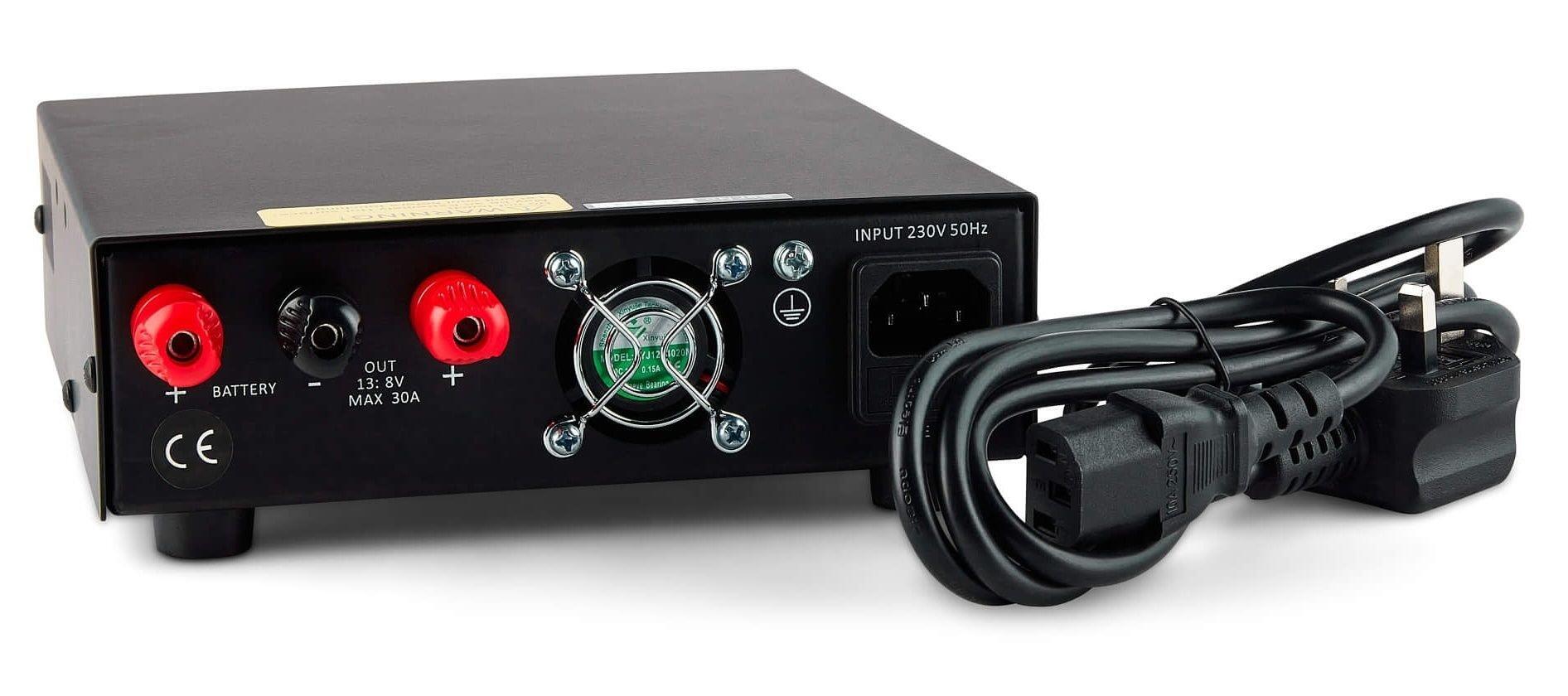

Measuring 181x63x190 mm and weighing 1.52kg, the SB-30BB is compact and portable. It has a main DC output at the rear and a front-mounted cigar socket for convenient connectivity. The power supply also features excellent line and load regulation, ensuring low ripple and noise for optimal performance.
