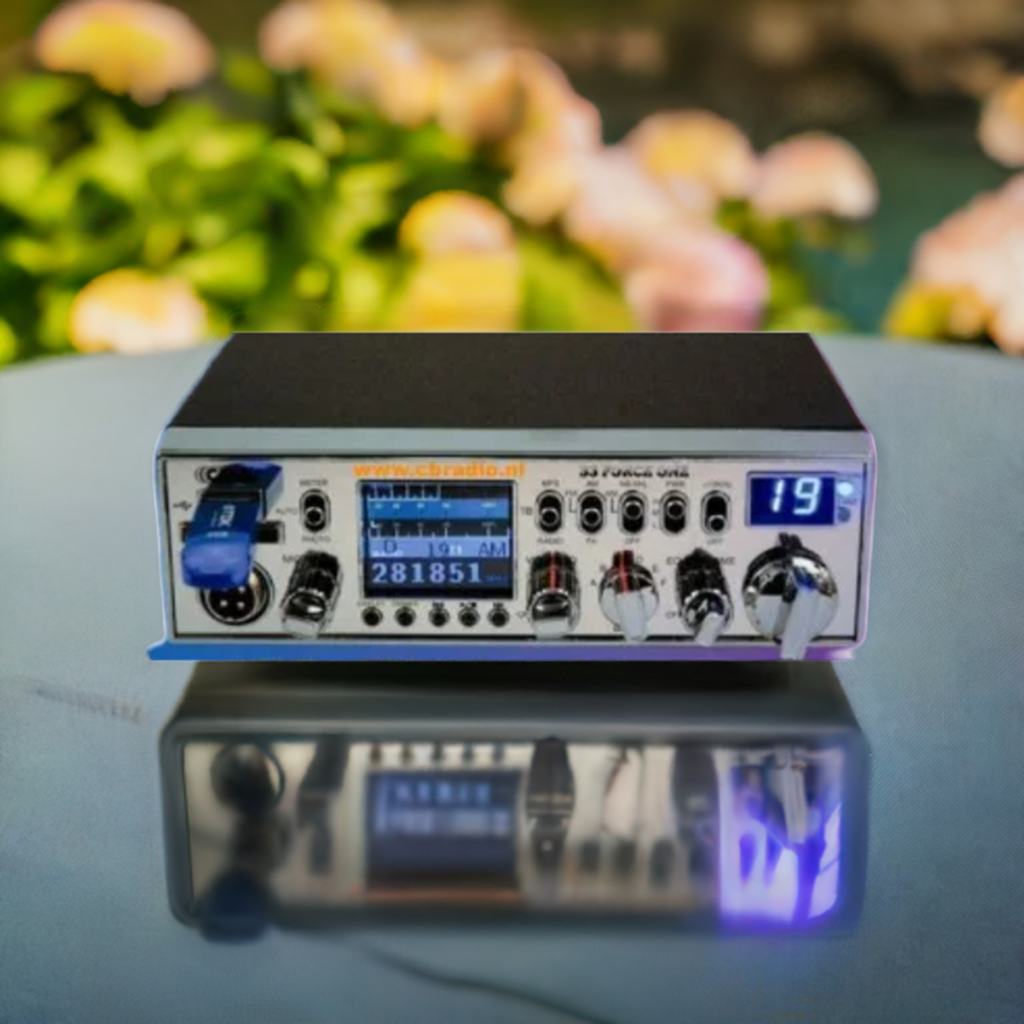

FREQUENCIES: 28.145 – 28.575MHZ, OUTPOWER: 15 WATTS AM/FM, AM/FM, MICROPHONE 4 B, BLUE DISPLAY CHANNELS
CHANNEL SELECTOR, RF GAIN CONTROL / MIC GAIN CONTROL, VOLUME/SQUELCH, ECHO/TALKBACK CONTROL: to adjust the volume of echo and the volume of Talkback. TIME CONTROL: to adjust intervals of echo. + 10 kHz SHIFT, INDICATOR RX‐TX, FILTER NB/ANL, BAND SELECTOR, INDICATOR ANT, POWER H/M/L SWITCH, TFT LCD DISPLAY: The Front Panel Display allows the user to monitor signal strength, RF output power, SWR, level, and it displays a photo. DISPLAY SELECT: This is used to select the different types of meters or photos to be used as a display. 12, displays RX/TX, DIMMER: controls the level of brightness for the display lamp and the channel display. PLAY/STOP SWITCH: controls the play and stop function for an MP3 player. NEXT/FORWARD SWITCH: used for selecting or skipping to the next track from the Music List or the picture. REVERSE: This Push Switch is used to select a Music track or the previous picture. SD Port: Used for connecting SD card for Music or photo source. 2GB capacity, USB Port: Used to connect USB stick for Music or Photo source. 1 GB capacity.
Supplementary amplifier audio stereo 2x10 Watts,
METER/AUTO/PHOTO SWITCH: used to select mode meter (display indicate the strength of the signal, the RF
power output, modulation, and SWR), to select mode Auto (Allows an automatic scrolling of photos), to select
mode photo (Allows to see photos in the display)
MP3/TB/RADIO SWITCH: to select one of the following operating modes; MP3 Player, TB, or Radio.
AUX OUTPUT: This Stereo 3.5 mm jack, Supply 200-ohm 2V Output for external Audio Amplify.
RIGHT and LEFT STEREO SP: jack accepts 4 to 8 ohms, 5 watts external speaker.
PA SP.: RADIATOR: allows cooling of the transceiver.
Input Voltage 13.8V DC,
Size: 200 mm(l) x 60 mm(h) x 260 mm(L)
Please Note: Using an SD card of greater capacity than 2GB, or using a USB stick with a capacity greater than 1GB will cause the display and MP3 player to malfunction.
