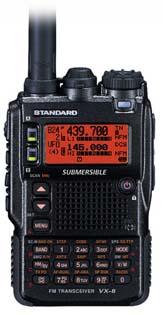

The Yaesu VX-8DE APRS/GPS/Bluetooth handheld transceiver is an additional version of the VX-8 that includes not only it's solid feature and specifications but also new expanded APRS capabilities to meet the needs of even the most active APRS user. The VX-8DE has the same appearance as the VX-8E and uses the very same accessories Key additional APRS features of the VX-8DE compared to the VX-8 include.

Smart beaconing function: When using APRS for position tracking, the beacon timing is automatically adjusted to your travelling speed and location to plot a smoother trace to match your position and movement on a map.
The number of Station List memories has increased from 40 to 50
The number of APRS message memories has increased from 20 to 30
DIGI-PATH route indication function: The APRS Packet data includes Digi-peater routing info
Heads up compass display to the GPS screen: Your travelling direction is always toward the top of the display
The message received LED flashing rate is selectable
The number of DIGI-PATH route settings is increased from 1 to 7

Main features:-

Bluetooth capabilities - the Bluetooth capabilities widely known and utilised among users and enthusiasts of the Yaesu VX-8, FTM-10 and FTM-350 radios, are also available with the VX-8DE. The optional Bluetooth unit BU-1 makes it possible to operate hands-free with the optional Bluetooth headset BH-1A(stereo) or BH-2A(monaural). Also enjoy your favourite FM broadcasts in stereo with the optional Bluetooth stereo headset (BH-1A) and earphone (FEP-1)

Heads-up Compass Display on the GPS screen - your travelling direction is always towards the top of the screen

DIGI-PATH Route Indication Function - The APRS Packet data includes Digi-peater routing information. Real Dual Ham Band Operation (V+V/U+U/V+U). With two independent ham band receivers, listen to either the same or different bands simultaneously.

Wide band receiver - Covers from 500kHz to 999.990MHz, continuous reception for shortwave, FM/AM broadcasts, analog TV stations, audio aircraft, public service channels, etc.
AM and FM reception - the VX-8DE has a completely independent AM/FM broadcast receiver and an internal bar antenna for better AM broadcast reception. Listen to FM broadcast in stereo with your stereo headset/earphone.
Built-in barometric pressure temperature sensor - The radio can monitor and display the temperature, pressure, altitude or any combination of these
Additional features - Memory stations may be displayed with 16 digit Alpha-numeric tags; CW training; Emergency automatic ID system; Emergency strobe/beep and busy strope LED functions

GENERAL
Frequency Range Receive: 0.5 - 1.8 MHz (BC Band)
1.8 - 30 MHz (Shortwave Band)
30 - 78 MHz (6 Meter ham)
76 - 108 MHz (FM)
108 - 137 MHz (Air Band)
137 - 174 MHz (144 MHz HAM)
174 - 222 MHz (VHF-TV)
222 - 225 MHz (222 MHz Ham)
225 - 420 MHz (General Band 1)
420 - 470 MHz (430 MHz HAM)
470 - 800 MHz (UHF-TV)
800 - 999 MHz (General Band 2 Cellular Blocked)
Frequency Range Transmit: 50 - 54 MHz
144 - 148 MHz
222 - 225 MHz (USA version only)
430 - 440 MHz
Channel Steps: 5/6.25/8.33/9/10/12.5/15/20/25/50/100 kHz
(10kHz: AMBC U.S.A. version)
Frequency Stability: ±5 ppm +14 °F to +122 °F (-10 °C to +50 °C)
Repeater Shift: ±600 kHz (144 MHz)
±1.6 MHz (220 MHz)
±1.6/5.0/7.6 MHz (430 MHz)
Emission Type: F2D, F3E, A3E, F2A, F1D
Antenna Impedance: 50 Ohms
Supply Voltage: Nominal: 7.4 VDC, Negative Ground
Operating Voltage: 10-16 VDC Negative Ground EXT DC Jack
Current Consumption: 200 mA (Mono Band Receive)
85 mA (Mono Band, Standby, Saver Off)
35 mA (Mono Band, Standby, Saver On)
300 µA (Auto Power Off)
1.6 Amps (5 Watts TX, 50 MHz)
1.7 Amps (Hi TX, 144 MHz)
1.9 Amps (Hi TX, 430 MHz)
Operating Temperature: -4°F to +140°F (-20°C to +60°C)
Case Size: 2.4 x 3.7 x 0.9 inches (60x95x24.2 mm) (without knob and antenna) 8.5 oz (240 g)

RECEIVER
Circuit Type: N-FM, AM Double-conversion, W-FM Triple Conversion, AM/FM Radio Single Conversion
IFs: 1st: 47.25 MHz (N-FM) [46.35 MHz Sub Band]
45.8 MHz (W-FM)
IFs: 2nd: 450 kHz (N-FM)
10.7 MHz (W-FM)
1 MHz (W-FM)
Sensitivity: 3.0 µV for 10dB S/N (0.5-30MHz, AM)
1.0 µV for 12dB SINAD (76-108 MHz/174-222 MHz/470-729MHz, W-FM)
0.16 µV for 12dB SINAD (50-54MHz/144-148MHz, N-FM)
0.18 µV for 12dB SINAD (430-450 MHz N-FM)
Selectivity (±6dB/±60dB): 12 kHz/35 kHz (N-FM)
200 kHz/300 kHz (W-FM)
AF Output: 200 mW @ 8 Ohms for 10% THD (@ 7.4 V DC)

TRANSMITTER
RF Power Output: 5 W (@ 13.8 V EXT DC Input)
50/144/430 MHz
5 W (@ 7.4V, 50 MHz/144MHz)
1.5 W (@ 7.4V 220 MHz)

Modulation Type: Variable Reactance
Maximum Deviation: ±5/±2.5 kHz
Spurious Emission: At least 60 dB down
Microphone Impedance: 2 k Ohm

Specifications are subject to change without notice and are guaranteed within ham bands only.
