Radioworld 13 pin SPE Expert CI-V control cable for Icom radios

13 Pin SPE Expert CI-V Control Cable for Icom Transceivers


Trustpilot

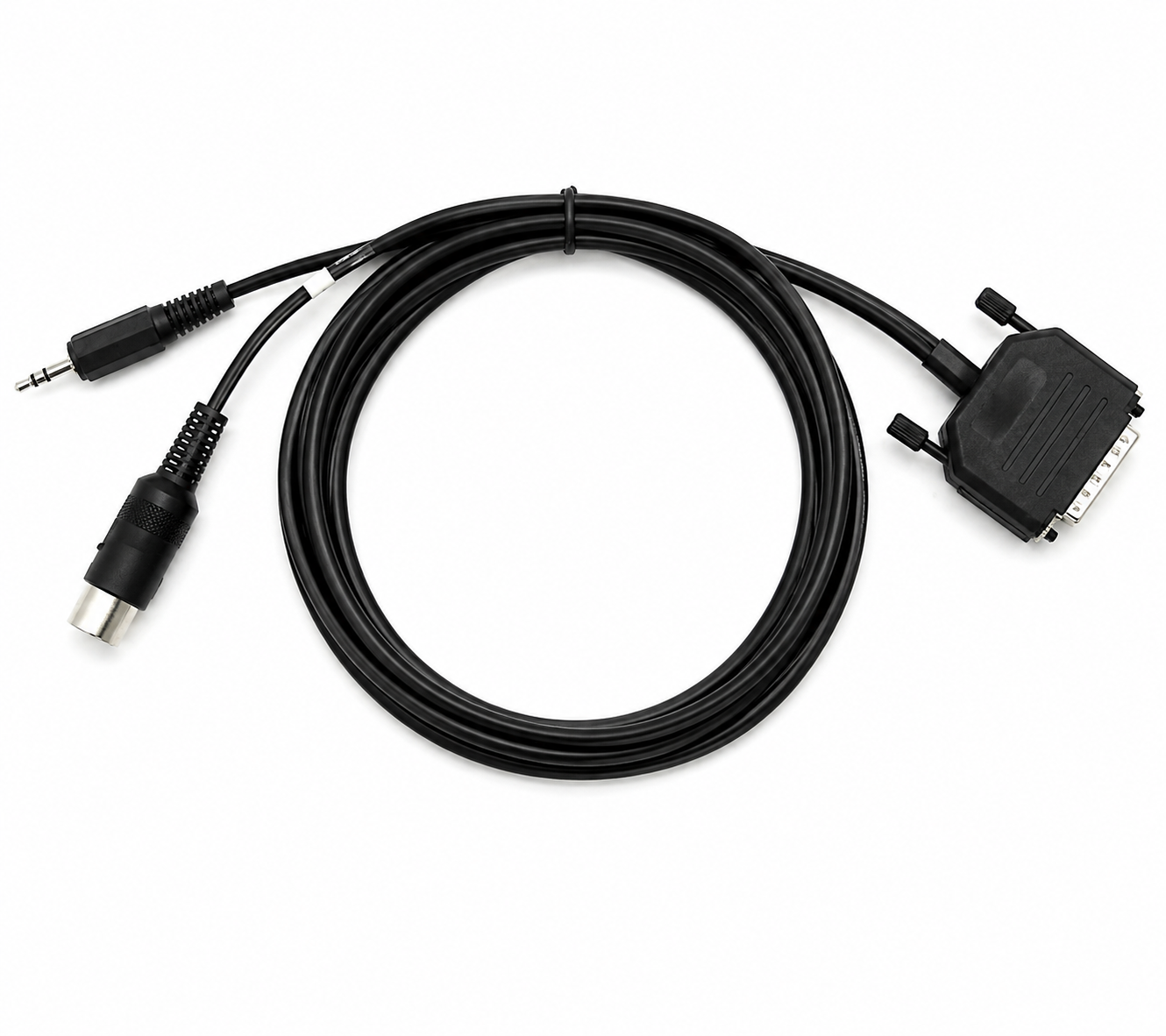

The Radioworld 13 Pin SPE Expert CI-V Control Cable provides an integrated connection between compatible Icom transceivers and SPE Expert 1K-FA, 1.3K-FA, 1.5K-FA and 2K-FA linear amplifiers.

Manufactured using high-quality screened cable and measuring approximately 1.5 metres (4ft 10in), the cable provides PTT, ALC, CI-V frequency control and remote amplifier power control through a single purpose-designed cable assembly.

The cable incorporates a DB15 male plug for connection to the SPE Expert amplifier's CAT socket, a 13-pin DIN plug for the Icom transceiver's ACC socket and a 3.5mm mono TS jack plug for the radio's CI-V / REMOTE connection.

Control Functions

PTT Control – Allows the SPE Expert amplifier to switch between transmit and receive in conjunction with the connected Icom transceiver.

ALC Control – Allows automatic control of the transceiver's drive level when the amplifier reaches the required output.

CI-V Frequency Control – Allows the SPE Expert amplifier to determine the exact operating frequency of the connected Icom transceiver. The amplifier can then automatically select the appropriate band and, where an ATU is fitted, recall the relevant stored tuner setting.

Remote On/Off – Allows compatible installations to switch the amplifier on with the transceiver and power the amplifier down when the radio is switched off.

Compatible SPE Expert Amplifiers

  • SPE Expert 1K-FA
  • SPE Expert 1.3K-FA
  • SPE Expert 1.5K-FA
  • SPE Expert 2K-FA

Compatible Icom Transceivers

Suitable for compatible Icom transceivers including:

  • Icom IC-703
  • Icom IC-706
  • Icom IC-718
  • Icom IC-7000
  • Icom IC-7100
  • Icom IC-7300
  • Icom IC-7410

Please check the connections and compatibility of your particular transceiver before ordering.

Connections & Specifications

  • Brand: Radioworld
  • Product Type: SPE Expert / Icom CI-V control cable
  • Amplifier Connection: DB15 male
  • Radio ACC Connection: 13-pin DIN
  • CI-V Connection: 3.5mm mono TS jack
  • Cable: High-quality screened/shielded cable
  • Length: Approx. 1.5m / 4ft 10in
  • Control: Icom CI-V
  • Functions: PTT, ALC, CI-V frequency control and remote power control

Important Setup Information

This cable uses Icom CI-V control.

The appropriate CI-V settings may need to be configured within your Icom transceiver's menu. Please consult the operating manuals for your transceiver and SPE Expert amplifier when setting up the system.
