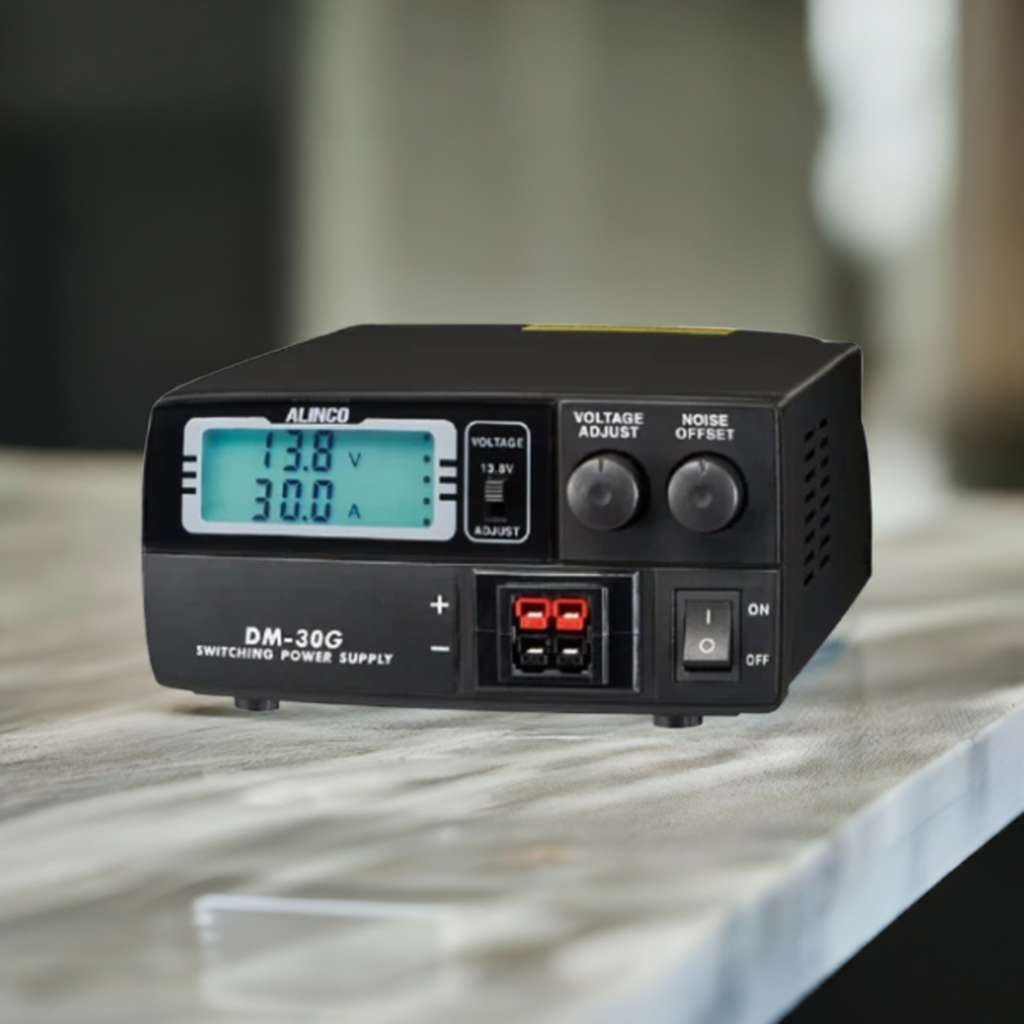

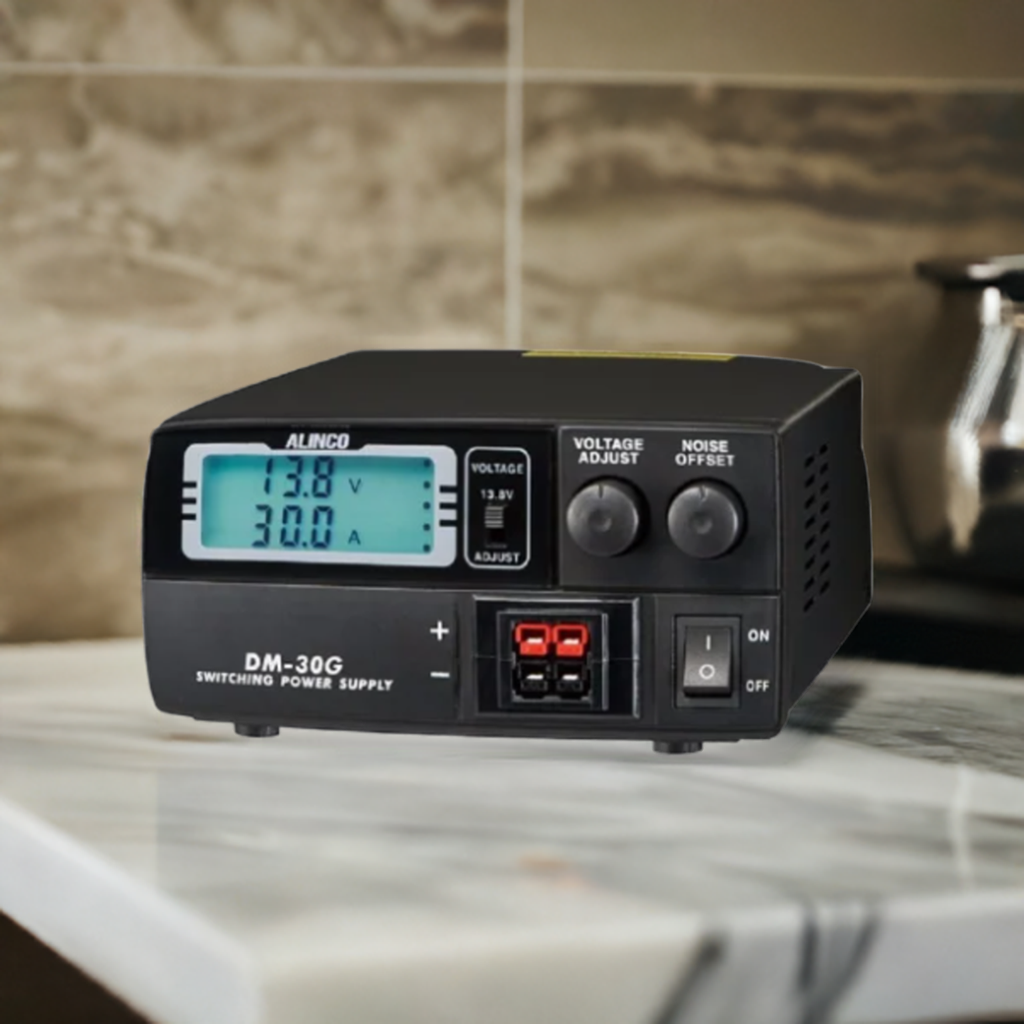

ALINCO DM-30G (20 AMP) SWITCH MODE POWER SUPPLY
Click the image to enlarge

Alinco Electronics

ALINCO DM-30G (20 AMP) SWITCH MODE POWER SUPPLY

£0.00
(£0.00 exc. VAT)
£109.99
(£91.66 exc. VAT)
Fast uk delivery
Worldwide delivery
Out of Stock
Qty:
0 Reward points
Product code: 25-152
Download a pdf document for ALINCO DM-30G (20 AMP) SWITCH MODE POWER SUPPLY

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£109.99
12 Months 14.9% APR
£11.00
£9.48
£124.74
£109.99
18 Months 14.9% APR
£11.00
£6.32
£124.74
£109.99
24 Months 14.9% APR
£11.00
£4.74
£124.74
£109.99
36 Months 14.9% APR
£11.00
£3.16
£124.74
£109.99
48 Months 14.9% APR
£11.00
£2.37
£124.74
£109.99
12 Months 19.5% APR
£11.00
£9.86
£129.30
£109.99
18 Months 19.5% APR
£11.00
£6.57
£129.30
£109.99
24 Months 19.5% APR
£11.00
£4.93
£129.30
£109.99
36 Months 19.5% APR
£11.00
£3.29
£129.30
£109.99
48 Months 19.5% APR
£11.00
£2.46
£129.30

30A (peak) 13.8V DC switch mode power supply. Compared to the similar DM-30-E model, this version has Anderson pole connections.

Features:

Switching mode with 4 DC outputs

HF fixed

Short-circuit proof

Clear digital display for volt and amps

With programmable voltage preselection unintentional voltage changes are made impossible

2 terminals (max. 5A)

Main connection terminals on the back (max 30A)

Technical Data:


Operating voltage: 230VAC / 50Hz

Continuous load: 20 amperes

Peak load: 30 Amp (short-term)

Output Voltage: 9-15V DC infinitely adjustable / 13.8V DC fixed

Ripple & Noise / Ripple & Noise: Less than 80mV at rated load

Ventilation: temperature controlled fan

Lighted digital indicator for Volt / Amp

Fixed voltage switch 13.8VDC

Control for controlling disturbances of the clock circuit

Dimensions WxHxD in mm: 155 x 75 x 205 mm

Weight: 1.5kg
