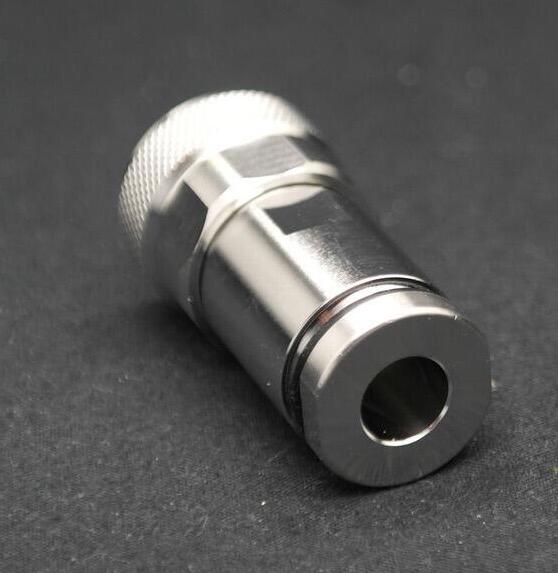

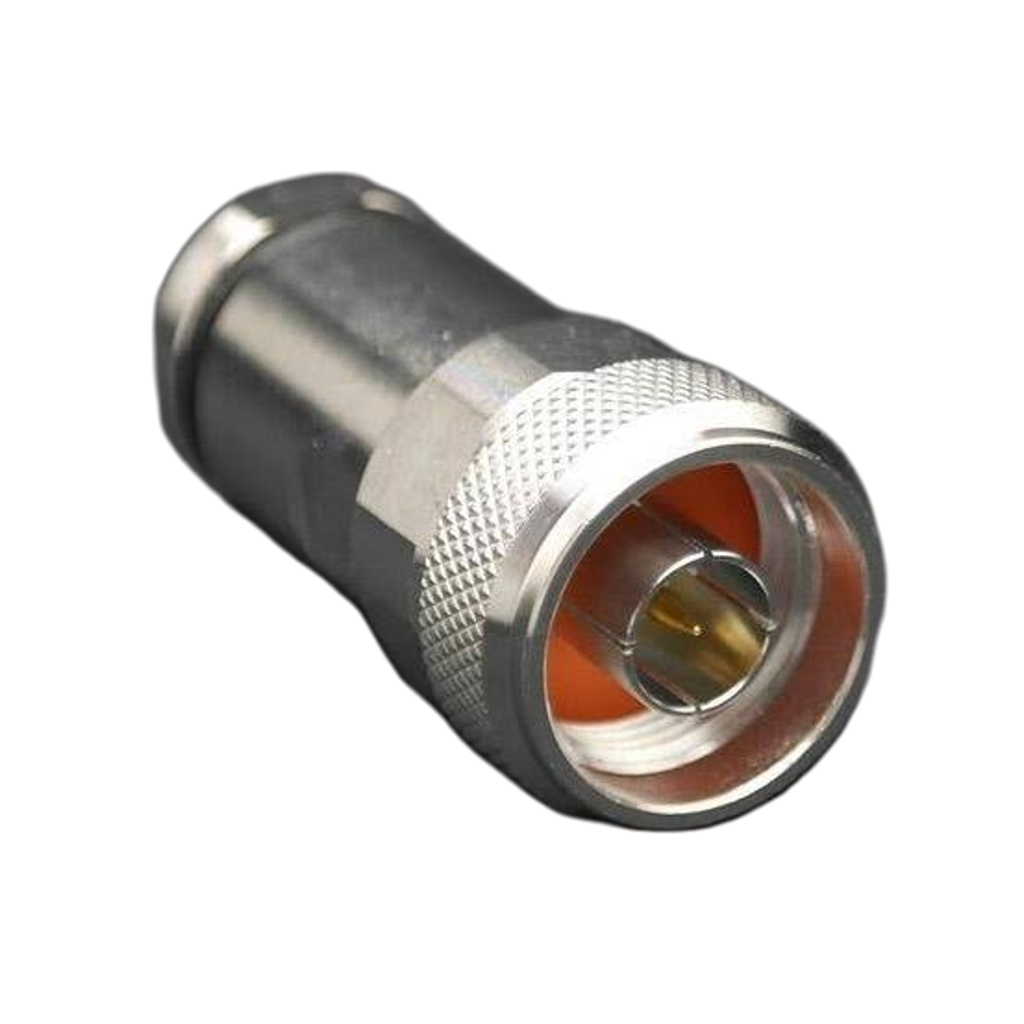

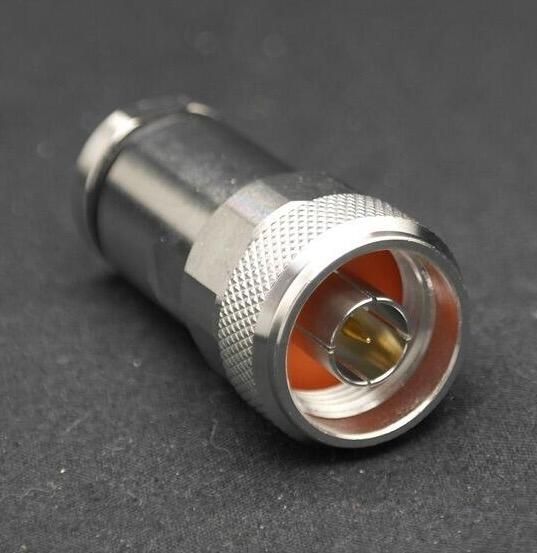

The CN7-M N-Type Male Connector is a high-quality 50Ω coax plug designed for use with 7.3mm diameter coaxial cables, including the I0JXX Flexy 7 and Messi & Paoloni Ultraflex 7.

Engineered for professional RF performance, the CN7-M delivers low-loss connections, exceptional impedance stability, and reliable operation across the HF, VHF, and UHF bands. Its precision-machined N-Type interface provides superior weather sealing and mechanical strength, making it ideal for both base station and field installations.

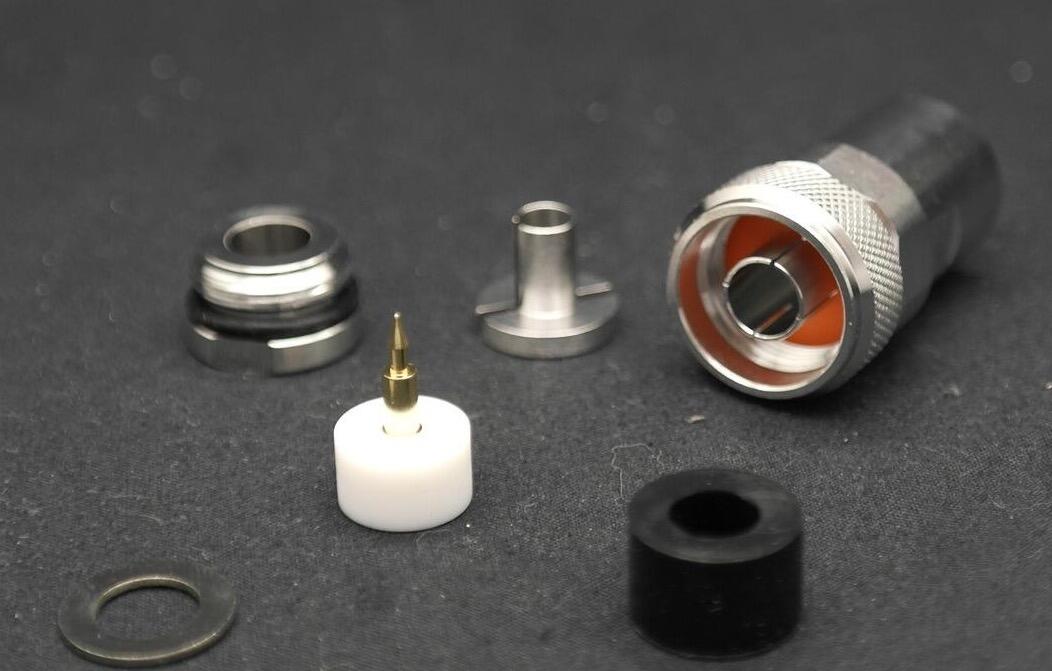

Constructed from nickel-plated brass with a PTFE dielectric insulator and a gold-plated center pin, this connector ensures high conductivity and minimal signal reflection. The design allows for secure, stable termination — ensuring long service life even in demanding outdoor conditions.

Perfect for amateur radio, SDR setups, test benches, and RF instrumentation, this connector provides a professional-grade termination solution for any 7.3mm coax cable.

Key Features

• High-quality N-Type male connector for 7.3mm 50Ω coax cables

• Compatible with:

  • I0JXX Flexy 7 Coaxial Cable

  • Messi & Paoloni Ultraflex 7

• Frequency range: DC – 6 GHz (HF, VHF, UHF, SHF)

• Impedance: 50Ω

• Precision N-Type interface for secure, low-loss RF connection

• Nickel-plated brass body with gold-plated centre pin

• PTFE (Teflon) dielectric for high-frequency stability

• Weather-sealed design suitable for indoor or outdoor use

• Ideal for amateur radio stations, SDR systems, and RF test applications

• Solder connection for professional termination

Technical Specifications
