Moonraker fz400cu 100m drum low loss flexible cable - lmr400.

Moonraker FZ400CU 100M Drum Low Loss Flexible Cable (LMR400 Replacement)


Trustpilot

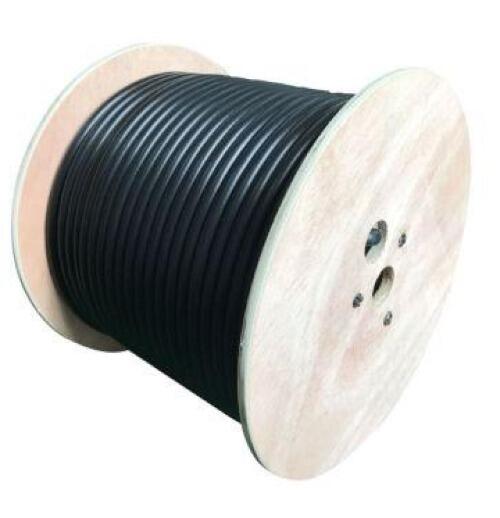

The Moonraker FZ400CU is a professional‑grade, ultra‑flexible low‑loss coaxial cable supplied on a 100‑metre drum. Designed as a high‑performance LMR‑400 replacement, it delivers exceptional RF efficiency for video, RF signal, and broadcast applications. Engineered for “super‑low” loss, this cable provides outstanding performance across HF, VHF, UHF, and microwave frequencies.

Its construction features a precision-copper inner conductor, a PE foam dielectric, and robust shielding for excellent impedance stability, low capacitance, and high insulation resistance. The FZ400CU offers excellent return loss figures and impressive insertion loss performance, making it ideal for demanding amateur radio, commercial, and professional RF installations.

Suitable for fixed or mobile use, the cable maintains flexibility while ensuring durability in a wide range of environments.


TECH SPEC

Physical

  • Diameter: 10.29 ± 0.20 mm

  • Minimum sheath thickness: 1.0 mm

  • Copper inner conductor diameter: 2.74 ± 0.01 mm

  • Foam PE dielectric diameter: 7.24 ± 0.15 mm

Electrical

  • Impedance @ 200MHz: 50 ± 2 Ω

  • Capacitance: 54 ± 3 pF/m

  • Dielectric withstand: >500V

  • Insulation resistance @ 20°C: >5000 MΩ·km

  • Inner conductor resistance: <3.0 Ω/km

  • Outer conductor resistance: <9.8 Ω/km

  • Velocity factor: 85%

Return Loss

  • 30–1000MHz: >20dB

  • 1000–3000MHz: >18dB

Temperature Range

  • –10°C to +80°C

Minimum Bending Radius

  • Fixed installation: 30mm

  • Mobile installation: 60mm

Insertion Loss (per 100m)

  • 10MHz: 1.61 dB

  • 100MHz: 4.50 dB

  • 400MHz: 8.40 dB

  • 1000MHz: 14.40 dB

  • 2000MHz: 19.68 dB

  • 3000MHz: 26.50 dB.
