CN10‑M 10.3mm N‑Type male coax plug for Flexy 10 – Radioworld UK
CN10‑M 10.3mm N‑Type male coax plug for Flexy 10 – Radioworld UK
N‑Type plug for 10.3mm Ultraflex 10 coaxial cable – Radioworld UK
High‑quality CN10‑M N‑Type connector for 10.3mm coax – Radioworld UK
Male N‑Type coax plug compatible with Flexy 10 and Ultraflex 10 – Radioworld UK
Click the image to enlarge
CN10‑M 10.3mm N‑Type male coax plug for Flexy 10 – Radioworld UK
N‑Type plug for 10.3mm Ultraflex 10 coaxial cable – Radioworld UK
High‑quality CN10‑M N‑Type connector for 10.3mm coax – Radioworld UK
Male N‑Type coax plug compatible with Flexy 10 and Ultraflex 10 – Radioworld UK

I0JXX Antennas – Coaxial Cables & Accessories.

CN10-M 10.3mm N-Type Coax Plug – Male N Connector for Flexy 10 & Ultraflex 10 Coaxial Cable | Radioworld UK

£0.00
(£0.00 exc. VAT)
£6.49
(£5.41 exc. VAT)
In Stock
Qty:
ADD TO WISHLIST
6 Reward points
Product code: CN10M
Download a pdf document for CN10-M 10.3mm N-Type Coax Plug – Male N Connector for Flexy 10 & Ultraflex 10 Coaxial Cable | Radioworld UK

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£6.49
12 Months 14.9% APR
£0.65
£0.56
£7.36
£6.49
18 Months 14.9% APR
£0.65
£0.37
£7.36
£6.49
24 Months 14.9% APR
£0.65
£0.28
£7.36
£6.49
36 Months 14.9% APR
£0.65
£0.19
£7.36
£6.49
48 Months 14.9% APR
£0.65
£0.14
£7.36
£6.49
12 Months 19.5% APR
£0.65
£0.58
£7.63
£6.49
18 Months 19.5% APR
£0.65
£0.39
£7.63
£6.49
24 Months 19.5% APR
£0.65
£0.29
£7.63
£6.49
36 Months 19.5% APR
£0.65
£0.19
£7.63
£6.49
48 Months 19.5% APR
£0.65
£0.15
£7.63

Click here to recommend this product to a friend

Recommend a friend

CN10‑M 10.3mm N‑Type male coax plug for Flexy 10 – Radioworld UK

CN10-M 10.3mm N-Type Coax Plug – Male N Connector for Flexy 10 & Ultraflex 10 Coaxial Cable | Radioworld UK


Trustpilot

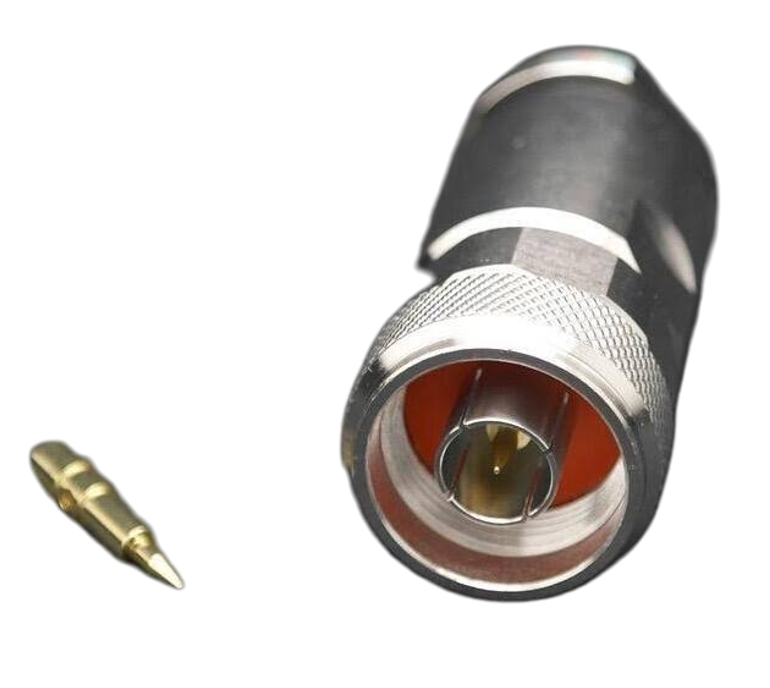

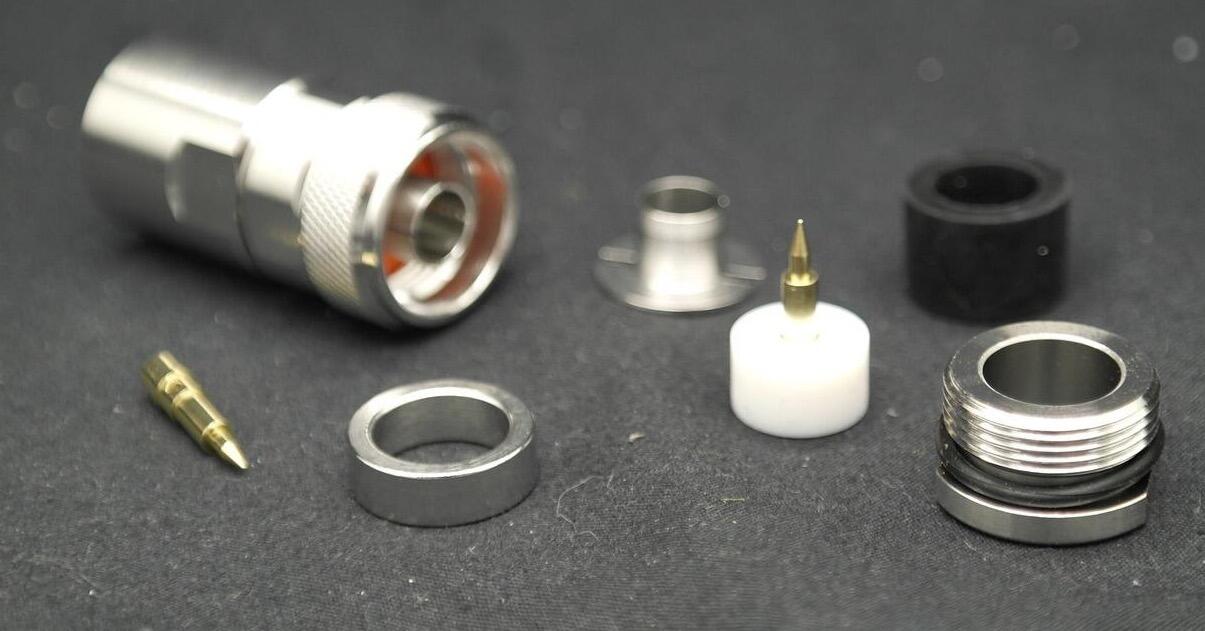

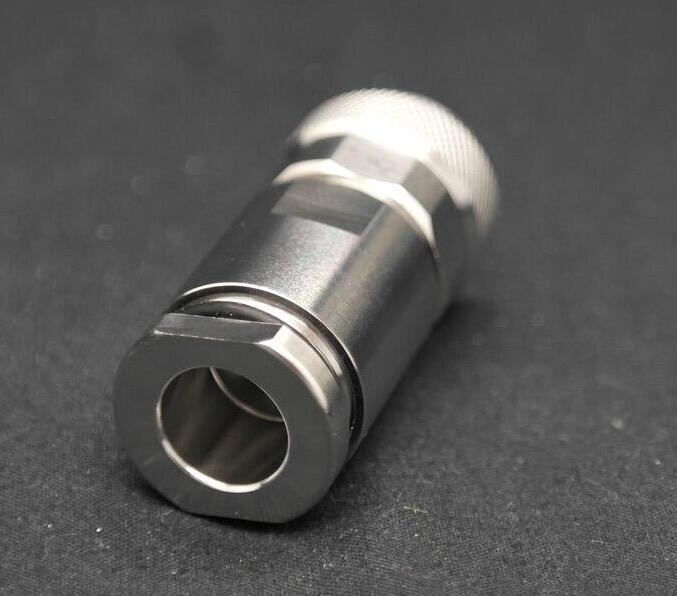

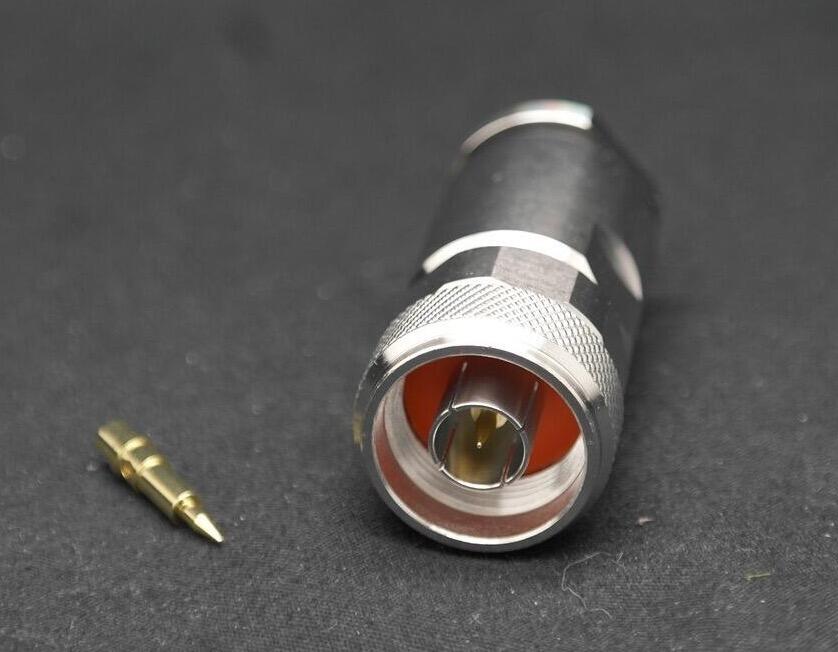

The CN10-M N-Type Male Connector is a professional-grade 50Ω RF connector designed for 10.3mm coaxial cables, including the I0JXX Flexy 10 and Messi & Paoloni Ultraflex 10.

Engineered for low-loss, high-frequency performance, the CN10-M delivers stable impedance and minimal signal reflection across the HF, VHF, UHF, and SHF bands. With its precision-machined N-Type interface, this connector provides superior RF sealing, corrosion resistance, and mechanical strength, making it ideal for both indoor and outdoor installations.

Constructed from nickel-plated brass with a gold-plated centre pin and PTFE dielectric, this connector offers reliable RF performance up to 6 GHz, ensuring efficient power transfer even in demanding applications. The solder-type design provides a secure, professional termination for 10.3mm cables.

Perfect for amateur radio stations, SDR transceivers, linear amplifiers, antenna systems, and RF lab setups, the CN10-M delivers professional-grade connectivity with long-lasting durability.

Key Features

  • High-quality N-Type male connector for 10.3mm 50Ω coaxial cable

  • Compatible with:

    • I0JXX Flexy 10 Coaxial Cable

    • Messi & Paoloni Ultraflex 10 Coaxial Cable

  • Frequency range: DC – 6 GHz (HF/VHF/UHF/SHF)

  • Impedance: 50Ω

  • Precision-machined N-Type interface – low VSWR, consistent impedance

  • Nickel-plated brass body – corrosion-resistant and rugged

  • Gold-plated centre pin – high conductivity and low loss

  • PTFE (Teflon) dielectric – thermally stable and RF-optimised

  • Weatherproof design – suitable for outdoor and base installations

  • Solder termination for secure, professional assembly

  • Ideal for amateur radio, SDR, and professional RF systems

Technical Specifications

SpecificationDetails
ModelCN10-M
TypeN-Type Male (Plug)
Cable Compatibility10.3mm 50Ω coaxial cables
Compatible CablesI0JXX Flexy 10, Messi & Paoloni Ultraflex 10
Frequency RangeDC – 6 GHz
Impedance50 Ω
Body MaterialNickel-plated brass
Centre PinGold-plated brass
DielectricPTFE (Teflon)
Connection TypeSolder termination
VSWR< 1.15:1 (up to 3 GHz)
Operating Temperature–55°C to +155°C
Waterproof RatingIP67 (when properly installed)
ManufacturerCUHFM Connectors, Italy
ApplicationsHF/VHF/UHF/SHF systems, SDR, RF test equipment, and base stations
