Cushcraft AR-270 Dual-Band Vertical Antenna – 2m & 70cm
Click the image to enlarge

Cushcraft Antennas – High-Performance HF, VHF & UHF Solutions

Cushcraft AR-270 Dual-Band Vertical Antenna – 2m & 70cm

£0.00
(£0.00 exc. VAT)
£219.95
(£183.29 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
219 Reward points
Product code: AR-270
Download a pdf document for Cushcraft AR-270 Dual-Band Vertical Antenna – 2m & 70cm

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£219.95
12 Months 14.9% APR
£21.99
£18.95
£249.44
£219.95
18 Months 14.9% APR
£21.99
£12.64
£249.44
£219.95
24 Months 14.9% APR
£21.99
£9.48
£249.44
£219.95
36 Months 14.9% APR
£21.99
£6.32
£249.44
£219.95
48 Months 14.9% APR
£21.99
£4.74
£249.44
£219.95
12 Months 19.5% APR
£21.99
£19.71
£258.55
£219.95
18 Months 19.5% APR
£21.99
£13.14
£258.55
£219.95
24 Months 19.5% APR
£21.99
£9.86
£258.55
£219.95
36 Months 19.5% APR
£21.99
£6.57
£258.55
£219.95
48 Months 19.5% APR
£21.99
£4.93
£258.55

Click here to recommend this product to a friend

Recommend a friend

Cushcraft AR-270 Dual-Band Vertical Antenna – 2m & 70cm

Cushcraft AR-270 Dual-Band Vertical Antenna – 2m & 70cm


Trustpilot

Cushcraft AR-270 Dual-Band Vertical Antenna – 2m & 70cm

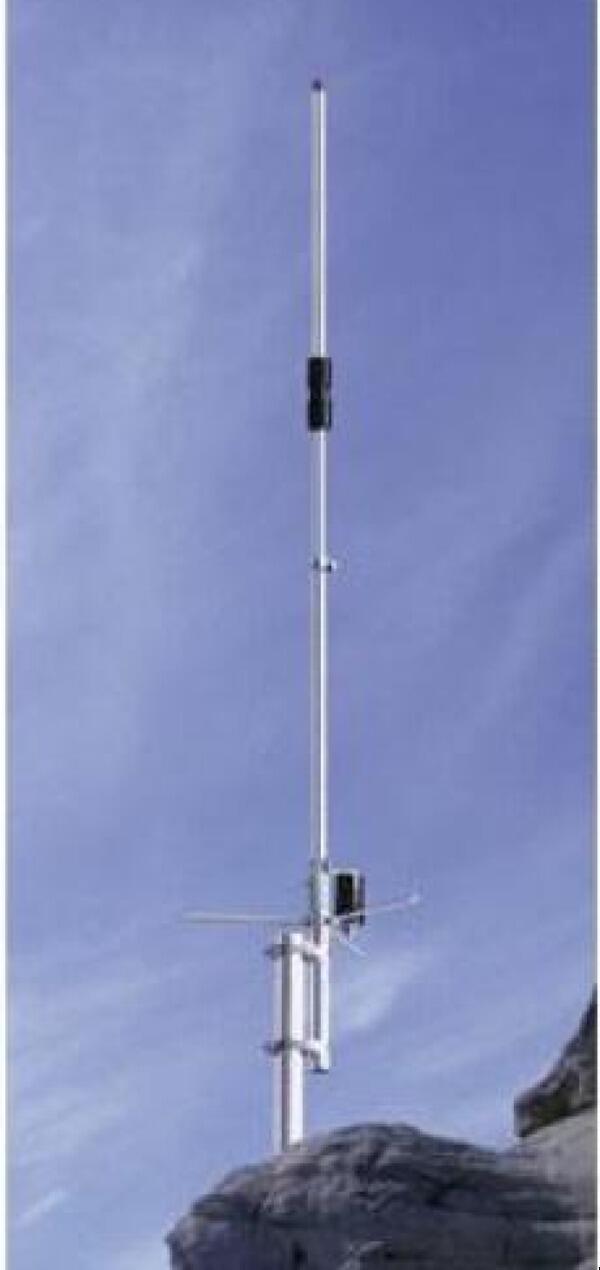

Overview The AR-270 from Cushcraft is a compact, high-performance Ringo-style vertical antenna optimized for amateur radio operators who need reliable coverage on both VHF (2m) and UHF (70cm) bands. It features collinear elements for enhanced gain and a low angle of radiation, making it ideal for long-range terrestrial communication and repeater access.

Technical Specifications

FeatureValue
Frequency Range144–148 MHz / 430–450 MHz
Gain5.5 dBi (2m) / 7.5 dBi (70cm)
VSWR Bandwidth>4 MHz (2m) / >15 MHz (70cm)
Power Handling250W FM (both bands)
Height7.7 ft (2.3 m)
Connector TypeUHF (SO-239)
Mast Compatibility1.25–2 inches (32–51 mm)
Wind Load Area0.47 sq. ft
Weight0.9 kg (2 lbs)


Design Highlights

  • Two 5/8λ collinear elements on 2m

  • Four 5/8λ collinear elements on 70cm

  • Broadbanded for low SWR across both bands

  • Computer-optimized element spacing

  • Lightweight and easy to mount

Applications

  • Fixed base station setups

  • Repeater access and simplex operation

  • Emergency communications

  • Club installations and contesting

Availability The Cushcraft AR-270 is available from Radioworld UK, with fast shipping and expert support for amateur radio installations
