DAIWA CS-201 GII 2 Way Coaxial Switch With Low Loss N type Sockets 1
Click the image to enlarge

Daiwa swr-power meters

DAIWA CS-201 GII 2 Way Coaxial Switch With Low Loss N type Sockets

£0.00
(£0.00 exc. VAT)
£39.95
(£33.29 exc. VAT)
Fast uk delivery
Worldwide delivery
Qty:
ADD TO WISHLIST
0 Reward points
Product code: CS201GII
Download a pdf document for DAIWA CS-201 GII 2 Way Coaxial Switch With Low Loss N type Sockets

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£39.95
12 Months 14.9% APR
£3.99
£3.44
£45.31
£39.95
18 Months 14.9% APR
£3.99
£2.30
£45.31
£39.95
24 Months 14.9% APR
£3.99
£1.72
£45.31
£39.95
36 Months 14.9% APR
£3.99
£1.15
£45.31
£39.95
48 Months 14.9% APR
£3.99
£0.86
£45.31
£39.95
12 Months 19.5% APR
£3.99
£3.58
£46.96
£39.95
18 Months 19.5% APR
£3.99
£2.39
£46.96
£39.95
24 Months 19.5% APR
£3.99
£1.79
£46.96
£39.95
36 Months 19.5% APR
£3.99
£1.19
£46.96
£39.95
48 Months 19.5% APR
£3.99
£0.90
£46.96

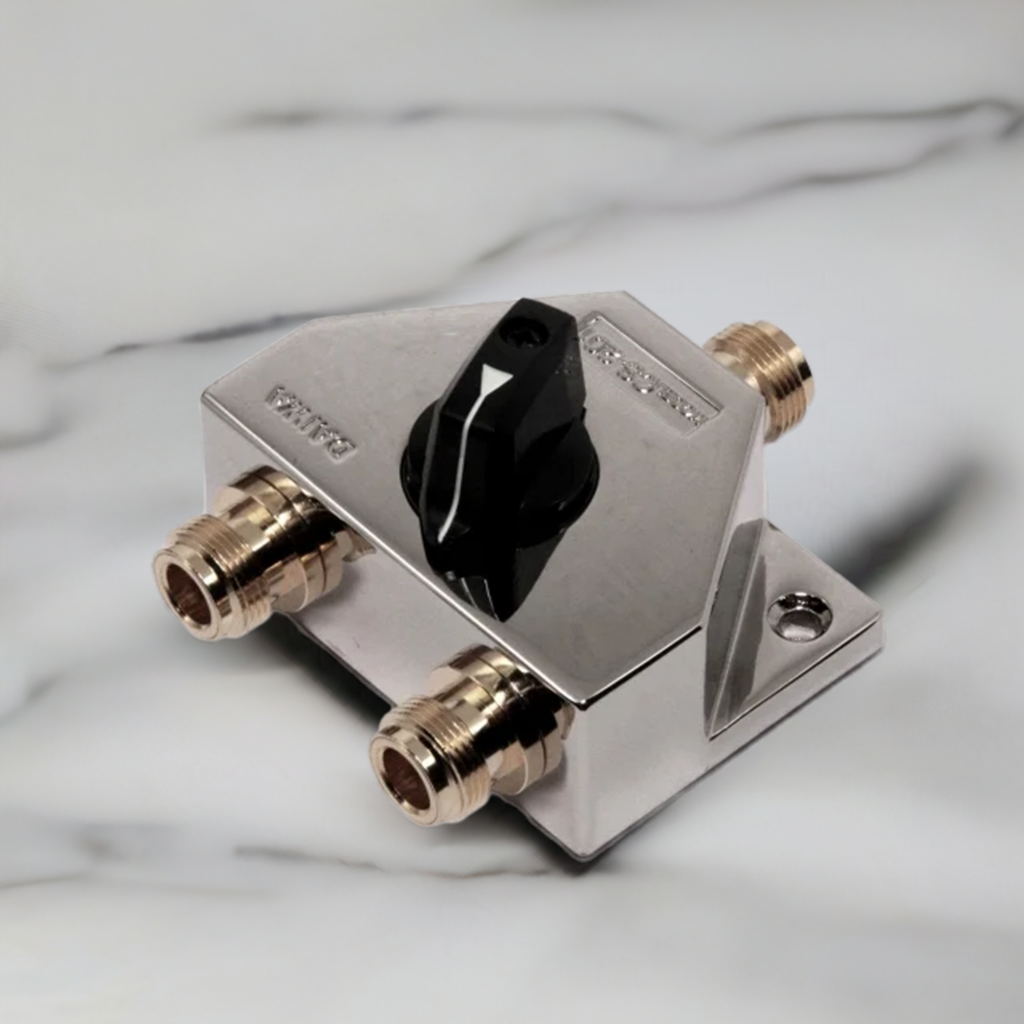

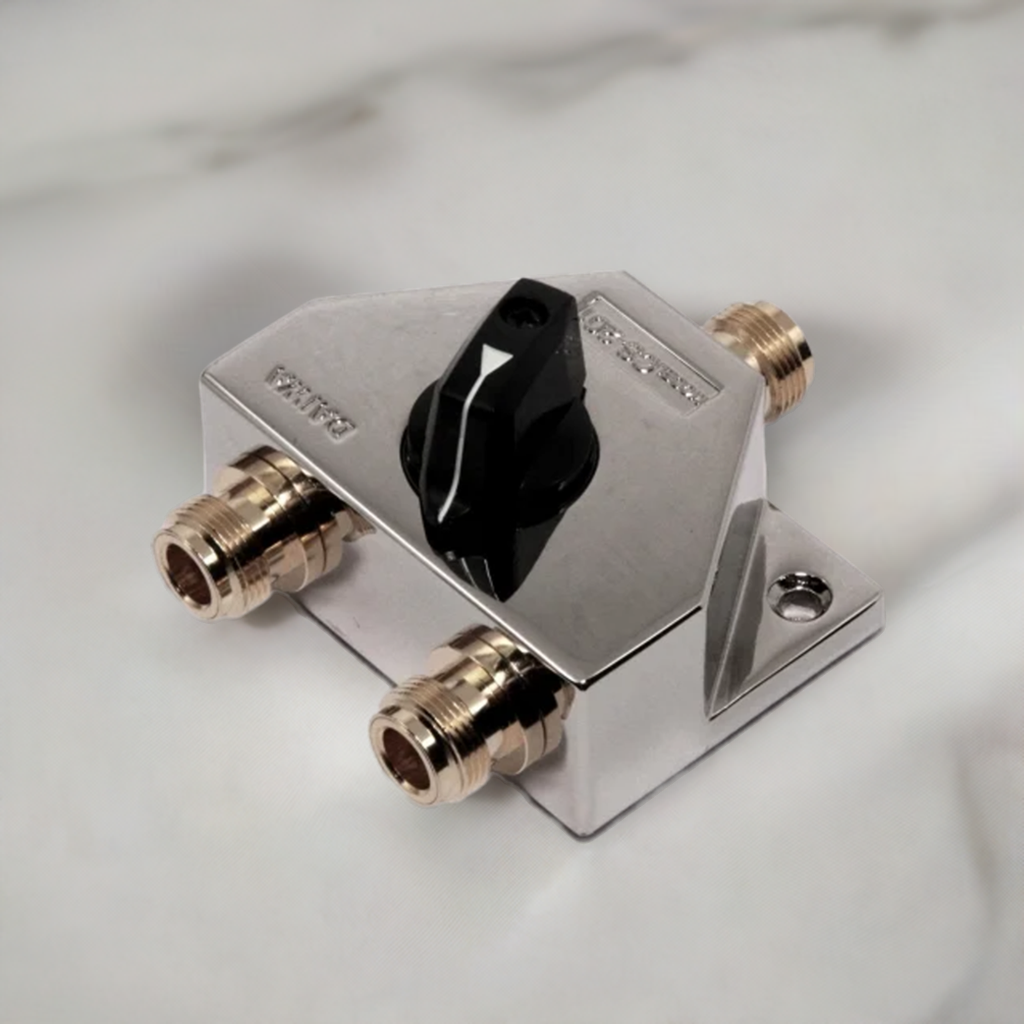

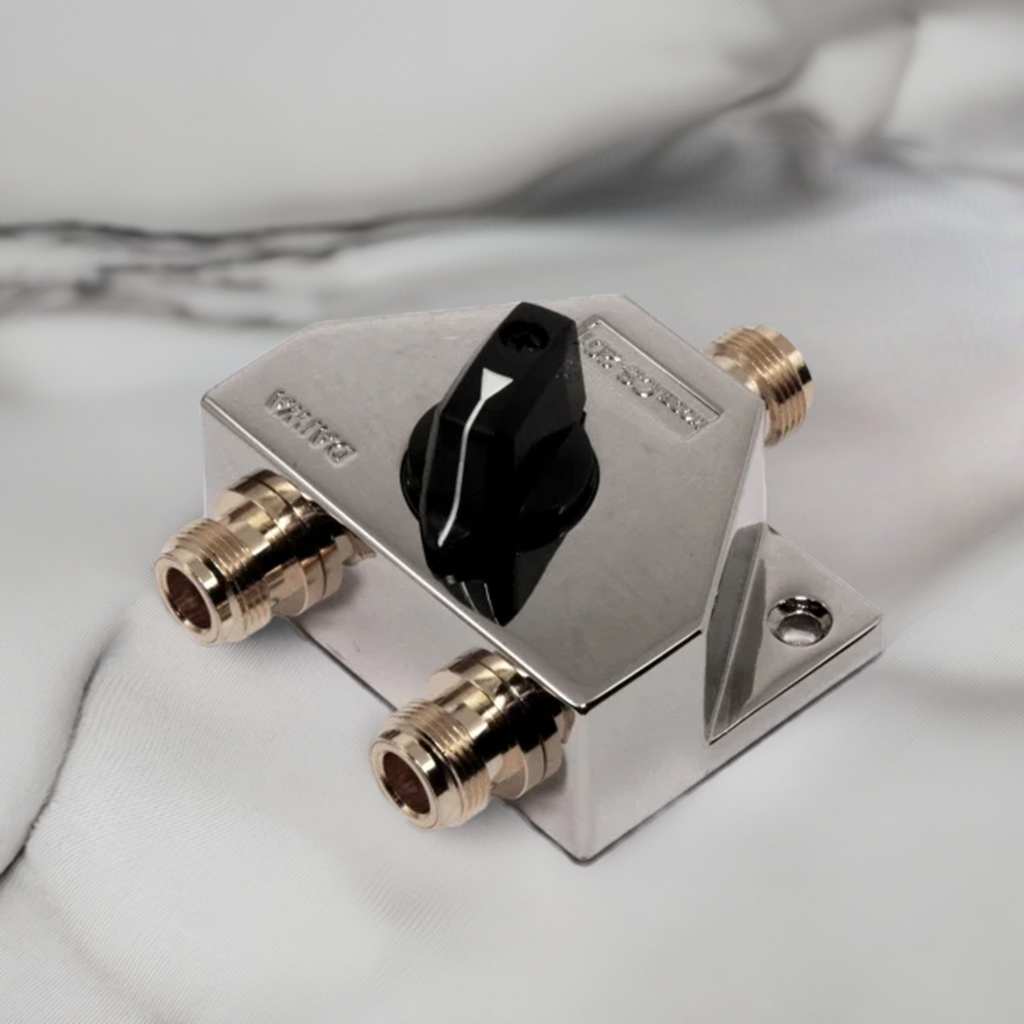

DAIWA CS-201 GII 2 Way Coaxial Switch With Low Loss N type Sockets, Brand new professionally engineered cavity construction 2 way switch with very high quality low loss N type sockets, and smart chrome finish. Daiwa CS-201 GII Frequency range DC~ 1.3Ghz Power rating ( DC~ 30Mhz) 1.5kw Power rating ( 30~150Mhz) 1kw Power rating (150~600Mhz) 500 watts Power rating (500~1000Mhz) 250 watts Power rating ( 1.0~2.0Ghz) 150 watts Insertion loss (DC~1000Mhz) 0.12dBi Insertion loss ( 1.0~2.0Ghz) 1.2dBi Impedance 50 ohms VSWR 1 1:3 Connectors N type Weight 0.43kg
