Diamond D-130M Discone Antenna Kit – 25–1300MHz Wideband RX, SO-239 Connector, 15m RG58A/U Cable
The Diamond D-130M Discone Antenna Kit is a wideband receiving antenna designed for 25–1300 MHz, ideal for scanners, SDRs, and multi-band monitoring. Supplied with a 15m RG58A/U coaxial cable and 2× PL-239 plugs, it offers a plug-and-play solution for amateur and professional users.
Built with stainless steel elements and a weather-resistant design, the D-130M ensures long-term outdoor durability. Its omnidirectional vertical polarisation supports airband, marine, amateur, public service, and commercial frequencies.

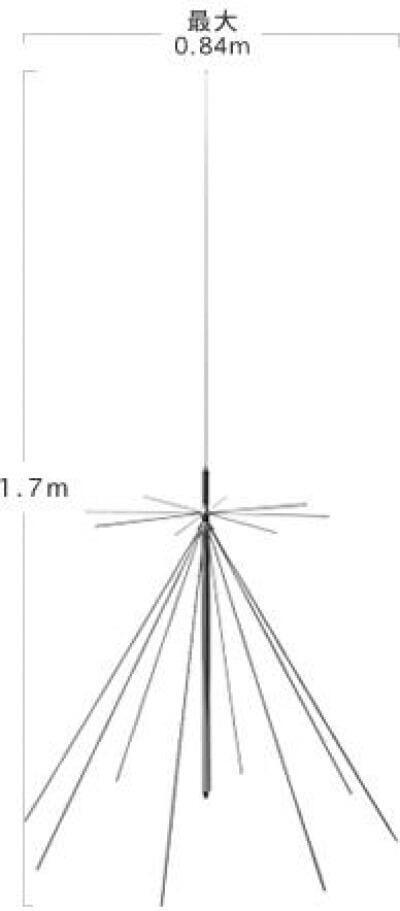

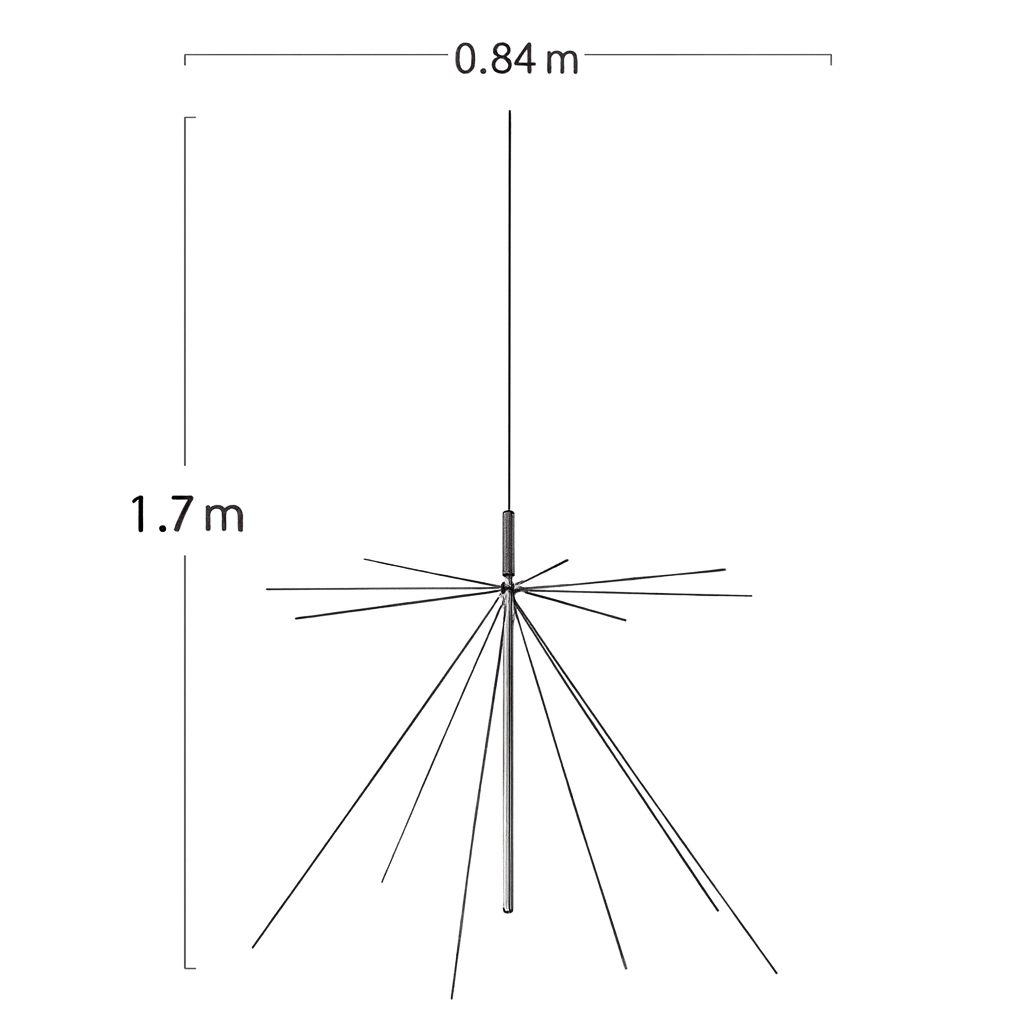

The antenna structure features a vertical height of 1.7m and a maximum radial spread of 0.84m, and fits mast diameters of 25–50mm. Power handling is limited to 20W FM at 50 MHz and 100W FM at 144 MHz and above, making it suitable for light transmit use when required.
Specifications
Frequency Range: 25–1300 MHz (receive only)
Impedance: 50 Ohms
Height: 1.7 m
Maximum Radius: 42 cm
Weight: 1 kg
Mounting: Fits mast diameters 25–50 mm
Connector Type: SO-239 (UHF Female)
Cable Included: 15m RG58A/U with 2× PL-239 plugs
Polarisation: Omnidirectional vertical
Power Handling:
50 MHz: 20W FM
144 MHz+: 100W FM.
