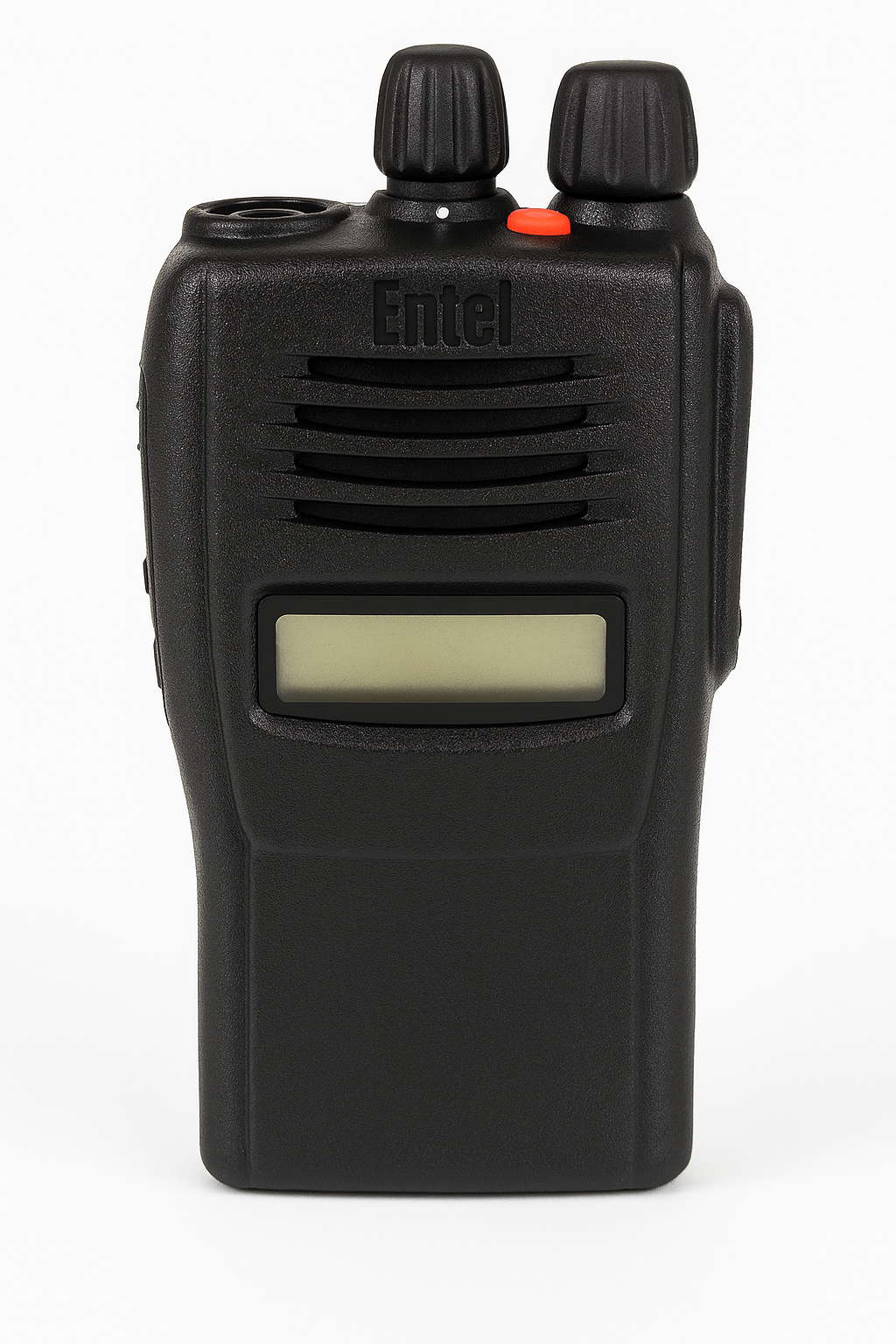

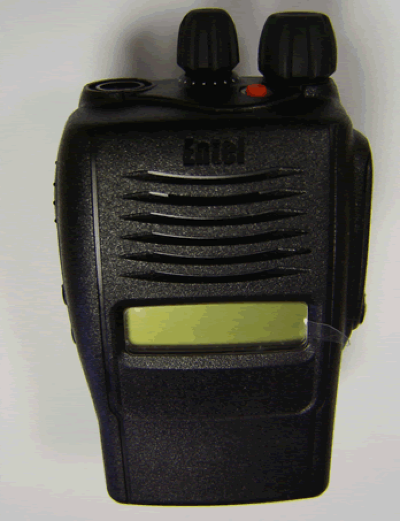

Entekl HX483 handheld transceiver with LCD screen
For those who want the benefits of 5-tone selective calling without the need for more than 16-channels or an LCD screen, the compact entry level selcall HX400 provides exactly what they require. From the compact ergonomic design that fits comfortably in your hand, to the exceptionally loud audio that enables you to communicate in the noisiest environments, this radio, positioned as an entry level 5-tone model, easily outclasses its competition.
With 16 channels, this model, like all our HX series portables, is built to meet the MIL-STD 810C/D/E/F rating for tough enduring performance and in addition has a superior IP55 splash proof construction.
Utilising the latest intelligent Lithium-Ion battery technology with battery cycle count* Simple to use, yet highly specified, this model, offering variable point voice scrambler, lone worker, personal attack alarm, channel scanning, shunting mode and whisper mode, together with optional man down and Bluetooth facilities, will exceed the expectations of even the most experienced radio users., which means that they are dust protected and resistant to water ingress (i.e. splash proof). For most day to day applications, this level of protection is perfectly adequate, however, where full protection against immersion in water is required, users should consider our IP68 rated HT Series 2.0 radios.
Environmental protection to IP55
The practical HX Series 2.0 radios enjoy an IP55 rated construction, which means that they are dust protected and resistant to water ingress (i.e. splash proof). For most day to day applications, this level of protection is perfectly adequate, however, where full protection against immersion in water is required, users should consider our IP68 rated HT Series 2.0 radios.
Meeting MIL-STD 810C/D/E/F commercial grade construction for tough, enduring performance, the Entel's HT and HX series 2.0 portables conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use in the most hostile environments.
1800mAh Li-Ion battery
All Entel portables come with the latest intelligent Lithium-Ion battery technology as standard. Whichever model you choose, these batteries will count the number of completed charge cycles, which on LCD variants, if dealer enabled, can be displayed when you power-on your radio.
For your convenience it will even alert you to imminent battery life expiration. Another advantage of Lithium-Ion battery technology is the way it maximizes duty cycles, while the elimination of memory effect means there is no need to fully discharge the cells before recharging. Therefore you are assured a full duty cycle each and every time you take your radio from its charger.
Flash upgradeable to add future features
Entel proposes to continuously add/upgrade features to its range of radios. Using Flash Upgrade technology your radios can be upgraded by your Dealer at any time
Robust accessory socket
A completely redesigned accessory connector, when secured to the portable, is designed to withstand any amount of punishment from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.
Both HT and HX series portables have the facility to scan for an active channel. When an active channel is found, the radio will automatically select that channel for you. Priority scan will allow you to select one channel in the scan list that is treated as a "Priority". It will be checked more frequently than all other channels in the list.
HX483 - UHF 400-470MHz
Channels 16 Channels
Channel Spacing 12.5 kHz / 25 kHz
Communication Method Simplex / semi duplex
Antenna Impedance 50 ohm
Antenna Whip / stubby
Battery Type 1800 mAh Li-Ion battery pack
Power Supply Voltage 7.4V DC
Current Drain (nominal) TBA
Duty Cycle (5/5/90) TBA
Microphone Internal condenser microphone
Operating Temperature -20° to +55°
Size (mm) 61(W) x 100(H) x 31(D)
Weight 274g with battery and aerial
Power Output HIGH – 5W, LOW - 1W
Oscillator Method PLL
Frequency Stability < ±0.00025% (±2PPM)
Maximum Deviation ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
Audio Distortion < 5% (1 kHz 60%)
Spurious Emission -68 [dBc]
Hum & Noise -40 [dB]
Receiver Type Double Super Heterodyne type
Sensitivity -0.25uV (12dB SINAD)
Frequency Stability ±0.00025%(±2PPM)
Spurious Rejection -60 dB
Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
Distortion 5% (1 kHz 60%)
Hum & Noise -40 dB
Audio Output 1W
Speaker Size 45 mm
