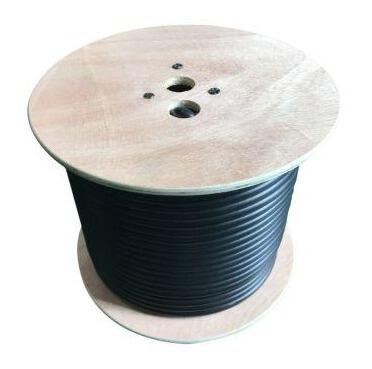

FZ400CU Ultra Flex Super Low Loss Coax 50m Drum - LMR-400 Coax Cable.
Click the image to enlarge

Moonraker radio

Fz400cu ultra flex super low loss coax 50m drum - lmr-400 coax cable.

£0.00
(£0.00 exc. VAT)
£109.96
(£91.63 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:


109 Reward points
Product code: 16-040
Download a pdf document for Fz400cu ultra flex super low loss coax 50m drum - lmr-400 coax cable.

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£109.96
12 Months 14.9% APR
£11.00
£9.48
£124.70
£109.96
18 Months 14.9% APR
£11.00
£6.32
£124.70
£109.96
24 Months 14.9% APR
£11.00
£4.74
£124.70
£109.96
36 Months 14.9% APR
£11.00
£3.16
£124.70
£109.96
48 Months 14.9% APR
£11.00
£2.37
£124.70
£109.96
12 Months 19.5% APR
£11.00
£9.85
£129.25
£109.96
18 Months 19.5% APR
£11.00
£6.57
£129.25
£109.96
24 Months 19.5% APR
£11.00
£4.93
£129.25
£109.96
36 Months 19.5% APR
£11.00
£3.28
£129.25
£109.96
48 Months 19.5% APR
£11.00
£2.46
£129.25

Click here to recommend this product to a friend

Recommend a friend

FZ400CU Ultra Flex Super Low Loss Coax 50m Drum - LMR-400 Coax Cable.

Fz400cu ultra flex super low loss coax 50m drum - lmr-400 coax cable.


The new LMR-400 coaxial cable is a professional ultra-flexible, super-loss cable designed for video RF signal and broadcast transmissions. With a diameter of 10.29mm and a minimum thickness of 1.0mm, this cable boasts a copper inner conductor diameter of 2.74mm and a dielectric foam PE diameter of 7.24mm. It offers an impedance of 50 Ohms at 200MHz and a capacitance of 54 Pf/m.

In terms of performance, the LMR-400 cable has impressive technical specifications. It can withstand temperatures ranging from -10°C to +80°C and has a minimum bending radius of 30mm for fixed laying and 60mm for mobile laying. The cable's insertion losses are noteworthy, with values such as 1.61dB/100m at 10MHz, 8.40dB/100m at 400MHz, and 26.50dB/100m at 3000MHz. Additionally, it provides excellent return loss figures, exceeding 20dB from 30MHz to 1000MHz and over 18dB from 1000MHz to 3000MHz.

The LMR-400 coaxial cable is a top choice for applications requiring minimal signal loss and high-quality transmission. Its outstanding loss performance statistics, combined with its durable construction and wide temperature range, make it a reliable option for professional video and broadcast setups.

All orders placed on this website will not be subject to VAT for customers residing in the European Union or the rest of the world. However, it is important to mention that VAT will still be applicable based on the rates set by your country upon delivery.

Our Price Match Promise means that if you find any of our Equipment at a lower advertised price elsewhere, we will match the price for you, subject to the below.

  • The product is identical to ours in brand, colour, size and model number.
  • The price must be the advertised price clearly on the competitor's online site.
  • The item must be in stock and available for immediate purchase (rather than available to order), with the authorised stockist able to complete delivery within 2-3 days.

Please fill out the form below. The details will be used to help us with your price promise request.

Your Details

Competitor Product

Weblink showing other retailers product at a reduced price, in stock and ready for dispatch

Product Details
