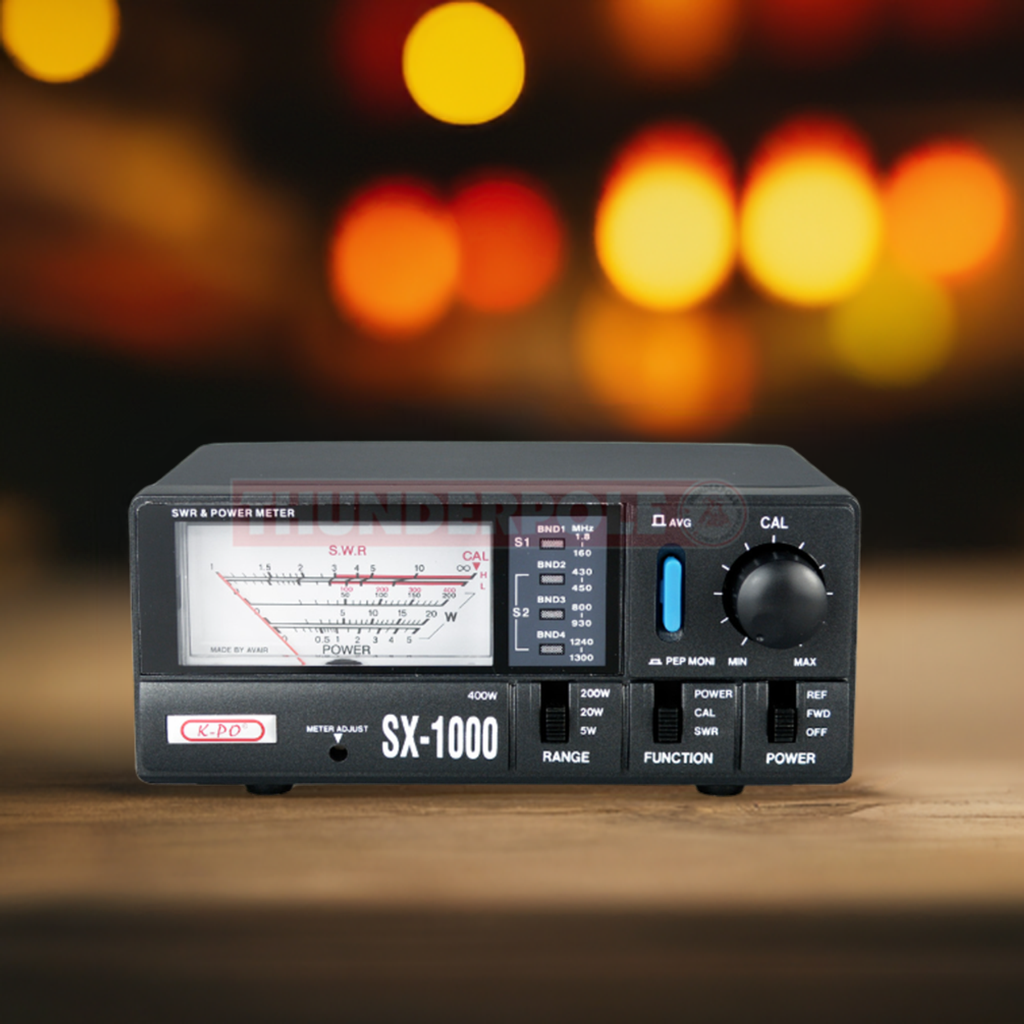

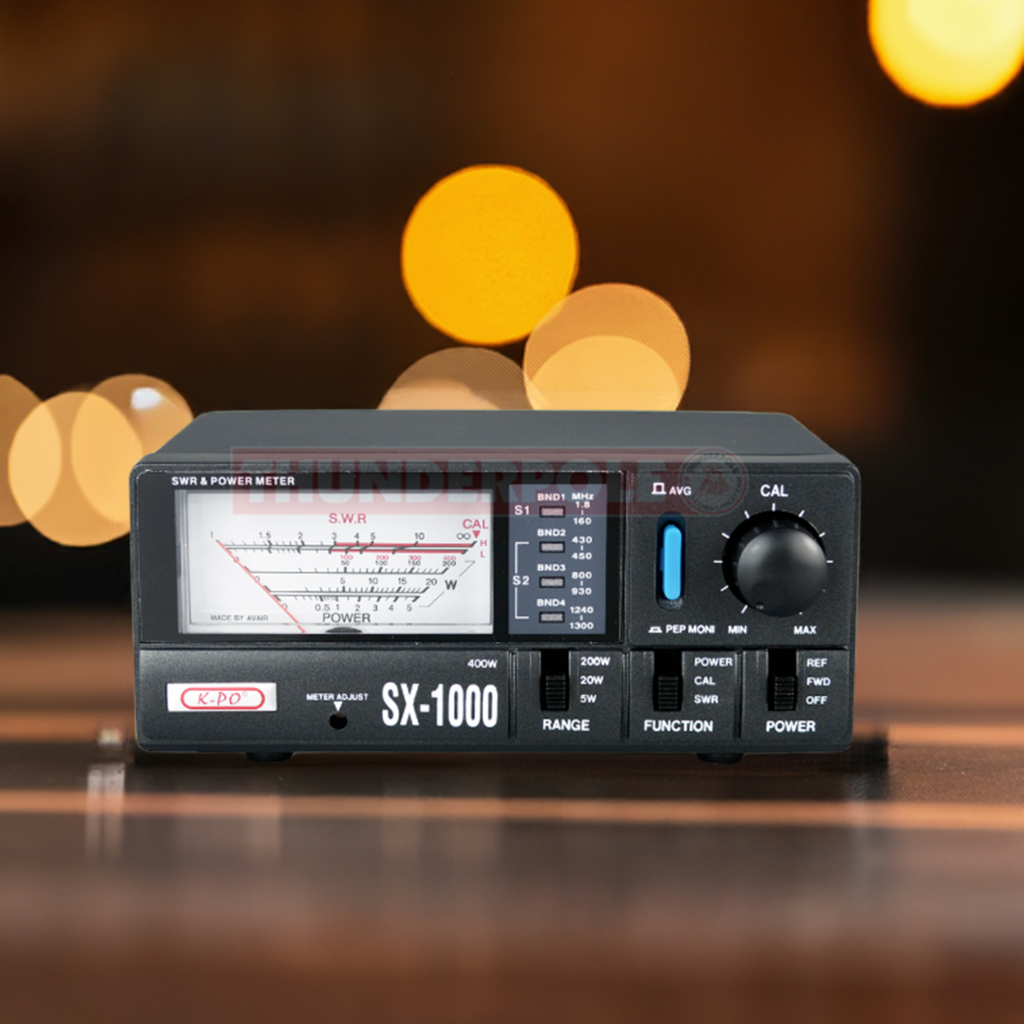

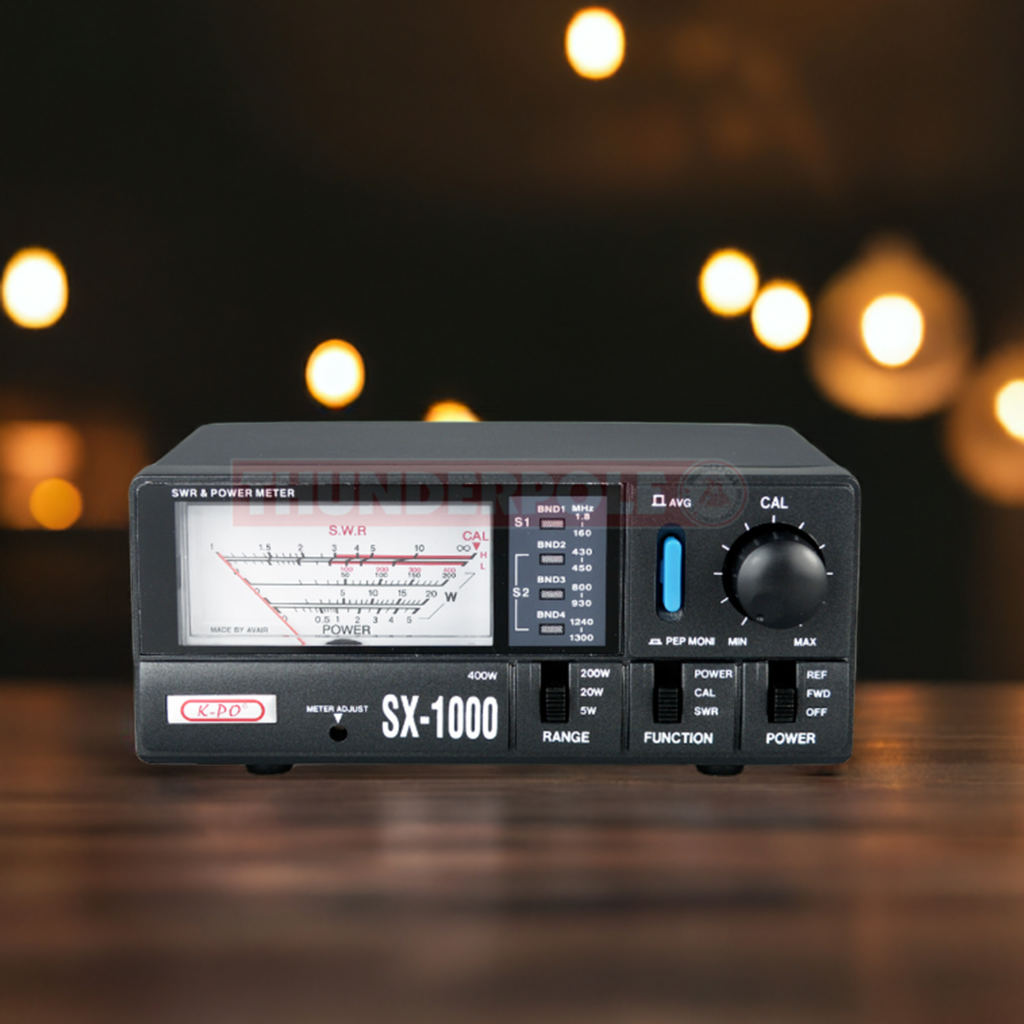

The K‑PO SX‑1000 is a high‑performance SWR and power meter designed for operators who need accurate measurements across a wide range of amateur radio bands. With dual sensors covering HF through 23cm, it provides precise readings for output power, reflected power, and SWR, making it ideal for multi‑band base station setups.

Sensor S1 covers 1.8–160MHz, supporting HF and 6m operation, while Sensor S2 spans 430–450MHz, 800–930MHz, and 1240–1300MHz, enabling reliable monitoring on 70cm, 33cm, and 23cm bands. The meter supports selectable power ranges of 5W, 20W, and 200W, ensuring accurate measurement for both low‑power and higher‑power equipment.

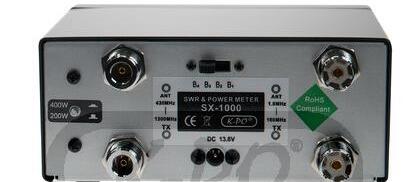

With low insertion loss, 50‑ohm impedance, and clear panel illumination via 12VDC, the SX‑1000 delivers dependable performance without compromising signal quality. PL connectors are used for S1, while S2 features N‑type connectors for optimal high‑frequency stability. Compact and robust, it fits easily into any station layout.

TECH SPECIFICATION – K‑PO SX‑1000

• Frequency Range:

  • S1: 1.8–160MHz

  • S2: 430–450MHz / 800–930MHz / 1240–1300MHz

• Power Ranges: 5W / 20W / 200W

• Minimum Power for SWR:

  • S1: 1W

  • S2: 2W

• Impedance: 50Ω

• Panel Light Power: 12VDC

• Insertion Loss:

  • S1: <0.2dB

  • S2: <0.15dB

• Functions: Output power, reflected power, SWR

• Connectors:

  • S1: PL

  • S2: N‑type

• Dimensions: 155 × 63 × 103 mm

• Weight: 890g

• Band Coverage: HF, 2m, 70cm, 23cm.
