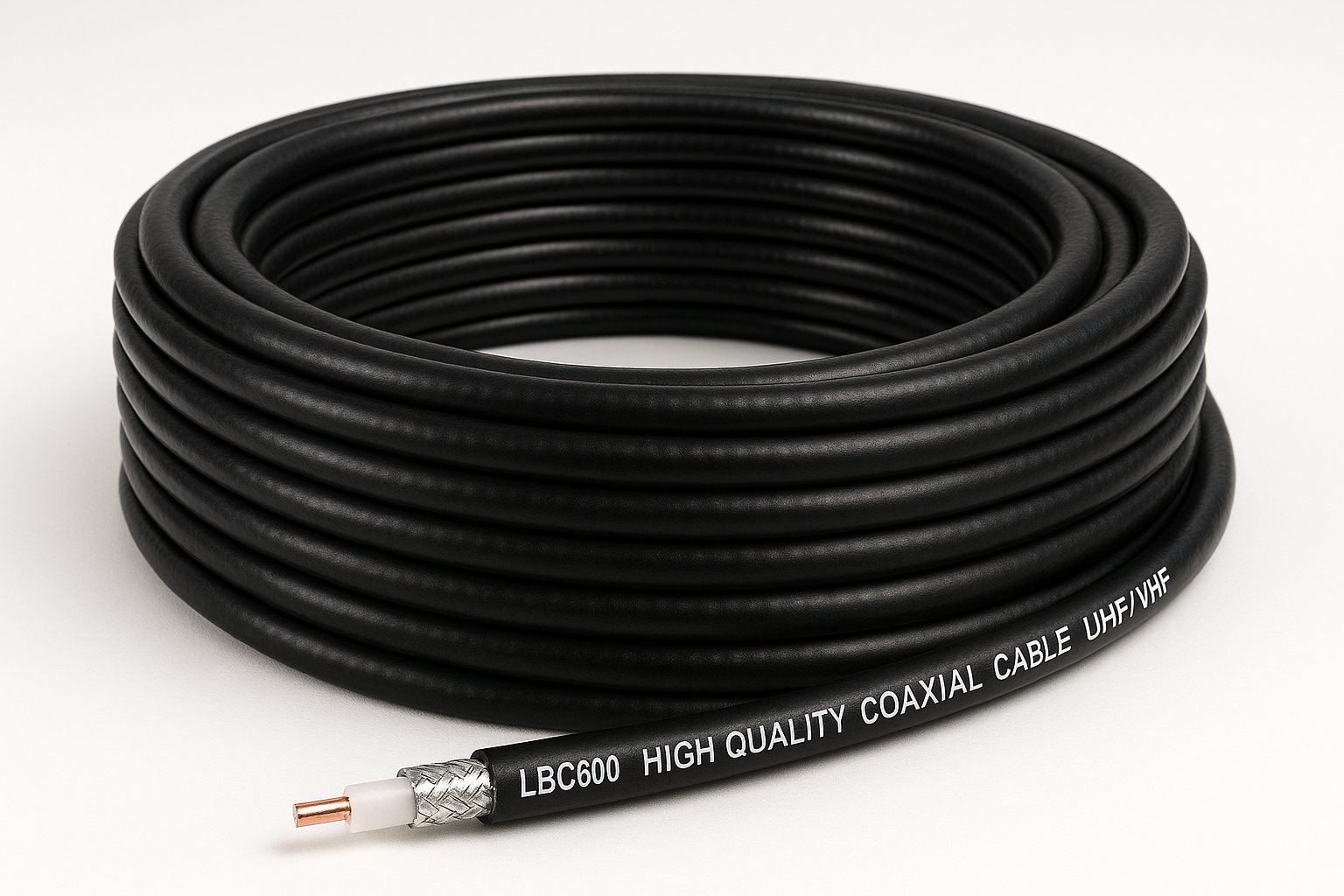

LBC600 High Quality Coax Cable For UHF VHF Frequencies
LBC600 High Quality Coax Cable For UHF VHF Frequencies
Click the image to enlarge
LBC600 High Quality Coax Cable For UHF VHF Frequencies

Gigatronix coax

LBC600 High Quality Coax Cable For UHF VHF Frequencies

Need a data sheet? No problem, Click here!

£0.00
(£0.00 exc. VAT)
£4.96
(£4.13 exc. VAT)
Out of Stock
Qty:
ADD TO WISHLIST
0 Reward points
Product code: LBC600-Metre
Download a pdf document for LBC600 High Quality Coax Cable For UHF VHF Frequencies

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£4.96
12 Months 14.9% APR
£0.50
£0.43
£5.62
£4.96
18 Months 14.9% APR
£0.50
£0.28
£5.62
£4.96
24 Months 14.9% APR
£0.50
£0.21
£5.62
£4.96
36 Months 14.9% APR
£0.50
£0.14
£5.62
£4.96
48 Months 14.9% APR
£0.50
£0.11
£5.62
£4.96
12 Months 19.5% APR
£0.50
£0.44
£5.83
£4.96
18 Months 19.5% APR
£0.50
£0.30
£5.83
£4.96
24 Months 19.5% APR
£0.50
£0.22
£5.83
£4.96
36 Months 19.5% APR
£0.50
£0.15
£5.83
£4.96
48 Months 19.5% APR
£0.50
£0.11
£5.83

DescriptionLBC600, LBC Cable Inner ConductorBare Copper Clad Aluminium (4.47mm) DielectricPhysical Foam Polyethylene (11.56mm) Outer ConductorBonded Aluminium Foil (11.71mm) Overall BraidTinned Copper (12.50mm) JacketBlack Polyethylene (14.99mm) Bending Radius (static)37mm Bending Radius (flexing)75mm Weight220 gms/m Impedance50 ohms Max. Frequency6000 MHz Capacitance76.8 pF/m Temperature Range-40 to +85 degrees C Velocity of Propagation87% Voltage Withstanding4000 Volts DC Attenuation and Average Powerper 100m / KW 150 MHz3.20dB / 2.41 220 MHz3.90dB / 1.97 450 MHz5.60dB / 1.35 900 MHz8.20dB / 0.93 1500 MHz10.90dB / 0.70 1800 MHz12.10dB / 0.63 2000 MHz12.80dB / 0.59 2500 MHz14.50dB / 0.52 3000 MHz15.70dB / 0.41 5800 MHz23.80dB / 0.32

Need a data sheet? No problem, Click here!
