MAT-Tuner mAT-30 automatic HF antenna tuner for Yaesu transceivers, CAT/LINEAR controlled, 1.6–54 MHz, 120W max power.
Compact MAT-Tuner mAT-30 with CAT/LINEAR jack and Tune button control, ideal for Yaesu FT series radios and wide-band HF tuning.
Compact MAT-Tuner mAT-30 with CAT/LINEAR jack and Tune button control, ideal for Yaesu FT series radios and wide-band HF tuning.
Click the image to enlarge
"MAT‑Tuner mAT‑30 automatic HF antenna tuner for Yaesu transceivers 1.6–54MHz – Radioworld UK"
MAT-Tuner mAT-30 automatic HF antenna tuner for Yaesu transceivers, CAT/LINEAR controlled, 1.6–54 MHz, 120W max power.
Compact MAT-Tuner mAT-30 with CAT/LINEAR jack and Tune button control, ideal for Yaesu FT series radios and wide-band HF tuning.
Compact MAT-Tuner mAT-30 with CAT/LINEAR jack and Tune button control, ideal for Yaesu FT series radios and wide-band HF tuning.

MAT-TUNER – Automatic HF Antenna Tuners for Amateur Radio

MAT-Tuner mAT-30 Automatic HF Antenna Tuner for Yaesu FT Series Radios

£124.96
(£104.13 exc. VAT)
£139.96
(£116.63 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
View video
124 Reward points
Product code: mAT-30
Download a pdf document for MAT-Tuner mAT-30 Automatic HF Antenna Tuner for Yaesu FT Series Radios

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£139.96
12 Months 14.9% APR
£14.00
£12.06
£158.72
£139.96
18 Months 14.9% APR
£14.00
£8.04
£158.72
£139.96
24 Months 14.9% APR
£14.00
£6.03
£158.72
£139.96
36 Months 14.9% APR
£14.00
£4.02
£158.72
£139.96
48 Months 14.9% APR
£14.00
£3.02
£158.72
£139.96
12 Months 19.5% APR
£14.00
£12.54
£164.52
£139.96
18 Months 19.5% APR
£14.00
£8.36
£164.52
£139.96
24 Months 19.5% APR
£14.00
£6.27
£164.52
£139.96
36 Months 19.5% APR
£14.00
£4.18
£164.52
£139.96
48 Months 19.5% APR
£14.00
£3.14
£164.52

Click here to recommend this product to a friend

Recommend a friend

"MAT‑Tuner mAT‑30 automatic HF antenna tuner for Yaesu transceivers 1.6–54MHz – Radioworld UK"

MAT-Tuner mAT-30 Automatic HF Antenna Tuner for Yaesu FT Series Radios


Trustpilot

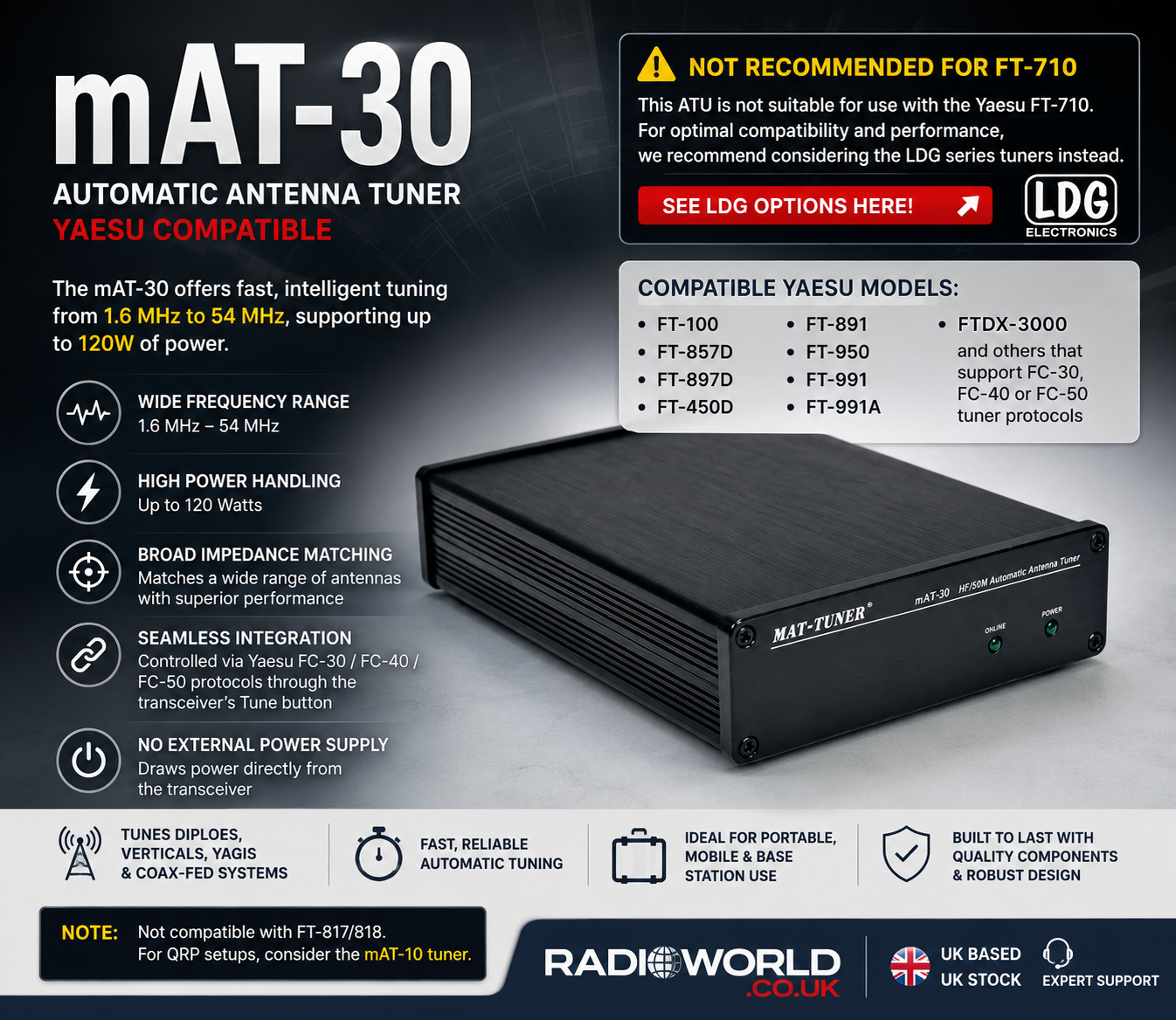

mAT‑30 Automatic Antenna Tuner – Yaesu Compatible

⚠️ Not recommended for FT‑710:  This ATU is not suitable for use with the Yaesu FT‑710. For optimal compatibility and performance,

we recommend considering the LDG series tuners instead. [See LDG options here]! See here

The mAT‑30 is a high‑performance automatic antenna tuner designed for modern Yaesu transceivers that support FC‑30, FC‑40, or FC‑50 tuner protocols. It offers fast, intelligent tuning across 1.6 MHz to 54 MHz at power levels up to 120 watts, making it ideal for portable, mobile, and base station setups.

Compatible with a wide range of Yaesu models, including FT‑100, FT‑857D, FT‑897D, FT‑450D, FT‑891, FT‑950, FT‑991, FT‑991A, and FTDX‑3000, the mAT‑30 connects via the transceiver’s CAT/LINEAR jack and is controlled directly through the radio’s Tune button—mirroring the intuitive operation of Yaesu’s original tuners.

It tunes dipoles, verticals, Yagis, and coax‑fed systems with superior matching capabilities and a broader impedance range than many built‑in tuners. No external power supply is required; the unit draws power directly from the transceiver.

Note: Not compatible with FT‑817/818. For QRP setups, consider the mAT‑10 tuner.


Technical Specifications

  • Frequency Range: 1.6 MHz to 54 MHz

  • Power Handling: Up to 120 watts

  • Control Interface: CAT/LINEAR jack (Yaesu protocol)

  • Tuning Method: Automatic via transceiver Tune button

  • Antenna Types: Dipole, vertical, Yagi, coax‑fed

  • Power Supply: Draws power from transceiver

  • Dimensions: Compact, rugged enclosure

  • Compatibility: FT‑100, FT‑857D, FT‑897D, FT‑450D, FT‑891, FT‑950, FT‑991, FT‑991A, FTDX‑3000

  • Exclusions: Not compatible with FT‑817/818.
