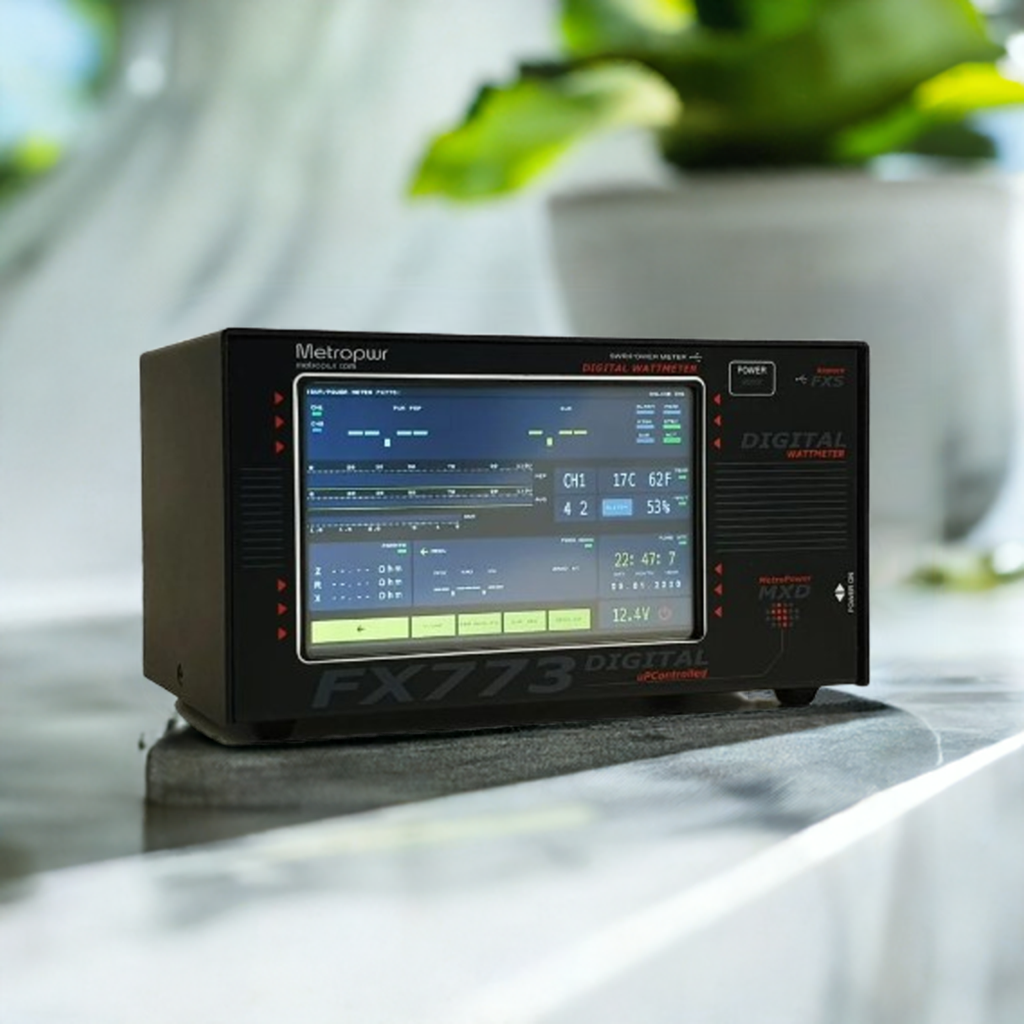

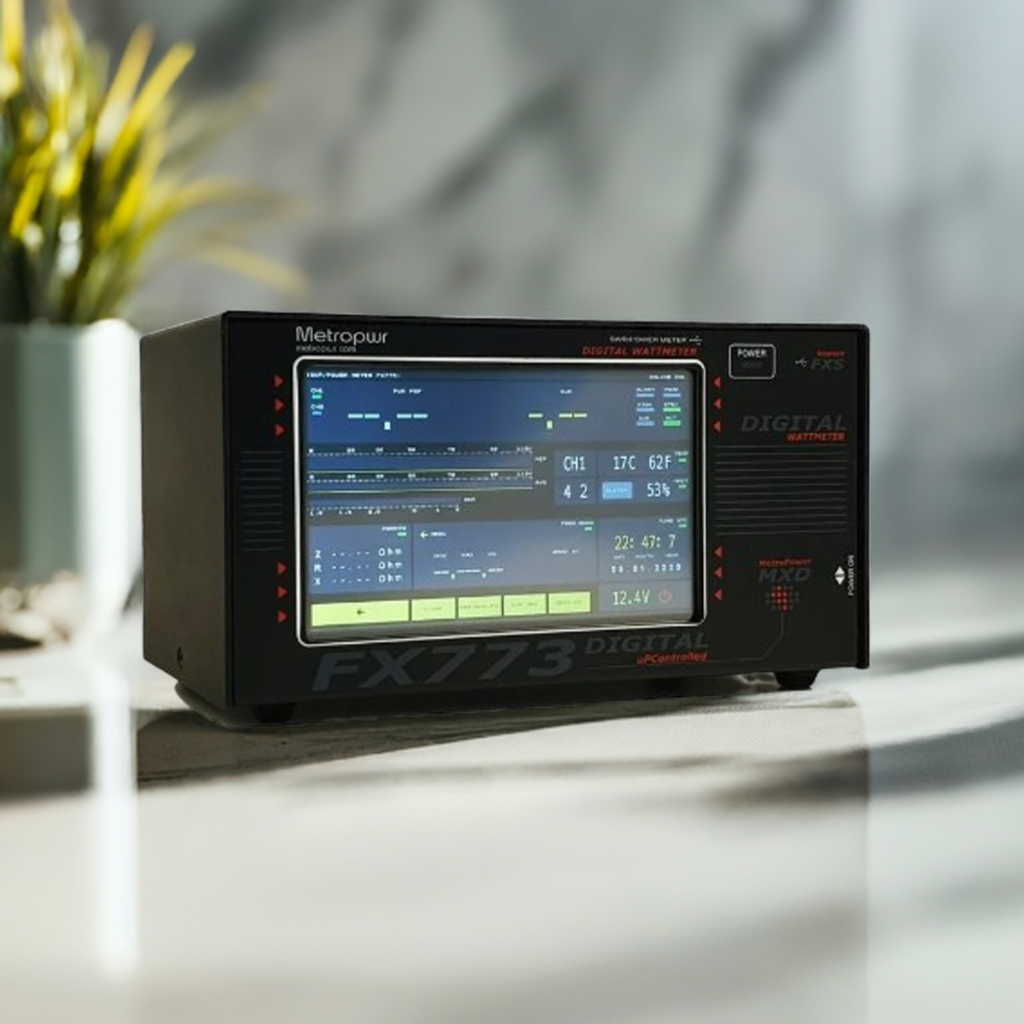

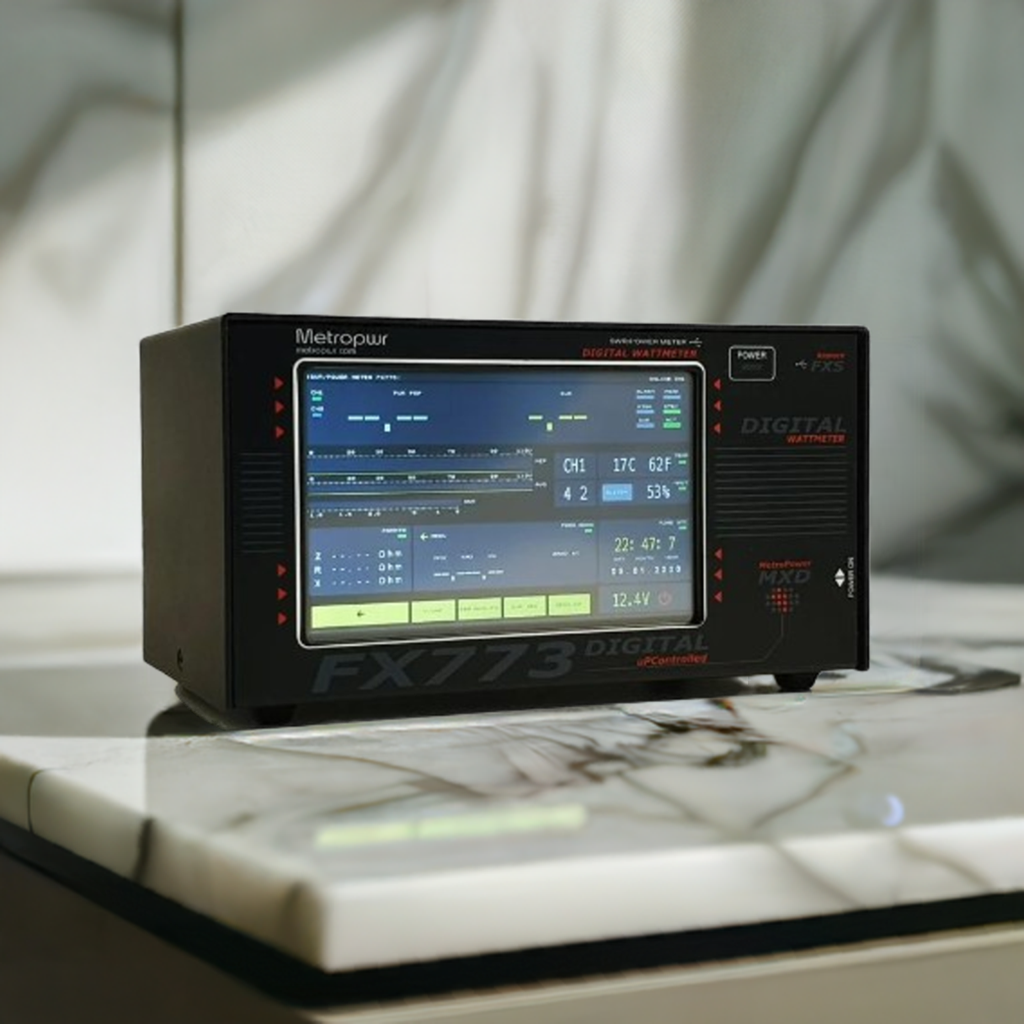

METROPWR FX773 VECTOR POWER/SWR METER
Click the image to enlarge

metropwr modern antenna analyser

METROPWR FX773 VECTOR POWER/SWR METER

£0.00
(£0.00 exc. VAT)
£529.96
(£441.63 exc. VAT)
Fast uk delivery
Worldwide delivery
Qty:
0 Reward points
Product code: METROPWR FX773
Download a pdf document for METROPWR FX773 VECTOR POWER/SWR METER
Finance available on baskets over £250 view details

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£529.96
12 Months 14.9% APR
£53.00
£45.67
£601.02
£529.96
18 Months 14.9% APR
£53.00
£30.45
£601.02
£529.96
24 Months 14.9% APR
£53.00
£22.83
£601.02
£529.96
36 Months 14.9% APR
£53.00
£15.22
£601.02
£529.96
48 Months 14.9% APR
£53.00
£11.42
£601.02
£529.96
12 Months 19.5% APR
£53.00
£47.50
£622.96
£529.96
18 Months 19.5% APR
£53.00
£31.66
£622.96
£529.96
24 Months 19.5% APR
£53.00
£23.75
£622.96
£529.96
36 Months 19.5% APR
£53.00
£15.83
£622.96
£529.96
48 Months 19.5% APR
£53.00
£11.87
£622.96

The METROPWR FX773/FX775, is a modern VECTOR POWER/SWR METER completely digital. It’s composed of a wattmeter and a power coupler for measurements up to 3/5kW. It has a very modern design, and very high performance. It has inside a fast 32bit processor plus a coprocessor to handle all the measurements in real time, and measure Power (AVG, PeP, dBm) , SWR, R, Z, X, and more. It has a fast external bus with which you can connect many accessories in series:

Antenna switch 1X4 positions FX7

Radio switch 1X4 positions FX7

Directional coupler 3/5kW FX3/FX5

It has a large Lcd touch screen display very fast and responsive, with which you can monitor:

Measurement errors

High SWR alarm

RX/TX/Standbye

Monitoring ADC/ACT

USB PC RX/TX

Check Bus I2C

AVG power, PeP (5kW autoranging scale)

Express power mW / W / kW and dBm

SWR / RL

Double function smeter Power AVG,P&P

Measures Return Loss

Parameter Measurement Antenna Resistance, Impedance, Reactive (R, Z, X) Up to 3 / 5kW

Voltage Supply Vcc / USB

Operating frequency MHz, KHz, Hz

Operational OM band

Technical Features VECTOR SWR/POWER METER METROPWR FX773/FX775

Coverage 1.8/55 MHz 160/6mt

HF/55MHz Measure Power AVG, PeP, dBm, R, Z, |X| , SWR, Frequency

Wide Autoranging Power range 0.5W/5kW

HF/50MHz Optional Couplers 0.5W /3kW (FX3) – 0.5W/5kW (FX5)

Accuracy SWR error <5%

Directivity Coupler 30dB

Accuracy Power Better 5%

Operating voltage 13.8V

Dimensions 205x120x109 mm

Weight 200gr

Functional characteristics:

Display TFT 5″ (FX773) / 7” (FX775) 16 K color Touch screen

uP 32bit + Coprocessor

14 Internal Menus

Internal Analog/Digital UTC Clock

PC USB port

ADC resolution 16bit

Fast EXP Port

updating Firmware through USB

App Pc Software
