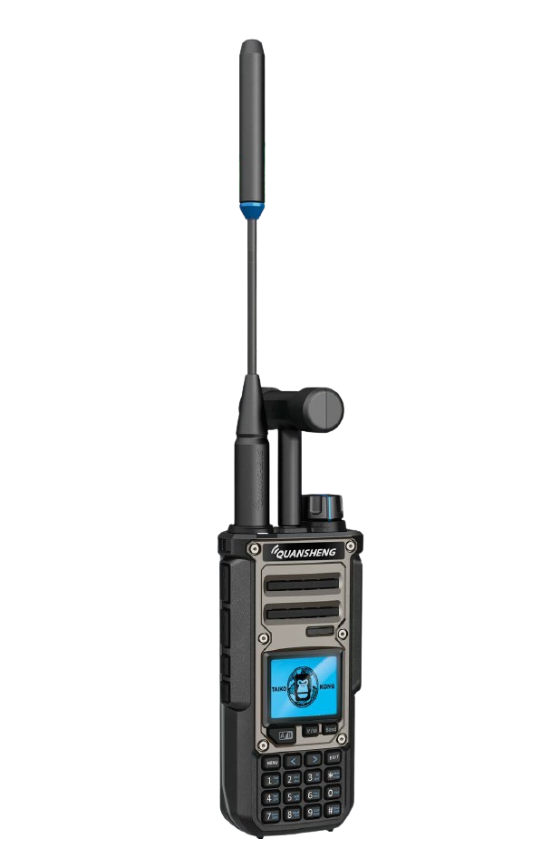

The QUANSHENG TK‑11(8) is a powerful quad‑band handheld transceiver designed for users who need wide frequency coverage, strong output power, and advanced communication features. It supports wireless radio replication, 10‑group scrambler, power‑on password protection, noise reduction, cross‑band intercom, DTMF ANI/Select, and full calling modes including individual, group, and all‑call. The radio is fully PC‑programmable and includes CTCSS/DCS, VOX, multi‑step frequency selection, channel scan/add, and a clear LCD for easy operation.

Features / Technical Specifications

Transmitting Frequency Ranges

• 25–29.8 MHz: ≤5 W

• 50–54 MHz: ≤5 W

• 136–174 MHz: ≤10 W

• 350–490 MHz: ≤10 W

• Output Power: 8–10 W

Receiving

• Receive Range: 0.153–1160 MHz

Channels & Storage

• Channel Capacity: 999

• NOAA Channels: 10

• FM Radio Presets: 32

Power & Battery

• Voltage: 7.4 V

• Battery Capacity: 3000 mAh

Physical Specifications

• Dimensions: 126 × 58 × 34.5 mm

• Weight: 301 g

• Screen: 1.44‑inch ice‑blue display

• Keypad: 19‑key front panel + 2 PTT + 2 shortcut keys

Audio & Hardware

• Speaker: 16 Ω, 1 W

• Jacklight: Supported

• Antenna Impedance: 50 Ω

• Frequency Stability: ±1 ppm

Modulation Modes

• FM: 11KOF3E (12.5 kHz), 16KOF3E (25 kHz)

Charging

• Charging Options: Base charger / USB Type‑C charging

Environmental

• Operating Temperature: −20 °C to −60 °C.
