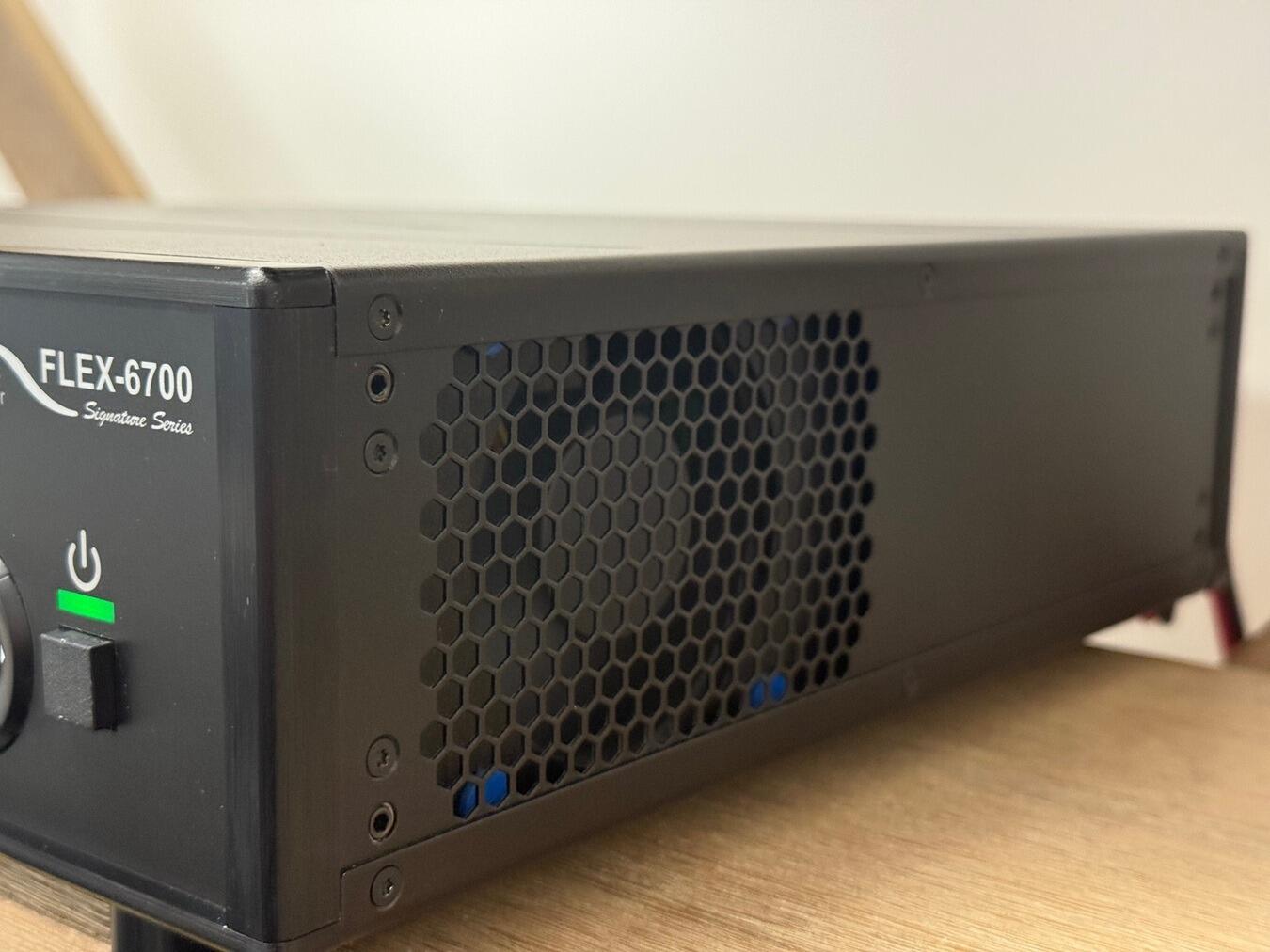

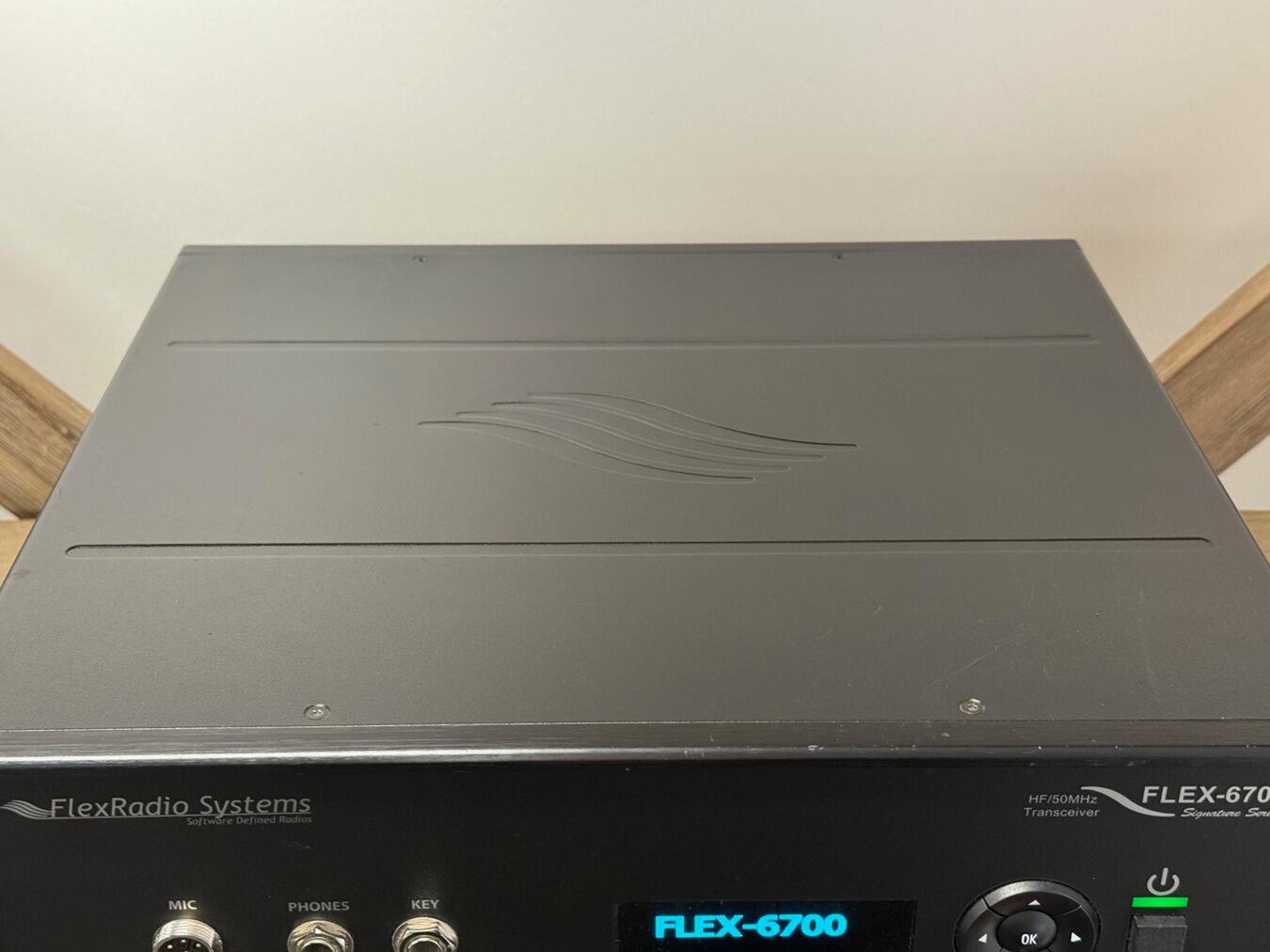

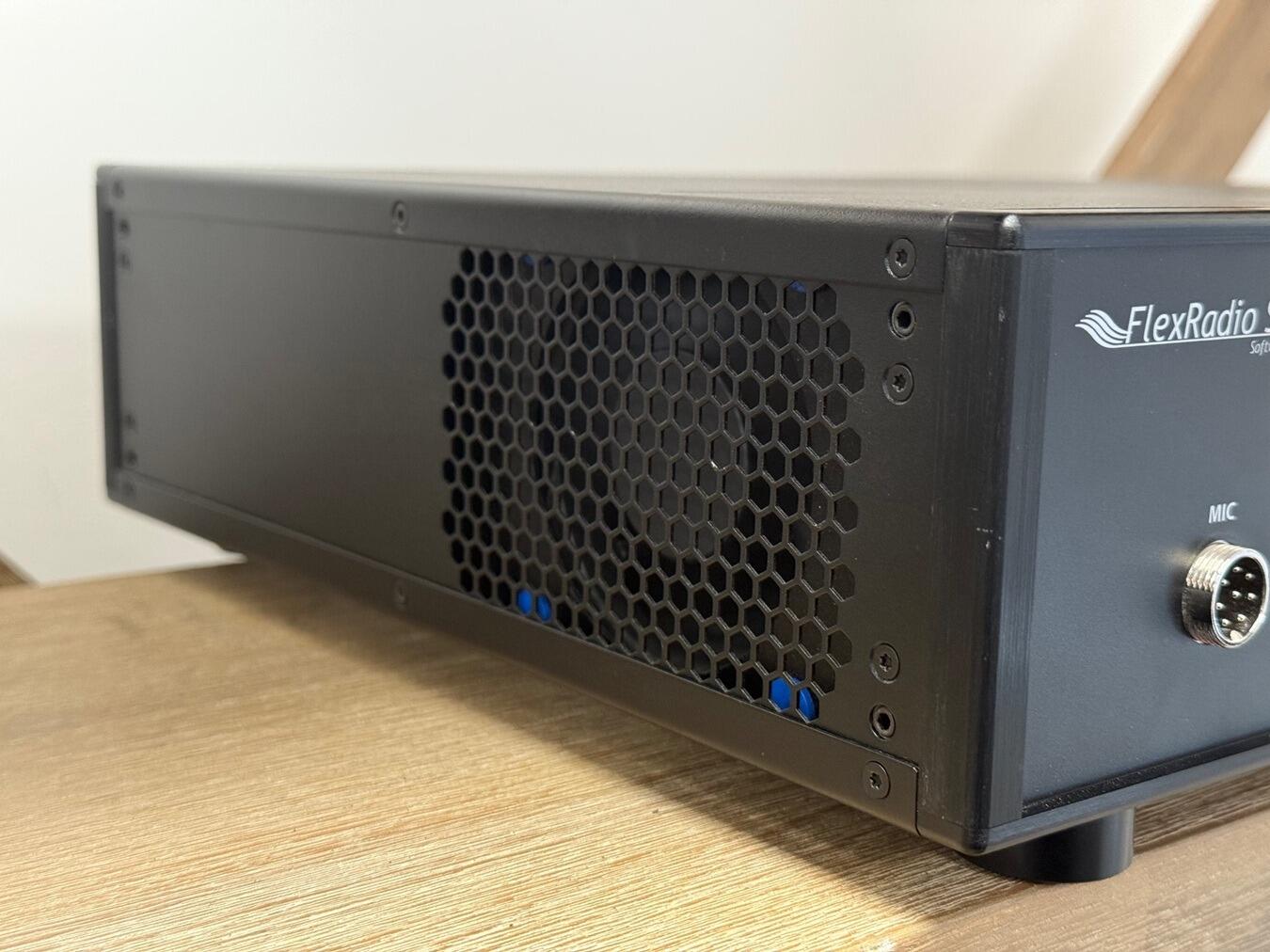

Second Hand FlexRadio Systems Flex 6700 SDR Transceiver, The Flex-6700r Signature Series radios, Flex Radio brings a wealth of new capabilities to the amateur including direct digital sampling reception, transmission and networking. At the core of all these new capabilities is SMartSDR. SmartSDR organizes all of the signal processing power in the Flex-6000 series into an advanced reusable framework.

Plug & Play The Flex-6000 Signature Series was designed with plug-and-play installation as a requirement. There are no drivers or interface cards to install. Just plug the radio into an antenna, power supply and network, load the SmartSDR software on your existing PC and operate.

The FLEX-6700R incorporates two independent, synchronous Analog Devices AD9467 16-bit 245.76 Msps (Mega samples per second) analog to digital converters (ADC) that allow direct digitization of the RF spectrum.

The FLEX-6700R receiver allows creation of up to 8 independent Slice Receivers providing reception from 0.03 MHz to 77 MHz and 135 MHz to 165MHz. Each Slice Receiver can provide independent spectral display of up to 384 kHz.

The Flex-6000 Signature Series packs more built-in digital signal process power than ever before imagined in an amateur radio transceiver. The FLEX-6700R delivers 317 billion multiply-accumulate operations per second (GMACS) and 121 billion floating point operations per second (GFLOPS).

The Flex-6000 Signature Series is the first amateur radio product family to offer an optional built-in GPS Disciplined Oscillator (GPSDO).

Preliminary Specifications GENERAL USB 2.0 Ports: 2 Modes: USB / LSB / CW / RTTY / AM / FM Antenna Connectors: BNC x2 Antenna Impedance (without tuner): 50 Ohm Unbalanced Power Supply Requirements: 25-264V AC; 47-63Hz; 20W Dimensions: 3330 x 305 x 102 mm Weight: 5kg RECEIVER Wideband Frequency Coverage: 0.30 - 77 MHz, 135 - 165 MHz Amateur Band Preselector Coverage: 160 - 6m (except 60m)
