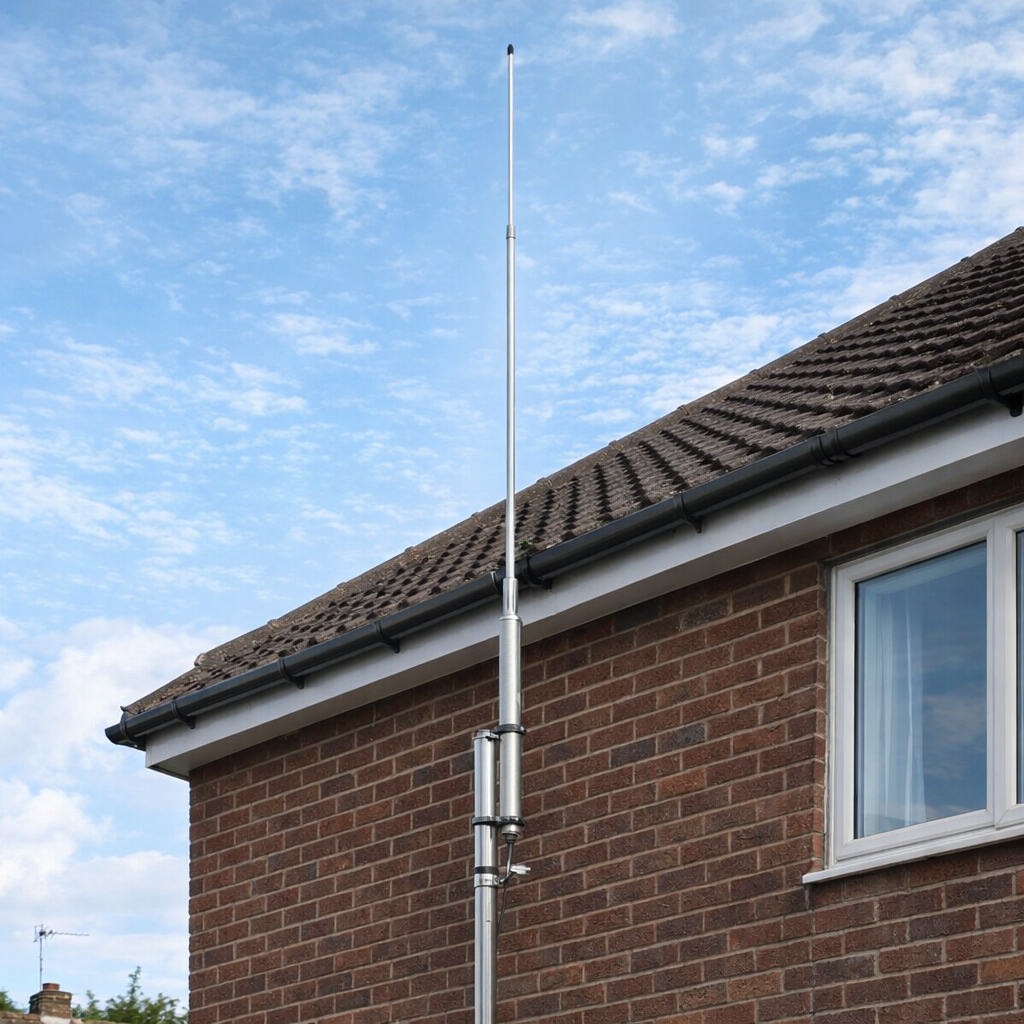

Sirio CX-4 (4m) Base Station Antenna
Click the image to enlarge

Sirio Antennas

Sirio CX-4 (4m) Base Station Antenna - select 68-73mhz or - 73-78mhz or - 78-83mhz or - 83-88mhz

£0.00
(£0.00 exc. VAT)
£59.95
(£49.96 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock

Product options

Qty:
ADD TO WISHLIST
0 Reward points
Product code:
Download a pdf document for Sirio CX-4 (4m) Base Station Antenna - select 68-73mhz or - 73-78mhz or - 78-83mhz or - 83-88mhz

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£59.95
12 Months 14.9% APR
£6.00
£5.17
£67.99
£59.95
18 Months 14.9% APR
£6.00
£3.44
£67.99
£59.95
24 Months 14.9% APR
£6.00
£2.58
£67.99
£59.95
36 Months 14.9% APR
£6.00
£1.72
£67.99
£59.95
48 Months 14.9% APR
£6.00
£1.29
£67.99
£59.95
12 Months 19.5% APR
£6.00
£5.37
£70.47
£59.95
18 Months 19.5% APR
£6.00
£3.58
£70.47
£59.95
24 Months 19.5% APR
£6.00
£2.69
£70.47
£59.95
36 Months 19.5% APR
£6.00
£1.79
£70.47
£59.95
48 Months 19.5% APR
£6.00
£1.34
£70.47

Base station antenna, Mono-band • Low-gain, Omnidirectional • Factory tunable according to specific customer's frequency • Protection from static discharges DC-Ground • Made of aluminium alloy 6063 T-832 • UP-GRADE: working frequency extended P/N 2104301.00 CX 4-68 Electrical Data • Type: 3/4λ coaxial J-pole, • Frequency range: CX 4-68: 68-73 MHz tunable by diagram,
• Impedance: 50Ω unbalanced • Radiation (H-plane): 360° omnidirectional,
• Radiation (E-plane): beam width at -3 dB = 60° • Radiation angle: 3°,
• Polarization: vertical • Gain: 2dBd - 4.15 dBi • Bandwidth @ SWR 1.5: CX 4-68: ≥ 1.7 MHz @ 68 MHz • SWR. @ res. freq.: ≤ 1.2 • Max. power: 500 Watts, • Feed system / position: gamma match / base • Connection: UHF-female,
Mechanical Data • Materials: Aluminium, Brass, Stainless Steel, Nylon
• Wind load / resistance: 97 N at 150 Km/h / 150 Km/h • Wind surface: 0.08 m²
• Height (approx.): from 2720 to 3325 mm • Weight (approx.): 1900 gr
• Mounting mast: Ø 35-42 mm.
