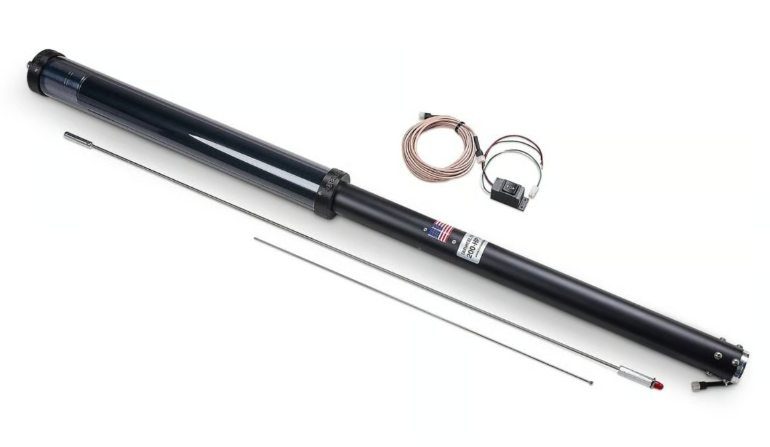

Tarheel 200 PRO HP Motorised HF Antenna (3.5–26MHz, 1500W)
The Tarheel 200 PRO HPis a high‑power, heavy‑duty motorised HF antenna engineered for operators who demand maximum performance and wide‑band coverage on the move. With its 48" lower mast, 2" 14‑gauge close‑wound coil, and 66" whip, the 200 PRO HP delivers exceptional efficiency from 3.5 to 26MHz(extendable to 30MHz with whip trimming).
Built for serious HF mobile installations, the antenna features a 1550‑pulse sensorfor precise tuning, a rugged 3/8‑24 mounting system, and a robust construction designed to withstand long‑term mobile use. The HP package includes a matching coil, medium cradle mount, and KDT whip quick‑connect, ensuring a complete, ready‑to‑install system.
Rated to 1500W (CW/SSB), the 200 PRO HP is ideal for high‑power HF operators using trucks, SUVs, vans, or expedition vehicles who require reliable, repeatable tuning and strong on‑air performance.
Technical Specifications
| Specification | Details |
|---|---|
| Lower Mast Length | 48" |
| Lower Mast Diameter | 2.125" |
| Whip Length | 66" |
| Coil Diameter | 2" (14ga, 8 TPI) |
| Frequency Coverage (with 66" whip) | 3.5–26MHz (trim whip for 3.5–30MHz) |
| Power Rating | 1500W (CW/SSB), 400W (AM/FM/Data/FT‑8/JT‑65) |
| Total Length at 26MHz | 114" |
| Total Length at 3.5MHz | 128" |
| Sensor Pulses | ~1550 |
| Mounting Thread | 3/8‑24 |
| Weight | 9.0 lbs (≈4.08 kg) |
| Included Accessories | Up/down switch, 20' control cable, Snap‑It ferrite core, 3/8‑24 stud & lock washer, matching coil, medium cradle mount, KDT whip quick‑connect |
| Country of Origin | USA |
Comparison vs Tarheel 75 PRO & Tarheel 1000 PRO
Tarheel 200 PRO HP vs 75 PRO
| Feature | 200 PRO HP | 75 PRO |
|---|---|---|
| Frequency Range | 3.5–26MHz (to 30MHz with trim) | 3.5–32MHz |
| Power Rating (CW/SSB) | 1500W | 400W |
| Coil Diameter | 2" (14ga, 8 TPI) | 2" (14ga, close wound) |
| Lower Mast Length | 48" | 24" |
| Sensor Pulses | ~1550 | ~650 |
| Weight | 9.0 lbs | 7.0 lbs |
| Use Case | High‑power HF mobile | Mid‑power HF mobile |
Tarheel 200 PRO HP vs 1000 PRO
| Feature | 200 PRO HP | 1000 PRO |
|---|---|---|
| Frequency Range | 3.5–26MHz | 3.5–30MHz |
| Power Rating (CW/SSB) | 1500W | 1500W |
| Coil Diameter | 2" | 3" |
| Lower Mast Length | 48" | 48" |
| Sensor Pulses | ~1550 | ~2500 |
| Weight | 9.0 lbs | 14.0 lbs |
| Use Case | High‑power mobile | Extreme‑duty, contest‑grade mobile |
