Uniden UBC75XLT Airband Handheld Scanner
Click the image to enlarge

Uniden scanners

Uniden UBC75XLT Airband Handheld Scanner

£0.00
(£0.00 exc. VAT)
£104.95
(£87.46 exc. VAT)
Fast uk delivery
Worldwide delivery
Qty:
0 Reward points
Product code: UBC75XLT
Download a pdf document for Uniden UBC75XLT Airband Handheld Scanner
Finance available on baskets over £250 view details

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£104.95
12 Months 14.9% APR
£10.50
£9.04
£119.03
£104.95
18 Months 14.9% APR
£10.50
£6.03
£119.03
£104.95
24 Months 14.9% APR
£10.50
£4.52
£119.03
£104.95
36 Months 14.9% APR
£10.50
£3.01
£119.03
£104.95
48 Months 14.9% APR
£10.50
£2.26
£119.03
£104.95
12 Months 19.5% APR
£10.50
£9.41
£123.37
£104.95
18 Months 19.5% APR
£10.50
£6.27
£123.37
£104.95
24 Months 19.5% APR
£10.50
£4.70
£123.37
£104.95
36 Months 19.5% APR
£10.50
£3.14
£123.37
£104.95
48 Months 19.5% APR
£10.50
£2.35
£123.37

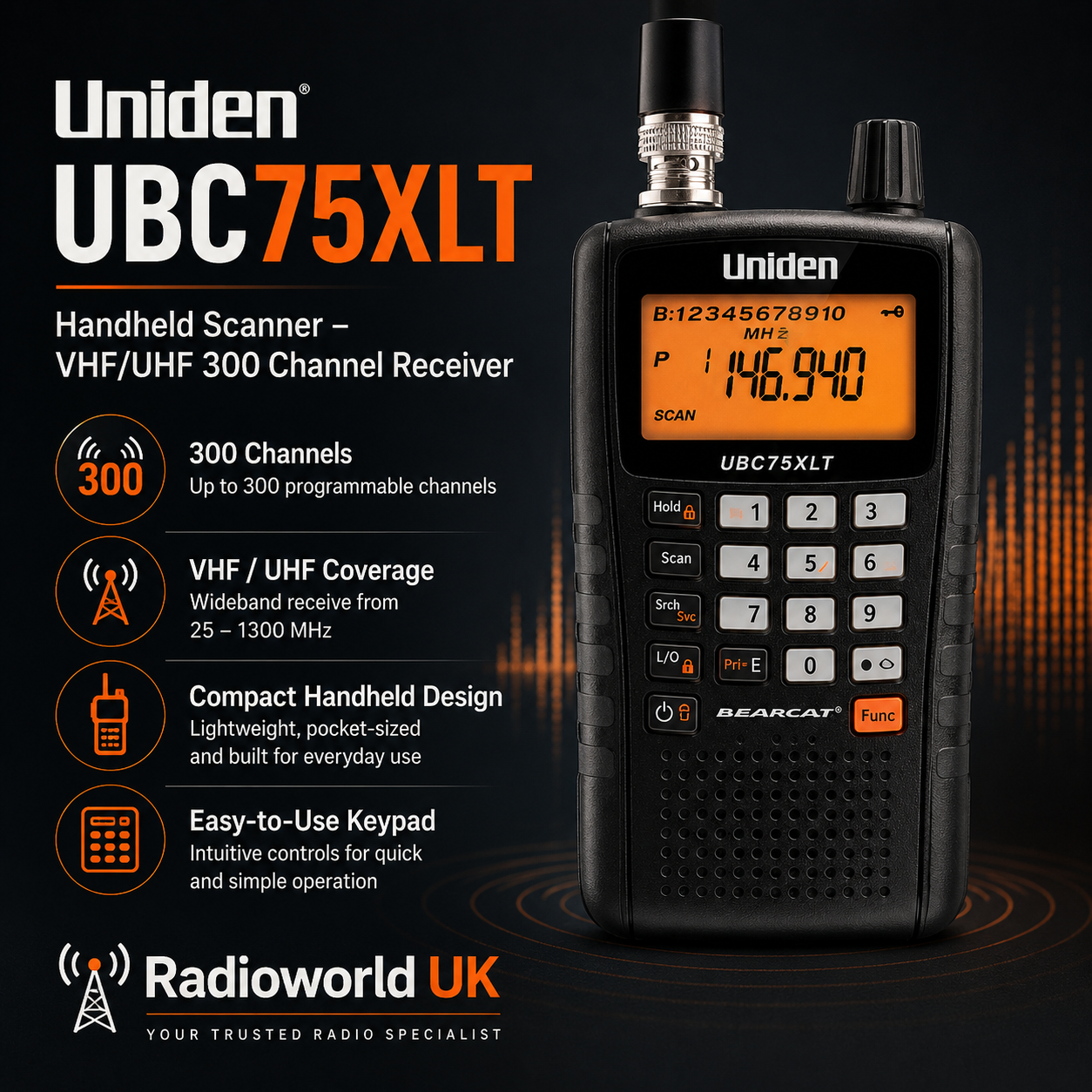

The Uniden UBC75XLT is a compact 300 channel handheld scanner with 5 / 8.33 / 12.5 KHz steps and a fast scanning rate of 90 channels per second. Ideal for listening to the communication from Civil Air Control, Boats, truckers operating on CB radio, Ham Radio/Amateur Operators, Sporting events, Churches and Mosques, etc. Main features include 300 memory programmable channels, close call RF capture with Do-Not-Disturb, automatic close call detection, and tune into the nearby transmission, 10 pre-programmed service searches, 10 custom search ranges, channel priority with Do-Not-Disturb, temporary lockout, PC programming, battery save, and low battery alert, scan/search delay/resume options, quick and turbo search facility, triple conversation circuit, key confirmation tones, three power options and many more.

This scanner also has a built-in USB charger, which enables you to charge it by using your iPhone or another smartphone 3 pin USB adaptor or if you are on the road, you can also charge it by using a USB adaptor, which plugs into the cigarette lighter socket of your vehicle. (USB cable comes with the scanner in the box).

Please see the accessories tab option of this product.

Programming software for this scanner is also available, please see our product code PRG-ARC75 or see the accessories tab.

The box includes a UBC75XLT scanner, antenna with BNC connector, belt clip, USB cable, hand strap, and owner's instructions manual

Technical Specifications:

Channels: 300 Channels

Frequency Range: 25 - 88mhz - 108-174mhz 400-512.

Frequency Steps: 5/6.25/8.33/10/12.5

Banks: 10 (30 channels each)

Sensitivity: SINAD 12dB, Nominal

Operating Temperature: Normal: -20°C to +60°C

Close Call: -10°C to +50°C

Scan Rate: 90 channels per second

Search Rate: Normal: 90 steps per second

Hyper: 270 steps per second

Priority Sampling: 2 seconds

Scan Delay: 2 seconds

IF Rejection (at 453.25MHz): 80dB

Internal Speaker: 24 ohm, 0.8W Max

Audio Output: Internal Speaker: 360mW nominal (24ohm)

Headphone (L-ch): 4mW nominal (32ohm)

Current Drain: Squelched: 120mA

Full Output: 280mA

Power Requirements: 2 x AA Alkaline Batteries (3VDC) or

2 x AA Rechargeable Ni-MH Batteries (2.4V DC) or

Connect to PC with USB cable (5.0V DC 500mA)

Antenna: 50 ohms (Impedance)

External Jacks: Antenna Jack (BNC Type)

Phone Jack (3.5mm)

USB Jack (5pin Mini USB B Type)

Size: 67mm(W) x 32.7mm(D) x 115mm(H)

Weight: 175g (without antenna and battery).
