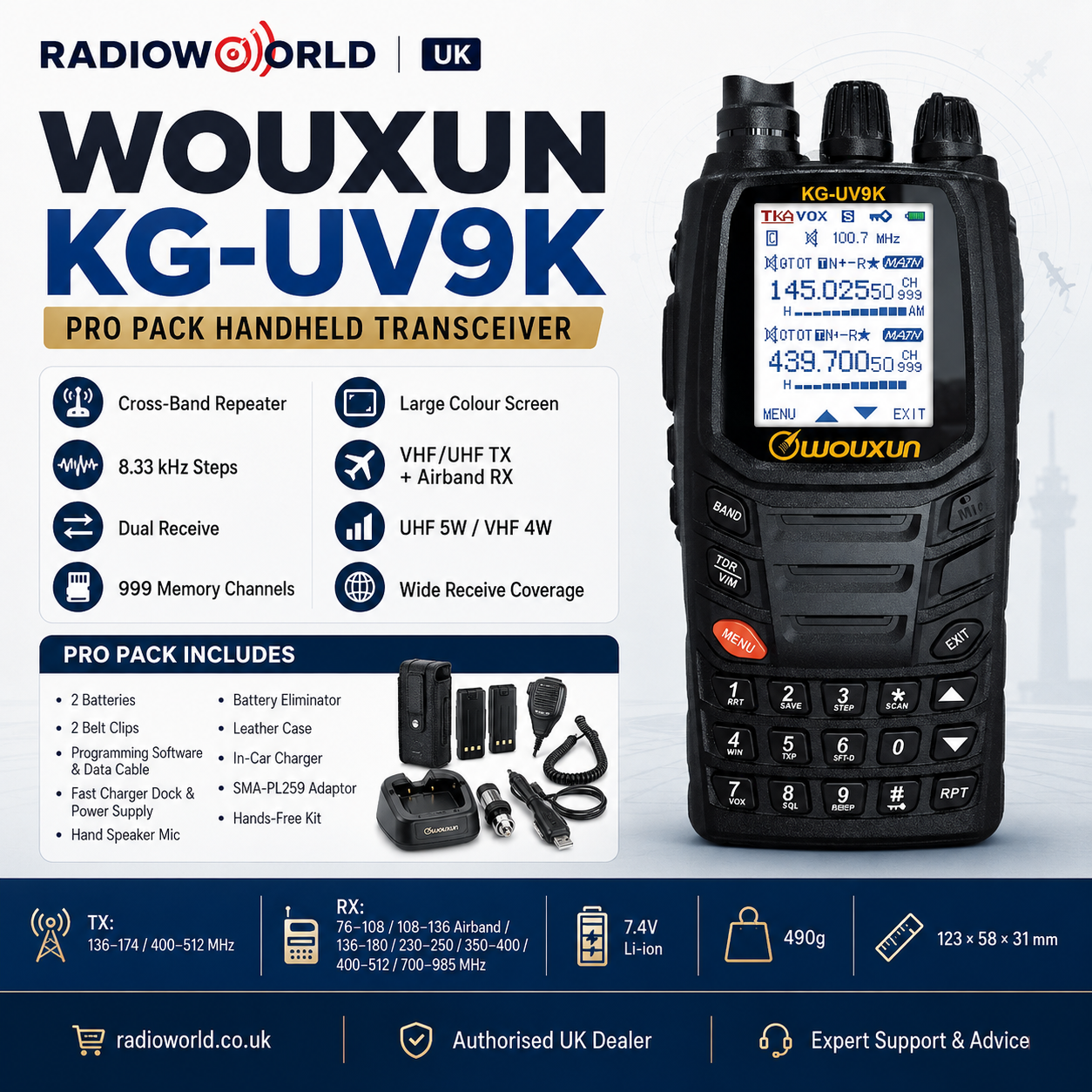

Wouxun KG-UV9K Pro Pack - New Step 8.33K , Cross Band Repeat
Click the image to enlarge

Wouxun Radio

Wouxun KG-UV9K Pro Pack - New Step 8.33K , Cross Band Repeat

£0.00
(£0.00 exc. VAT)
£144.95
(£120.79 exc. VAT)
Qty:
0 Reward points
Product code: Wouxun KG-UV9K Pro Pack
Download a pdf document for Wouxun KG-UV9K Pro Pack - New Step 8.33K , Cross Band Repeat
Finance available on baskets over £250 view details

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£144.95
12 Months 14.9% APR
£14.49
£12.49
£164.39
£144.95
18 Months 14.9% APR
£14.49
£8.33
£164.39
£144.95
24 Months 14.9% APR
£14.49
£6.25
£164.39
£144.95
36 Months 14.9% APR
£14.49
£4.16
£164.39
£144.95
48 Months 14.9% APR
£14.49
£3.12
£164.39
£144.95
12 Months 19.5% APR
£14.49
£12.99
£170.39
£144.95
18 Months 19.5% APR
£14.49
£8.66
£170.39
£144.95
24 Months 19.5% APR
£14.49
£6.50
£170.39
£144.95
36 Months 19.5% APR
£14.49
£4.33
£170.39
£144.95
48 Months 19.5% APR
£14.49
£3.25
£170.39

New version of the ever popular UV9D - the UV9K! Now with 8.33 step.

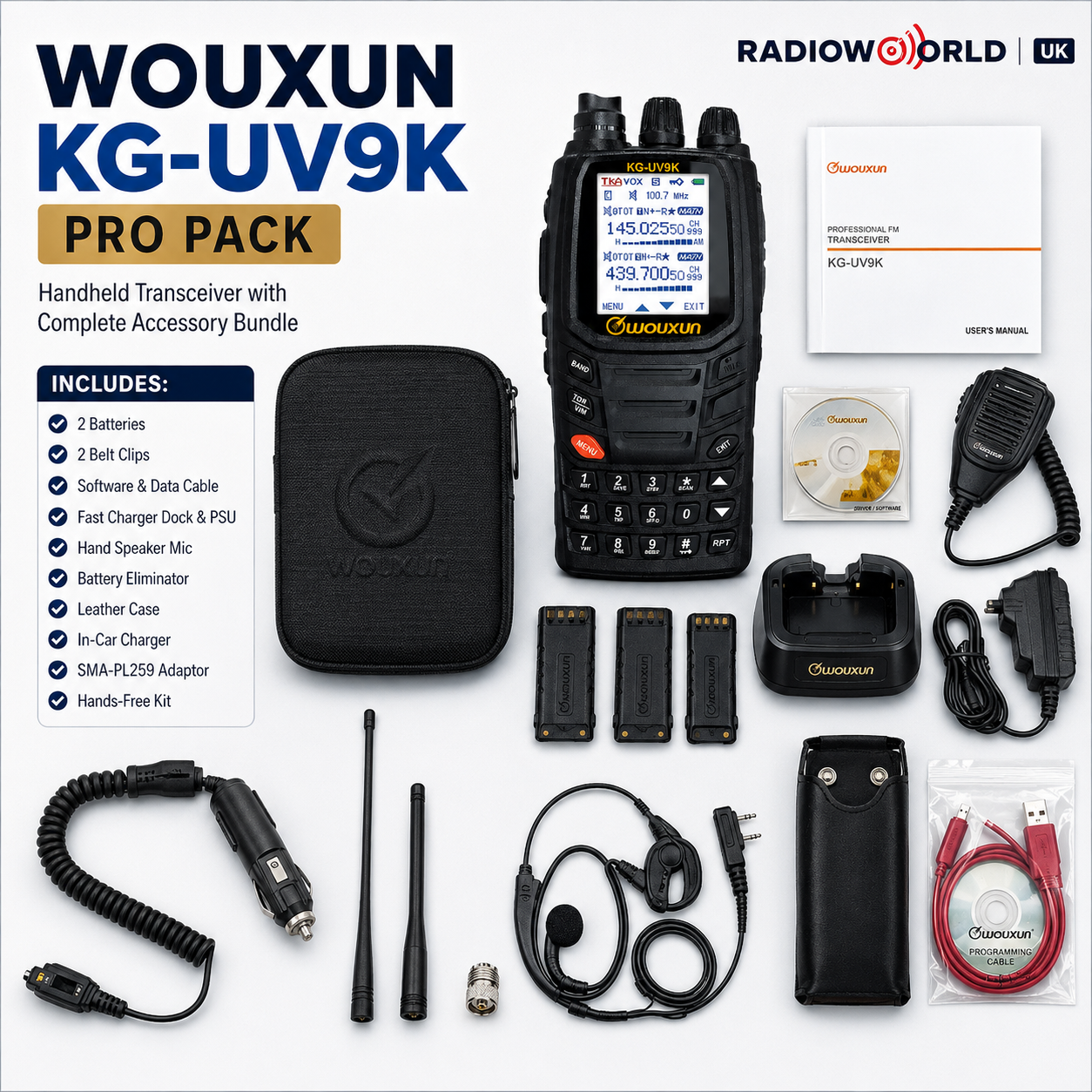

Pro pack contains:

KG-UV9K Transceiver

Two batteries

Two belt-clips

Software and transfer data Cable

Fast charger dock and Power Supply

Hand speaker mic

Battery eliminator

Manual

Wrist strap

Leather case

In-car charger

SMA-PL259 adaptor

Hands-Free kit

FUNCTIONS

main function Cross Band Repeater

main function Large Color Screen

main function Completely turn off display screen background light

main function Completely trun off flickering indicator light

main function Dual Receiving

main function Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)

main function RX on the same/different bands of A&B areas simultaneously

main function Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency

main function Channel Groups Scanning

main function Memory Channels 999

main function QT/DQT Encoding/Decoding,QT/DQT Scan

main function Non-Standard CTCSS can be set arbitrarily

main function VOX and SOS function

main function Reverse Frequency main function mplitude-frequency PTT settings

main function ncoming Message Display Caller ID display

main function DTMF Encoding&Decoding

main function All Calls,Group Calls And Selective Calls

main function PriorRemote Alarmity Scan Function

main function Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)

main function Voice Guide:Chinese/English

main function Chinese/English Screen Display

main function English Channel Name Edit

main function Bright Flashlight illumination

main function Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz

main function Stopwatch

main function Multi Definition for Sidekeys

TECHNICAL SPECIFICATION

Intergration

Frequency Range

suitable for different countries or areas

1 TX: 136-174MHZ(FM)

400-512MHZ(FM)

2 RX: 76-108MHZ(FM)

108-136MHZ(air ground)

136-180MHZ(FM)

230-250MHZ(FM)

350-400MHZ(FM)

400-512MHZ(FM)

700-985MHZ(FM)

Step 2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz

Channel Number 999

Work Mode F2D/F3E

Operating Temperature -20℃~+40℃

Voltage 7.4VDC

Antenna Impedance 50Ω

Weight 490 g

Size 123 x 58 x 31 MM

Receiver

Wide Narrow

Adjacent Channel Selectivity ≤70dB ≤60dB

Inter Modulation ≤65dB ≤60dB

Spurious Response ≤70dB ≤70dB

Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)

Signal to Noise Ratio ≥45dB ≥40dB

Audio Distortion ≤5%

Audio Power ≤500mW

Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB

136-180MHz -119.0dbm SINAD 13dB

230-250MHz -116.0dbm SINAD 13dB

350-400MHz -119.0dbm SINAD 13dB

400-512MHz -119.0dbm SINAD 13dB

700-986MHz -96.0dbm SINAD 12dB

Transmitter

Wide Narrow

Adjacent Channel Selectivity ≥70dB ≥60dB

Type of Modulation 16K F3E 11K F3E

Spurious ≥60dB ≥60dB

Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)

Max Frequency Deviation ±5KHz ±2.5KHz

Frequency Stability ±2.5PPM

Audio Distortion ≤5%

Output Power UHF H:5W , M:2W , L:1W

VHF H:4W , M:2W , L:1W
