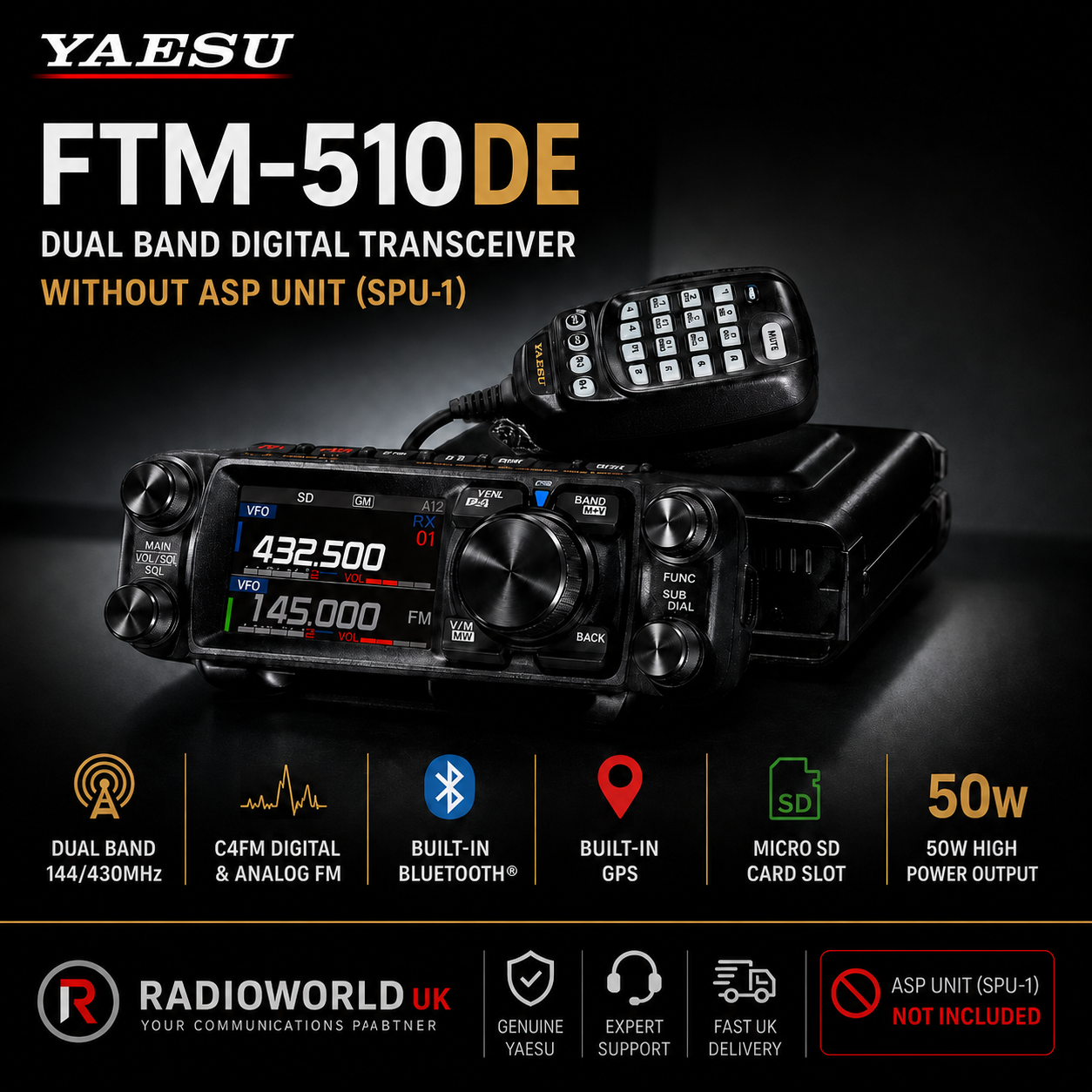

Yaesu FTM-510DE - WITHOUT ASP Unit (SPU-1)

CASHBACK AVAILABLE!

£70.00 cashback available until 30/09/26

Click here to claim cashback.

£509.00
(£424.17 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
View video
509 Reward points
Product code: FTM-510DE/ASPNONE
Download a pdf document for Yaesu FTM-510DE - WITHOUT ASP Unit (SPU-1)

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£599.95
12 Months 14.9% APR
£60.00
£51.70
£680.41
£599.95
18 Months 14.9% APR
£60.00
£34.47
£680.41
£599.95
24 Months 14.9% APR
£60.00
£25.85
£680.41
£599.95
36 Months 14.9% APR
£60.00
£17.23
£680.41
£599.95
48 Months 14.9% APR
£60.00
£12.93
£680.41
£599.95
12 Months 19.5% APR
£60.00
£53.77
£705.24
£599.95
18 Months 19.5% APR
£60.00
£35.85
£705.24
£599.95
24 Months 19.5% APR
£60.00
£26.89
£705.24
£599.95
36 Months 19.5% APR
£60.00
£17.92
£705.24
£599.95
48 Months 19.5% APR
£60.00
£13.44
£705.24

Click here to recommend this product to a friend

Recommend a friend

Yaesu FTM-510DE - WITHOUT ASP Unit (SPU-1)


Trustpilot

The Yaesu FTM-510DE is a powerful and feature-rich 144–430 MHz dual-band mobile transceiver, supporting both C4FM digital and FM analog modes. With a modern design, advanced signal processing, and intuitive operation, it's ideal for amateur radio users looking for reliable mobile communication.

Key Features

  • Dual Band Operation: Covers VHF (144 MHz) and UHF (430 MHz) with selectable power outputs: 5 W, 25 W, and up to 55 W (VHF) / 50 W (UHF).

  • C4FM & FM Modes: Compatible with Yaesu System Fusion for clear digital voice communication.

  • 2.4" Full-Colour Touchscreen: Easy-to-read display with smart navigation and menu control.

  • Detachable Control Head: Includes swing-mount capability for flexible mobile installation.

  • Actual Dual Receive: Allows simultaneous monitoring of two bands.

  • High-Quality Audio: Equipped with AESS (Advanced Speaker System) for loud, clear audio.

  • Digital Features:

    • Built-in GPS receiver

    • APRS support (1200/9600 bps)

    • Spectrum Scope and Band Scope

    • Voice Recording (with microSD)

    • Smart Navigation, DG-ID, Group Monitor

  • Memory & Customisation: Over 1,000 memory channels with customizable groups and quick recall.

  • Connectivity:

    • Optional Bluetooth

    • MicroSD slot for backup, firmware, and voice storage

    • WiRES-X ready (via optional accessories)

Specifications

ParameterDetails
Frequency RangeTX: 144–146 MHz & 430–440 MHz (region dependent)
RX Range108 MHz to ~999 MHz (includes airband reception)
Modulation ModesC4FM, FM, AM (receive)
RF Power Output5 W / 25 W / 55 W (VHF), 50 W (UHF)
Antenna ConnectorSO-239 (50 Ω)
GPS66-channel GPS built-in
APRSYes (1200/9600 bps)
Audio Output6 W (external), 3 W (internal)
Display2.4" TFT colour touch panel
Dimensions (Radio)139 × 42 × 132 mm
Weight (Radio Only)Approx. 1.4 kg
Operating Voltage13.8 V DC
