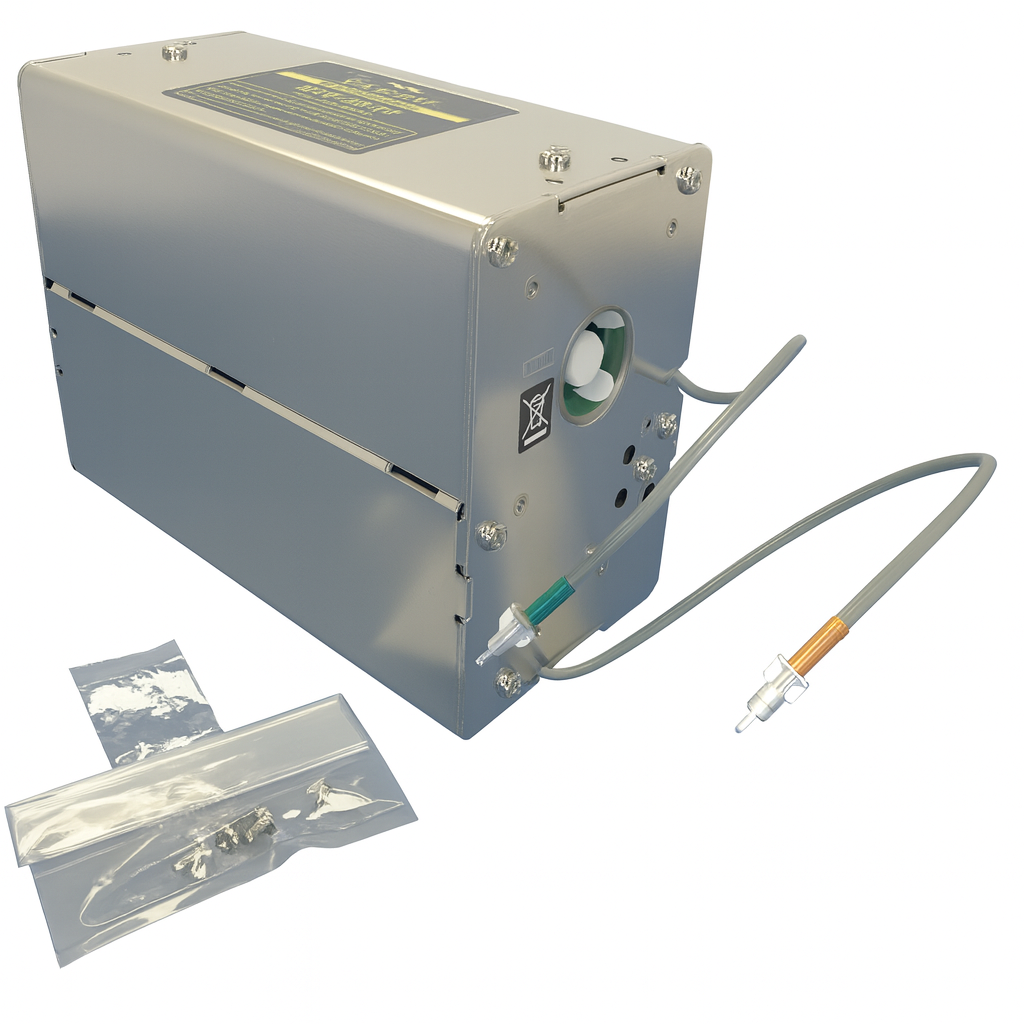

Yaesu MTU‑80/40 RF µ‑Tuning Unit B with SMA leads and accessories
80/40m Yaesu u‑Tune module showing metal housing, cables, and mounting hardware
Click the image to enlarge
Yaesu MTU‑80/40 RF µ‑Tuning Unit B showing metal housing, SMA leads, mounting hardware and accessories
Yaesu MTU‑80/40 RF µ‑Tuning Unit B with SMA leads and accessories
80/40m Yaesu u‑Tune module showing metal housing, cables, and mounting hardware

Yaesu Amateur Radios & Transceivers

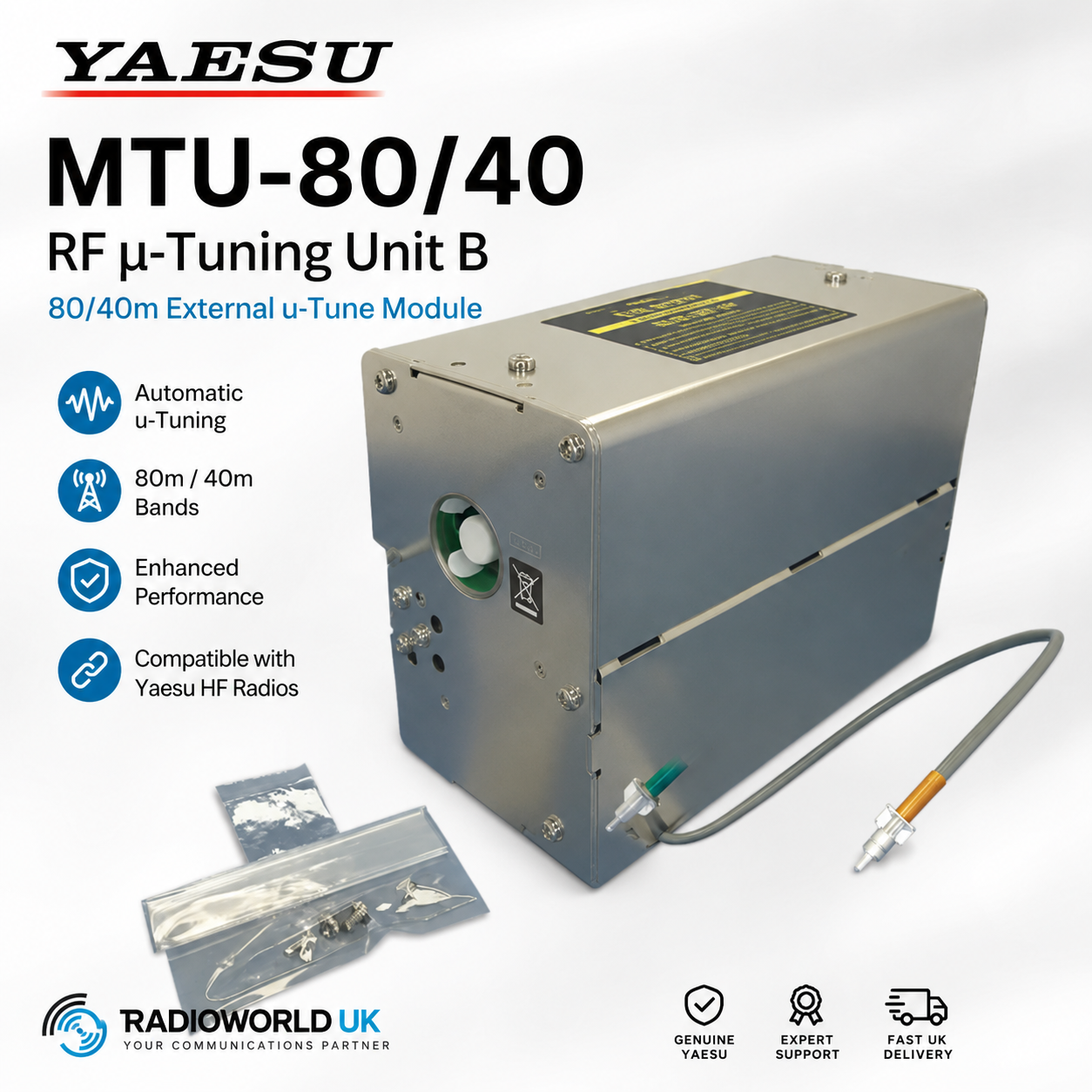

Yaesu MTU‑80/40 RF µ‑Tuning Unit B – 80/40m External u‑Tune Module

£0.00
(£0.00 exc. VAT)
£439.96
(£366.63 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
439 Reward points
Product code: MTU 80 40
Download a pdf document for Yaesu MTU‑80/40 RF µ‑Tuning Unit B – 80/40m External u‑Tune Module

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£439.96
12 Months 14.9% APR
£44.00
£37.91
£498.95
£439.96
18 Months 14.9% APR
£44.00
£25.28
£498.95
£439.96
24 Months 14.9% APR
£44.00
£18.96
£498.95
£439.96
36 Months 14.9% APR
£44.00
£12.64
£498.95
£439.96
48 Months 14.9% APR
£44.00
£9.48
£498.95
£439.96
12 Months 19.5% APR
£44.00
£39.43
£517.17
£439.96
18 Months 19.5% APR
£44.00
£26.29
£517.17
£439.96
24 Months 19.5% APR
£44.00
£19.72
£517.17
£439.96
36 Months 19.5% APR
£44.00
£13.14
£517.17
£439.96
48 Months 19.5% APR
£44.00
£9.86
£517.17

Click here to recommend this product to a friend

Recommend a friend

Yaesu MTU‑80/40 RF µ‑Tuning Unit B showing metal housing, SMA leads, mounting hardware and accessories

Yaesu MTU‑80/40 RF µ‑Tuning Unit B – 80/40m External u‑Tune Module


Trustpilot

The Yaesu MTU‑80/40 RF µ‑Tuning Unit B is designed to suppress noise and intermodulation effects on the 80 m and 40 m amateur bands, improving reception of weak signals. It’s part of a modular µ‑Tuning system (MTU‑160, MTU‑80/40, MTU‑30/20) that connects externally without internal modification.

Using large 28 mm Ni‑Zn ferrite cores driven by a precision stepper motor, the unit achieves a high Q factor over 300, delivering sharp resonance near the operating frequency. This boosts the 3rd‑order Intercept Point (IP3) by 4 dB, enhancing dynamic range and selectivity. The synchro belt drive system is rated for over 10,000 hours of operation.

Compatible with Yaesu FT‑2000, FTDX5000, FTDX9000, and FT‑950 series transceivers. Requires external µ‑Tuning base kit unless internally mounted (FTDX9000 only). The system auto‑re‑centres when re‑engaged after frequency changes.


Technical Specifications:

FeatureSpecification
Frequency Bands80 m and 40 m
Q Factor>300
IP3 Improvement+4 dB
Core TypeNi‑Zn Ferrite, 1.1″ (28 mm) diameter
Motor DrivePrecision stepper motor with synchro belt system
Drive LifeRated for 10,000+ hours
Mounting OptionsExternal (via base kit) or internal (FTDX9000 only)
Compatible TransceiversFT‑2000, FTDX5000, FTDX9000, FT‑950
Auto Re‑centeringYes, when µ‑Tune system is re‑engaged
