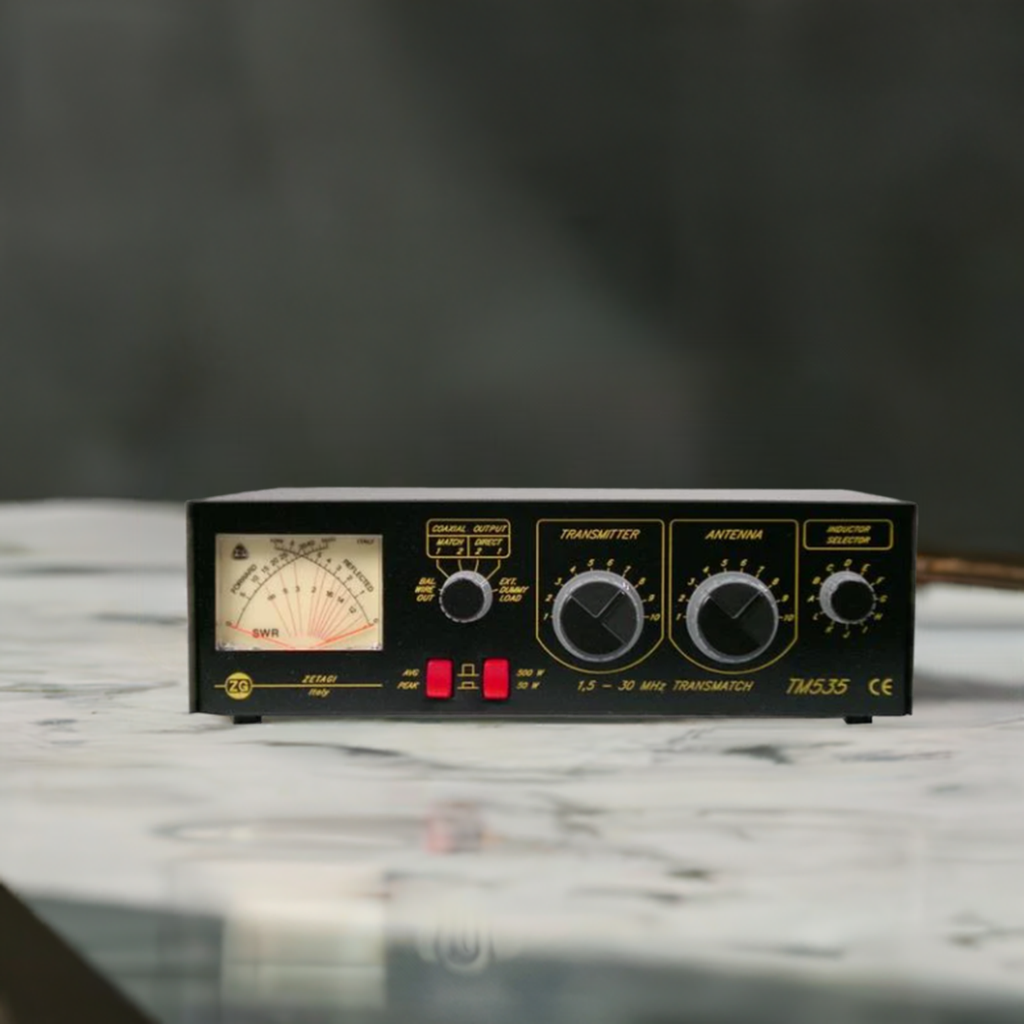

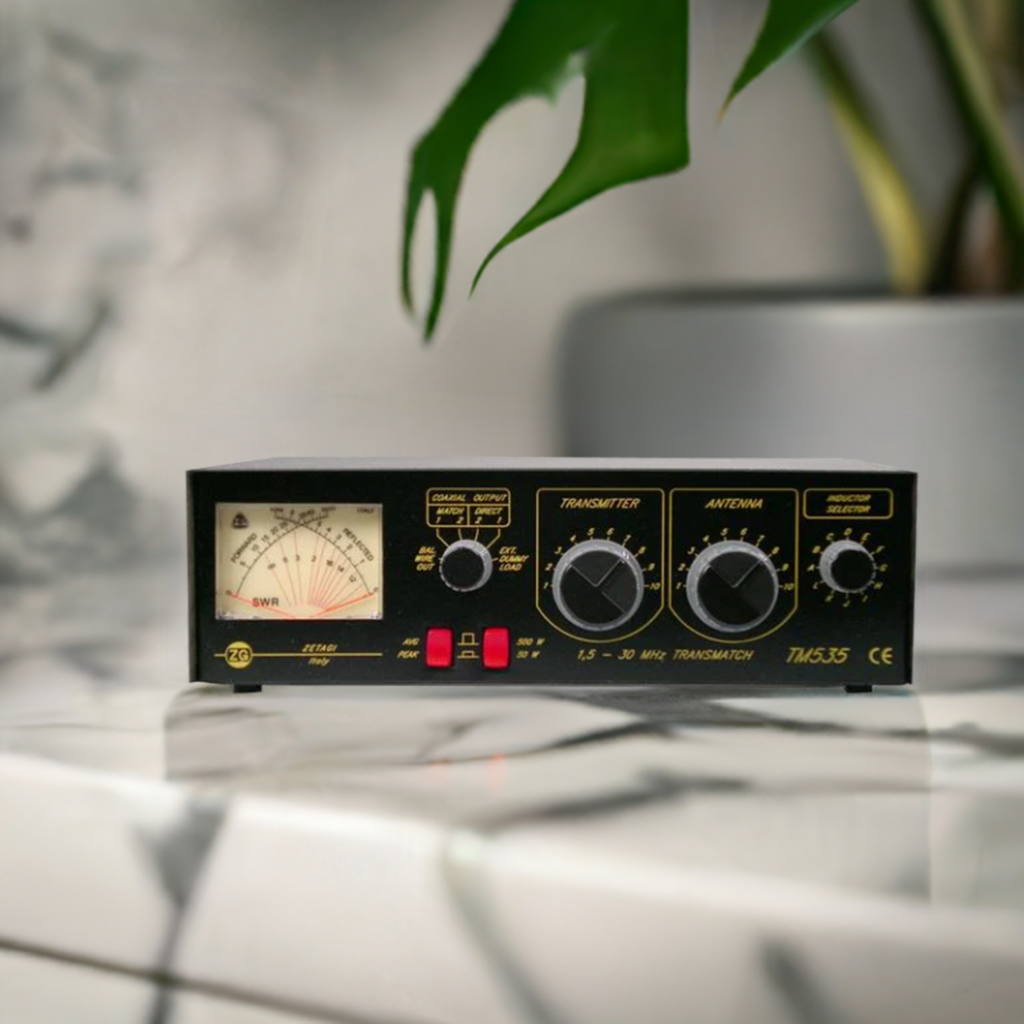

A compact Transmatch meter has been developed to provide direct readings of forward power, reflected power, and SWR without requiring manual adjustments. This innovative device also features an antenna matcher with dual coaxial output impedance capabilities, making it a versatile tool for radio frequency enthusiasts.

Operating within a frequency range of 1.5-30 MHz, this Transmatch meter boasts an input impedance of 50 ohms, ensuring accurate and reliable measurements. The output impedance options include 10-500 ohms for unbalanced setups and 100-3000 ohms for balanced configurations, catering to a wide range of antenna systems.

This Transmatch meter measures power outputs of 50 W or 500 W and is compact at 260mm (width) x 110mm (height) x 190mm (depth). Its user-friendly design and comprehensive technical specifications make it a valuable asset for radio operators seeking precise power and SWR measurements.
