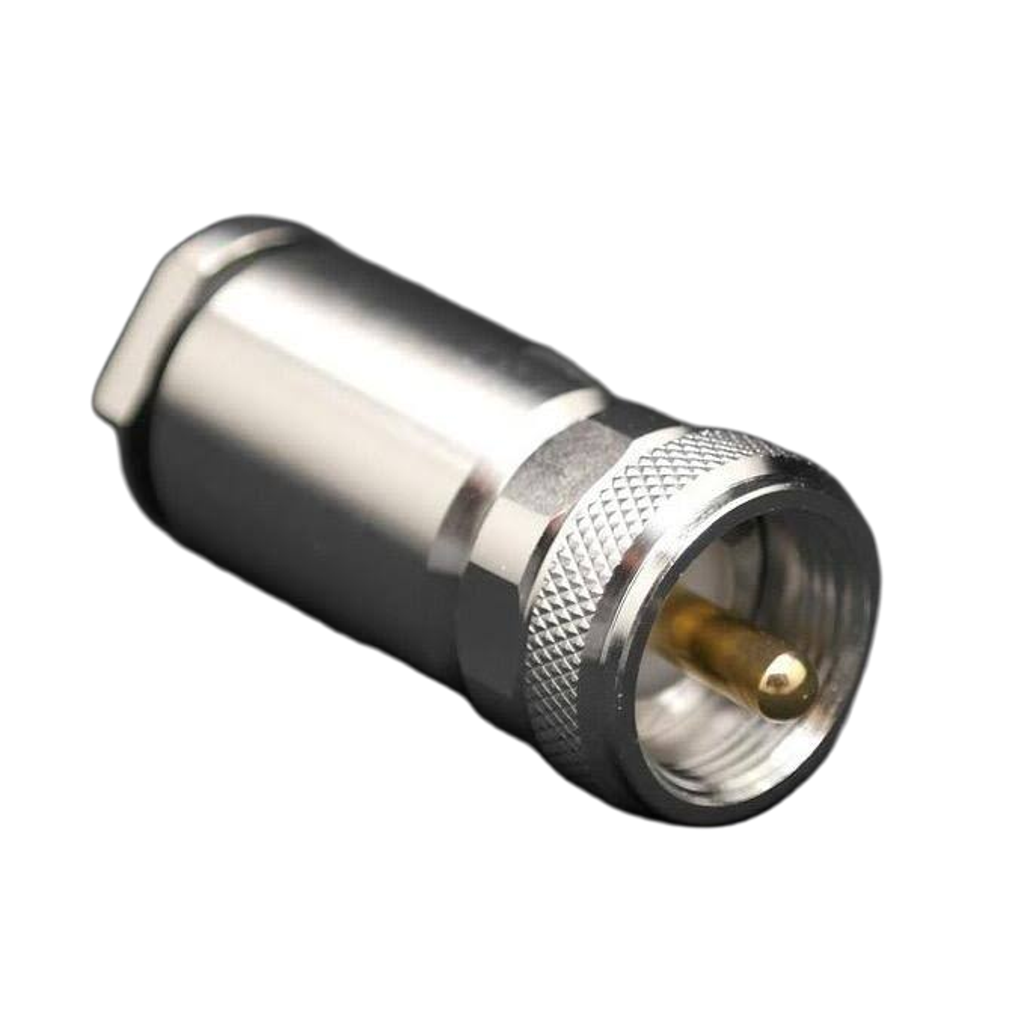

CUHF10M 10.3 mm PL-259 coax plug front view

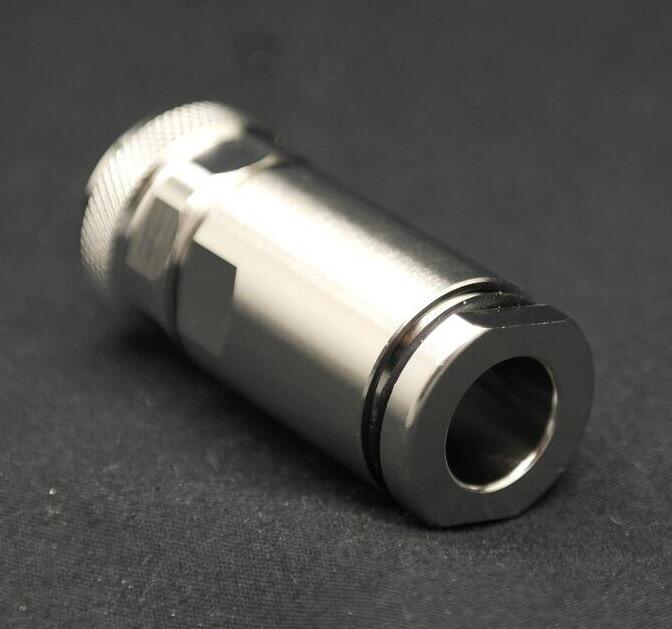

PL-259 connector for I0JXX Flexy 10 and Ultraflex 10 cables

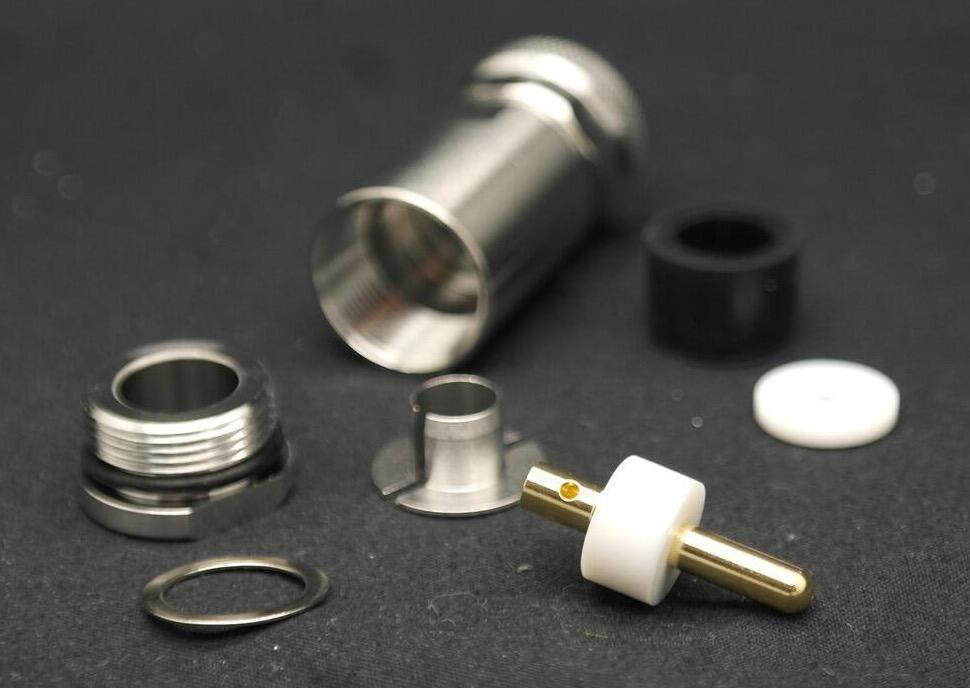

Radioworld UK CUHF10M UHF male connector close-up
Click the image to enlarge
CUHF10M 10.3 mm PL‑259 UHF male connector for Flexy 10 – Radioworld UK
CUHF10M 10.3 mm PL-259 coax plug front view
PL-259 connector for I0JXX Flexy 10 and Ultraflex 10 cables
Radioworld UK CUHF10M UHF male connector close-up

I0JXX Antennas – Coaxial Cables & Accessories.

CUHF10M 10.3 mm PL-259 Coax Plug – Male UHF Connector for Flexy 10 & Ultraflex 10 Coaxial Cable | Radioworld UK

£0.00
(£0.00 exc. VAT)
£6.49
(£5.41 exc. VAT)
In Stock
Qty:
ADD TO WISHLIST
6 Reward points
Product code: CUHF10M
Download a pdf document for CUHF10M 10.3 mm PL-259 Coax Plug – Male UHF Connector for Flexy 10 & Ultraflex 10 Coaxial Cable | Radioworld UK

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£6.49
12 Months 14.9% APR
£0.65
£0.56
£7.36
£6.49
18 Months 14.9% APR
£0.65
£0.37
£7.36
£6.49
24 Months 14.9% APR
£0.65
£0.28
£7.36
£6.49
36 Months 14.9% APR
£0.65
£0.19
£7.36
£6.49
48 Months 14.9% APR
£0.65
£0.14
£7.36
£6.49
12 Months 19.5% APR
£0.65
£0.58
£7.63
£6.49
18 Months 19.5% APR
£0.65
£0.39
£7.63
£6.49
24 Months 19.5% APR
£0.65
£0.29
£7.63
£6.49
36 Months 19.5% APR
£0.65
£0.19
£7.63
£6.49
48 Months 19.5% APR
£0.65
£0.15
£7.63

Click here to recommend this product to a friend

Recommend a friend

CUHF10M 10.3 mm PL‑259 UHF male connector for Flexy 10 – Radioworld UK

CUHF10M 10.3 mm PL-259 Coax Plug – Male UHF Connector for Flexy 10 & Ultraflex 10 Coaxial Cable | Radioworld UK


Trustpilot

The CUHF10M PL-259 Coax Plug is a precision-engineered 50 Ω UHF male connector designed specifically for use with 10.3 mm coaxial cables, including the I0JXX Flexy 10 and Messi & Paoloni Ultraflex 10.

Built for professional-grade RF performance, the CUHF10M ensures low insertion loss, tight mechanical fit, and excellent impedance consistency across the HF, VHF, and UHF bands. Its robust nickel-plated brass body, gold-plated centre pin, and PTFE dielectric guarantee superior conductivity, heat resistance, and long-term reliability even under high-power operation.

Ideal for amateur-radio base stations, SDR transceivers, linear amplifiers, and antenna feedlines, this connector provides a secure termination for large-diameter 10.3 mm cables such as Flexy 10 and Ultraflex 10, delivering dependable performance for years of service.

Key Features

  • Premium PL-259 (UHF male) connector for 10.3 mm 50 Ω coax

  • Compatible with:

    • I0JXX Flexy 10 Coaxial Cable

    • Messi & Paoloni Ultraflex 10 Coaxial Cable

  • Frequency range: DC – 500 MHz (HF/VHF/UHF)

  • Impedance: 50 Ω

  • Nickel-plated brass shell – corrosion-resistant and durable

  • Gold-plated centre pin – maximum signal conductivity

  • PTFE (Teflon) dielectric – stable, high-temperature insulation

  • Solder termination for secure, professional assembly

  • Precision 5/8-24 thread – fits all standard SO-239 sockets

  • Perfect for HF amplifiers, base transceivers, SDR systems, and test cables

Technical Specifications

SpecificationDetails
ModelCUHF10M
TypeUHF Male (PL-259) Connector
Cable Compatibility10.3 mm 50 Ω coaxial cables
Compatible CablesI0JXX Flexy 10, Messi & Paoloni Ultraflex 10
Frequency RangeDC – 500 MHz
Impedance50 Ω
Body MaterialNickel-plated brass
Centre PinGold-plated brass
DielectricPTFE (Teflon)
Connection TypeSolder
Operating Temperature–55 °C to +155 °C
ManufacturerCUHFM Connectors, Italy
ApplicationsAmateur radio, SDR, HF/VHF/UHF systems, RF labs
