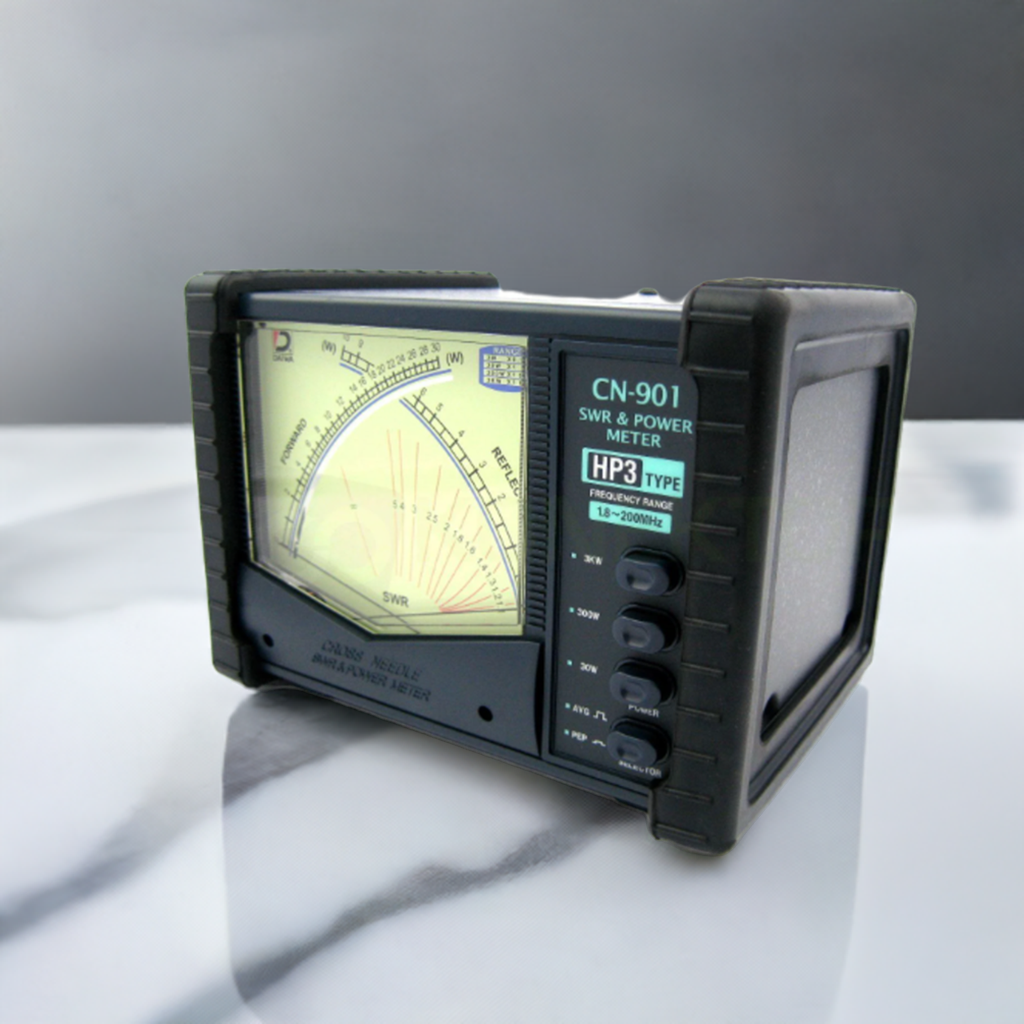

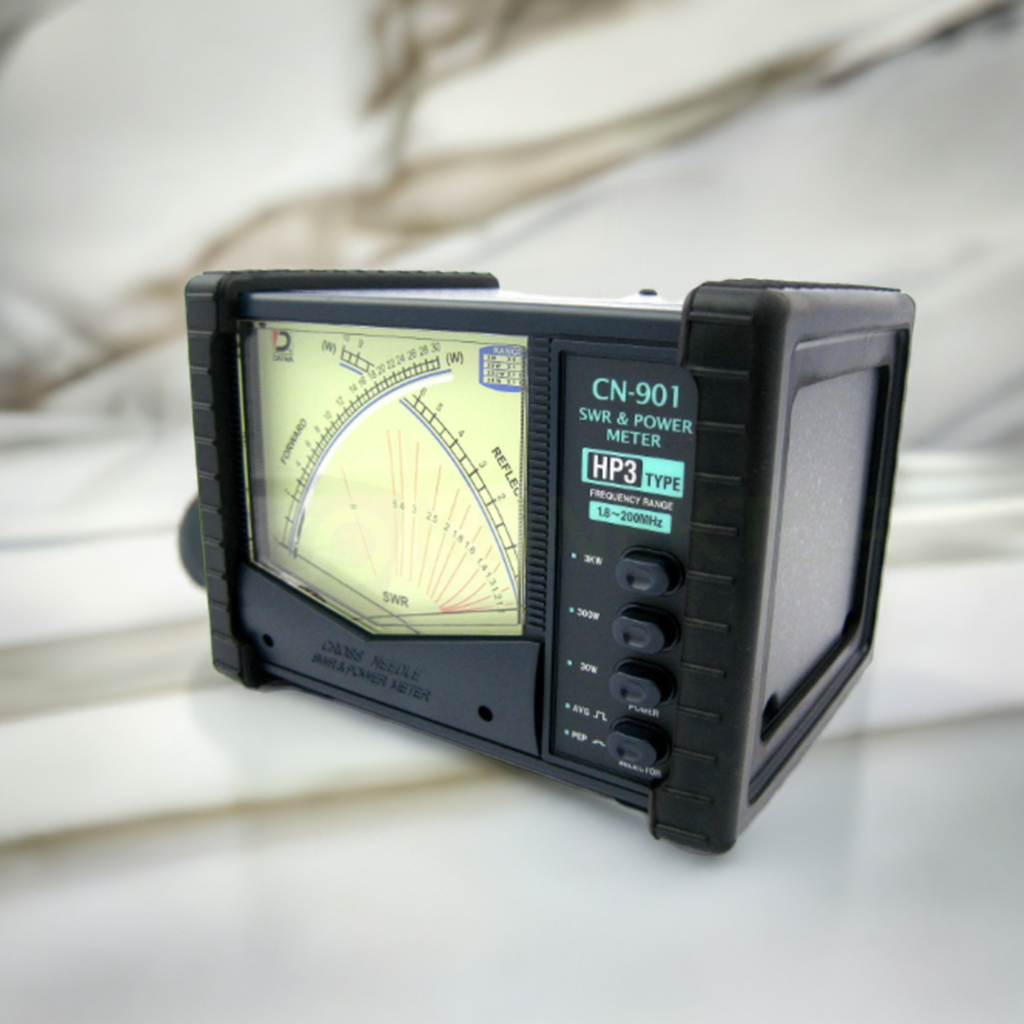

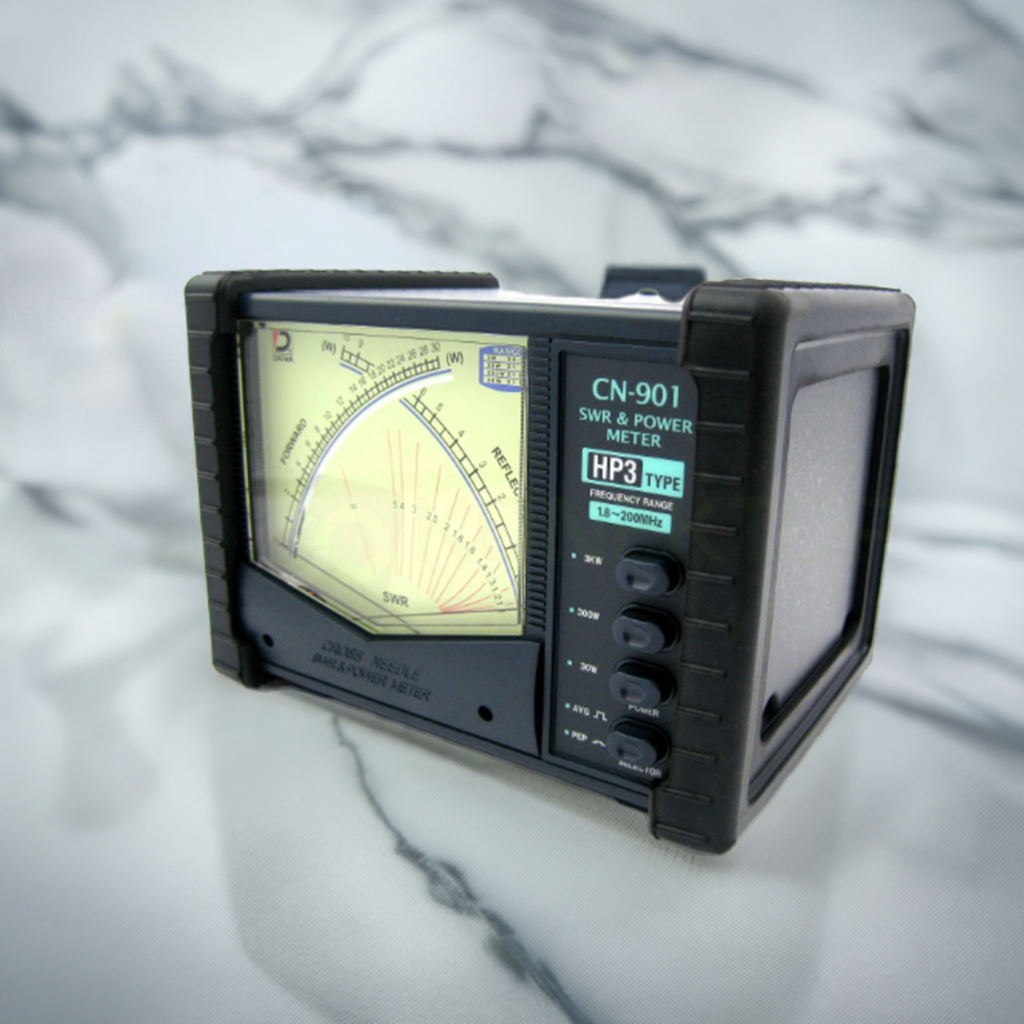

Daiwa CN901‑HP3 3kW HF/VHF SWR and Power Meter – front view
Daiwa CN901‑HP3 3kW HF/VHF SWR and Power Meter – front view
Daiwa CN901‑HP3 large cross‑needle display showing SWR and power readings
Daiwa CN901‑HP3 SWR meter – clear forward and reverse power scale
Daiwa CN901‑HP3 rear panel with PEP and illumination switches
Daiwa CN901‑HP3 1.8–200MHz high‑power SWR and power meter with SO‑239 connectors
Click the image to enlarge
Daiwa CN901‑HP3 3kW HF/VHF SWR and Power Meter – front view
Daiwa CN901‑HP3 large cross‑needle display showing SWR and power readings
Daiwa CN901‑HP3 SWR meter – clear forward and reverse power scale
Daiwa CN901‑HP3 rear panel with PEP and illumination switches
Daiwa CN901‑HP3 1.8–200MHz high‑power SWR and power meter with SO‑239 connectors

Daiwa radio products - SWR & Power Meters - HAM Radio Essentials

Daiwa CN901-HP3 is a higher power 3kW 1.8-200MHz power and SWR meter.

£179.95
(£149.96 exc. VAT)
£189.95
(£158.29 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
179 Reward points
Product code: CN901HP3
Download a pdf document for Daiwa CN901-HP3 is a higher power 3kW 1.8-200MHz power and SWR meter.

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£189.95
12 Months 14.9% APR
£18.99
£16.37
£215.42
£189.95
18 Months 14.9% APR
£18.99
£10.91
£215.42
£189.95
24 Months 14.9% APR
£18.99
£8.18
£215.42
£189.95
36 Months 14.9% APR
£18.99
£5.46
£215.42
£189.95
48 Months 14.9% APR
£18.99
£4.09
£215.42
£189.95
12 Months 19.5% APR
£18.99
£17.02
£223.28
£189.95
18 Months 19.5% APR
£18.99
£11.35
£223.28
£189.95
24 Months 19.5% APR
£18.99
£8.51
£223.28
£189.95
36 Months 19.5% APR
£18.99
£5.67
£223.28
£189.95
48 Months 19.5% APR
£18.99
£4.26
£223.28

Click here to recommend this product to a friend

Recommend a friend

Daiwa CN901‑HP3 3kW HF/VHF SWR and Power Meter – front view

Daiwa CN901-HP3 is a higher power 3kW 1.8-200MHz power and SWR meter.


Trustpilot

The Daiwa CN901‑HP3 is a high‑power, professional‑grade SWR and power meter designed for accurate measurement across the 1.8–200MHz HF/VHF spectrum. With an extended 30W / 300W / 3000W power range, it is ideal for high‑power HF stations, amplifiers, and demanding amateur radio setups.

Its extra‑large cross‑needle display provides clear, simultaneous readings of Forward Power, Reflected Power, and SWR, with the SWR value shown precisely at the needle crossover point. This latest version includes rear‑panel switches for PEP (Peak Envelope Power) measurement during SSB operation and meter illumination for low‑light environments.

Built with SO‑239 connectors, a rugged metal chassis, and a compact footprint, the CN901‑HP3 delivers dependable performance for both base and portable operation. With a 50Ω impedance, 5W SWR detection sensitivity, and ±10% full‑scale accuracy, it is engineered for operators who require precision and reliability at higher power levels.

Technical Specifications

SpecificationDetails
Frequency Range1.8 – 200MHz
Power Ranges30W / 300W / 3000W (±10% full scale)
SWR Measurement Range1:1 – 1:8
SWR Detection Sensitivity5W
Impedance50Ω
ConnectorsSO‑239
PEP MeasurementYes – rear‑panel switch
IlluminationYes – rear‑panel switch
Power Requirement13.8V DC (70mA)
Dimensions157(W) × 112(H) × 116(D) mm
Weight1kg
