Diamond WD-330S | Broadband HF Terminated Folded Dipole Antenna

The Diamond WD-330S is a commercial-grade HF antenna designed for wideband operation from 2 to 28.6 MHz. Built on the T2FD (Tilted Terminated Folded Dipole) principle, it offers consistent impedance and directional radiation across a broad frequency range—ideal for amateur and professional HF communication.

Delivered fully assembled and pre-tuned, the WD-330S eliminates the need for measuring or cutting during installation. It features PVC-covered stranded copper wire, fibreglass spreaders, a matching network, and a balun, with a 25m rope included for flexible mounting.

Installation Options:

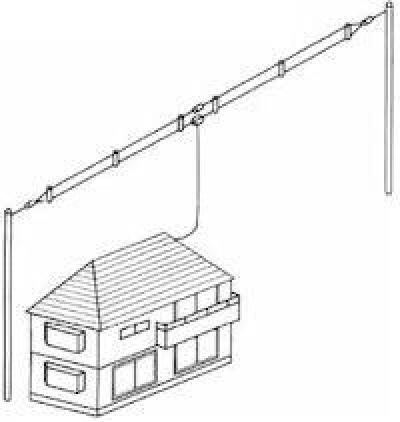

• Flat-top (recommended)

• Inverted V

• Sloper configuration

Key Specs:

• Frequency Range: 2–28.6 MHz

• Impedance: 50 Ohm

• SWR: <2:1 to <3:1 (no transmatch required)

• Connector: SO-239

• Power Handling: 150W PEP

• Radiator Length: 10m (32ft)

• Weight: ~2.1kg

• Radiation Pattern: Directional

Highlights:

• Broadband HF coverage without tuning

• Ideal for DXing, monitoring, and multi-band operation

• Compact and efficient for limited-space installations.
