Diamond WD-330  T2FD Folded Dipole 2 - 30 Mhz
Click the image to enlarge

Diamond Antenna Corporation | Products

Diamond WD-330 T2FD Folded Dipole 2 - 30 Mhz

£0.00
(£0.00 exc. VAT)
£239.99
(£199.99 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
0 Reward points
Product code: WD-330
Download a pdf document for Diamond WD-330 T2FD Folded Dipole 2 - 30 Mhz

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£239.99
12 Months 14.9% APR
£24.00
£20.68
£272.17
£239.99
18 Months 14.9% APR
£24.00
£13.79
£272.17
£239.99
24 Months 14.9% APR
£24.00
£10.34
£272.17
£239.99
36 Months 14.9% APR
£24.00
£6.89
£272.17
£239.99
48 Months 14.9% APR
£24.00
£5.17
£272.17
£239.99
12 Months 19.5% APR
£24.00
£21.51
£282.11
£239.99
18 Months 19.5% APR
£24.00
£14.34
£282.11
£239.99
24 Months 19.5% APR
£24.00
£10.75
£282.11
£239.99
36 Months 19.5% APR
£24.00
£7.17
£282.11
£239.99
48 Months 19.5% APR
£24.00
£5.38
£282.11

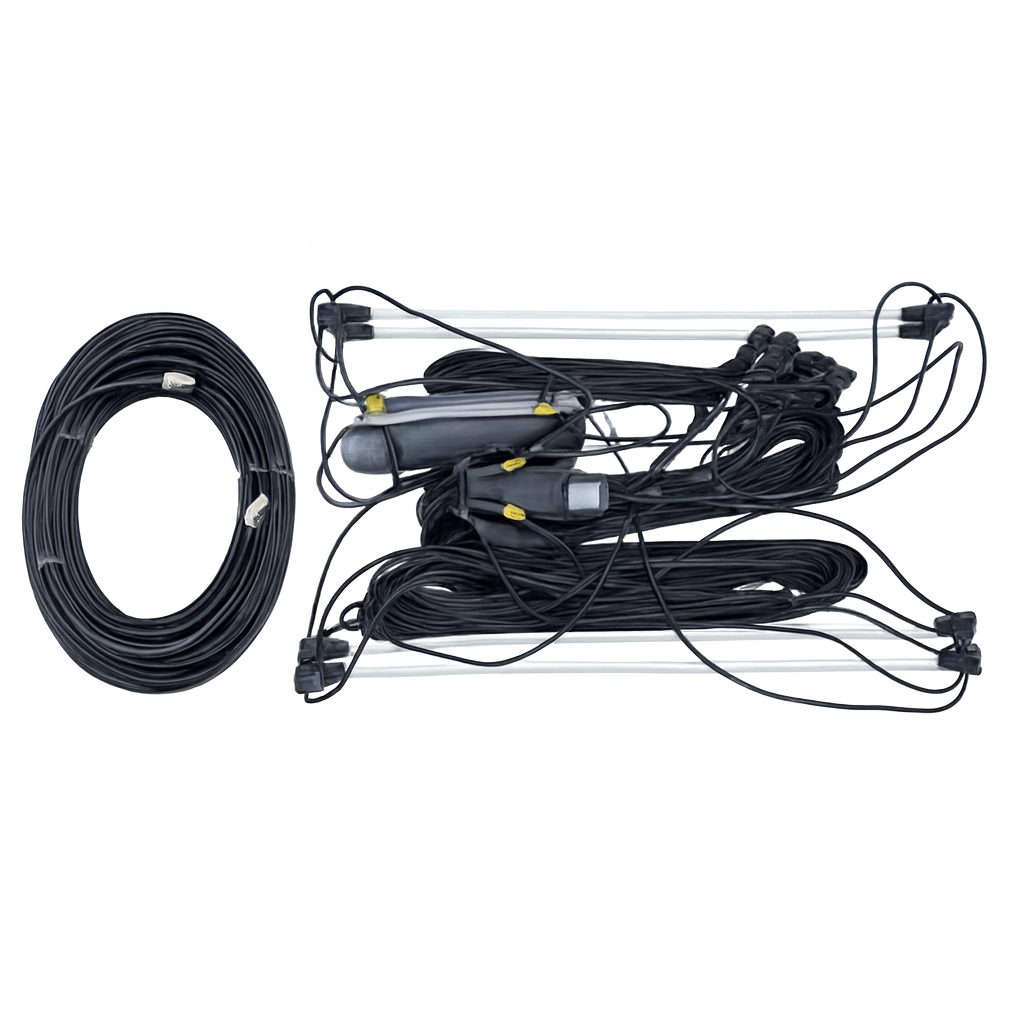

The Diamond WD-330 is a complete antenna built to professional standards. It is a Wide band folded dipole ( the same type used by the Military for frequency hopping) and is designed to operate from 1.8 MHz to 30 MHz continuously with SWR below 2:1 For transmitting the antenna can be matched on any frequency down to 1:1 SWR with an external ATU - but on the Amateur bands this should not be needed.This antenna is power rated at 150 watts PEP and can be installed in horizontal form (flat-top), in "V" inverted or inclined with the lower end fixed to within 02m from the ground. The Diamond D-330 is constructed from vinyl coated #14 copper wire and has an intermediate insulator cover protected with epoxy resin..

Antenna consists of : S0-239 type connector, 2 x Insulators, 30 m of top quality co-axial feeder cable (5D-2V) with fitted PL259 plugs are all included in the kit.

NOTE: WD-330J is same antenna but without coax supplied.

SPECIFICATIONS

Frequency range - 1.8 Mhz-30 MHz

Power 150 w (PEP)

Impedance 50 Ohms

Length 25 m

SWR 2:1 (from 1.8 to 4.9 MHz)

SWR 1.5:1 (from 5 to 15.9 MHz)

SWR 2.0 :1 (from 16 to 30 MHz)
