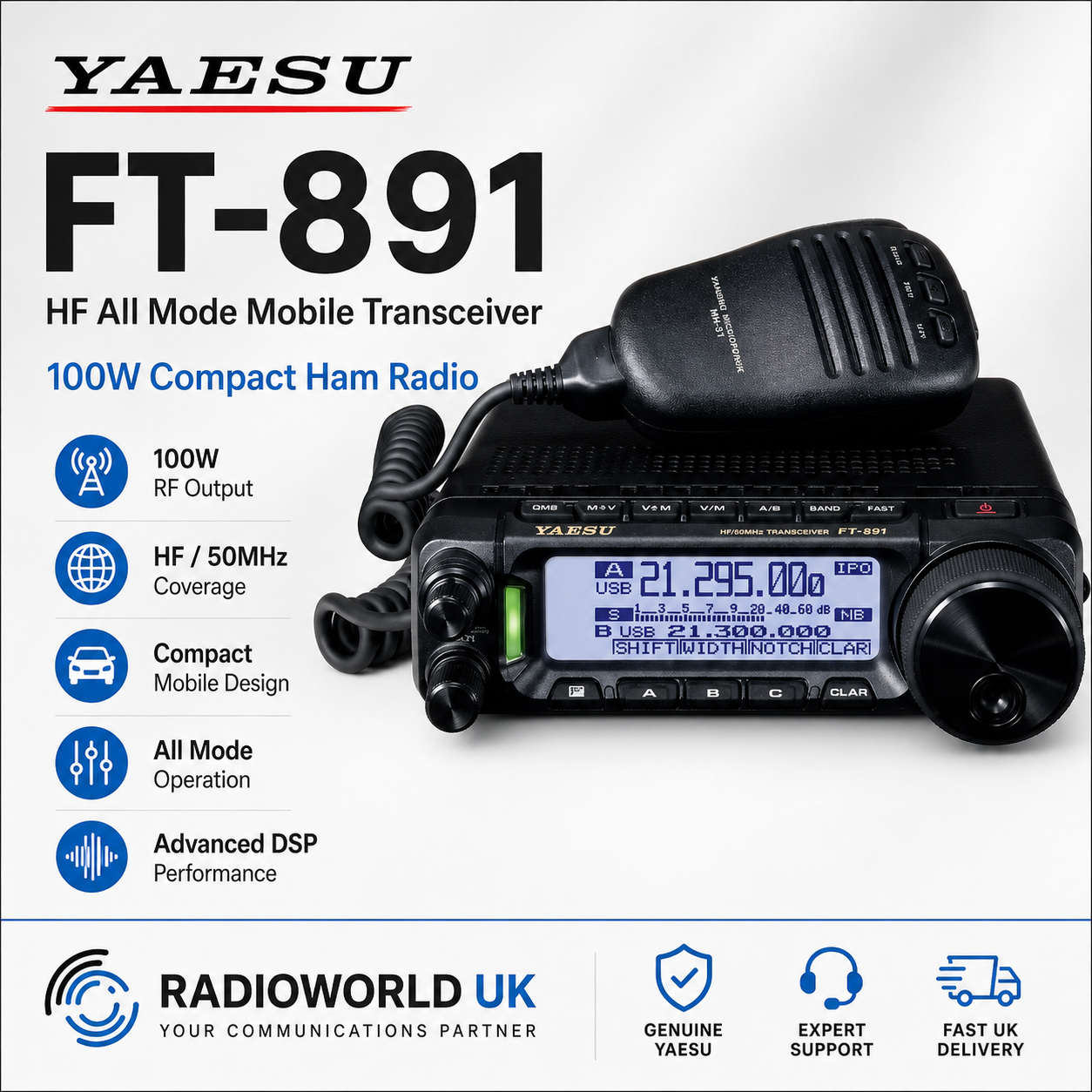

Yaesu FT-891 HF All Mode Mobile Transceiver – 100W Compact Radio

The Yaesu FT-891 HF All Mode Mobile Transceiver is a compact yet powerful radio that continues the legacy of Yaesu’s renowned receiver design. Offering uncompromising performance for both mobile and stationary amateur operators, it delivers a clean, clear signal and an enjoyable operating experience in a rugged, ultra-compact form factor.

At the heart of the FT-891 is a high-end 32-bit floating-point DSP, providing advanced signal processing for improved clarity, reduced operator fatigue, and effective noise reduction on the HF bands. The receiver circuit features triple conversion with a 1st IF of 69.450 MHz for SSB/CW/AM modes and includes a 3 kHz roofing filter as standard. A high-stability TCXO (±0.5 ppm from -10 °C to +50 °C) ensures excellent frequency accuracy.

The FT-891 delivers a stable 100 W (25 W AM) of RF output power, supported by a carefully engineered PA stage, thermostatically controlled dual internal fans, and a die-cast heat-transferring chassis for long-term reliability. The 32-bit IF DSP provides powerful QRM rejection, random noise reduction, AUTO NOTCH (DNF) for beat tone elimination, and CONTOUR/APF functions to enhance weak signals during HF operation. A native USB port allows full rig control via a virtual COM port (VCP), making it ideal for modern digital and computer-controlled setups.

Designed for ease of use, the FT-891 features a large main tuning dial, intuitive pop-up menu system, multi-function knob, large TX/RX indicator, and three programmable front-panel function keys. It fully supports the ATAS-25 and ATAS-120A Active Tuning Antenna Systems for true plug-and-play field and mobile operation. Despite its feature set, the FT-891 remains ultra-compact and rugged, measuring just 155 x 52 x 218 mm.

When paired with the optional FC-50 Antenna Tuner Unit, specifically designed for the FT-891, this transceiver becomes a highly flexible HF/6m solution for base, mobile, or portable use.

What’s in the Box

• FT-891 HF All Mode Mobile Transceiver
• DC Power Cable
• MH-31 Microphone
• Mobile Mounting Bracket
• FT-891 User Manual
• Warranty: 3-year warranty (when purchased new)

Technical Specifications

• Frequency Range (TX): 1.8 – 54.0 MHz
• Frequency Range (RX): 30 kHz – 56 MHz
• Modes of Emission: A1A (CW), A3E (AM), J3E (LSB/USB), F3E (FM)
• Antenna Impedance: 50 Ω unbalanced
• Supply Voltage: 13.8 V DC ±15%, negative ground
• Current Consumption: 2.0 A (RX), 23 A (TX)
• Operating Temperature Range: -10 °C to +50 °C
• Dimensions (W x H x D): 155 x 52 x 218 mm (6.1" x 2.0" x 8.6")
• Weight: approx. 1.9 kg (4.18 lbs)
• Output Power: 100 W (SSB/CW/FM), 25 W (AM)

Receiver

• Conversion: Triple conversion (SSB/CW/AM), double conversion (FM)
• 1st IF (SSB/CW/AM): 69.450 MHz
• Roofing Filter: 3 kHz (standard)
• DSP: 32-bit IF DSP with noise reduction, AUTO NOTCH (DNF), CONTOUR, APF
• Audio Output Impedance: 4 – 16 Ω (nominal 8 Ω)
• Maximum AF Output: 2.5 W (approx.)

Features & Connectivity

• DSP Functions: QRM reduction, random noise reduction, AUTO NOTCH, CONTOUR, APF
• Stability: TCXO ±0.5 ppm (-10 °C to +50 °C)
• Cooling: Thermostatically controlled dual internal fans
• Chassis: Die-cast heat-transferring design
• USB Port: Native USB for CAT control via virtual COM port
• Antenna Systems: Full support for ATAS-25 and ATAS-120A
• Optional Tuner: Compatible with FC-50 Antenna Tuner Unit
• Controls: Large main tuning dial, multi-function knob, pop-up menu, 3 programmable keys
