Gigatronix coax

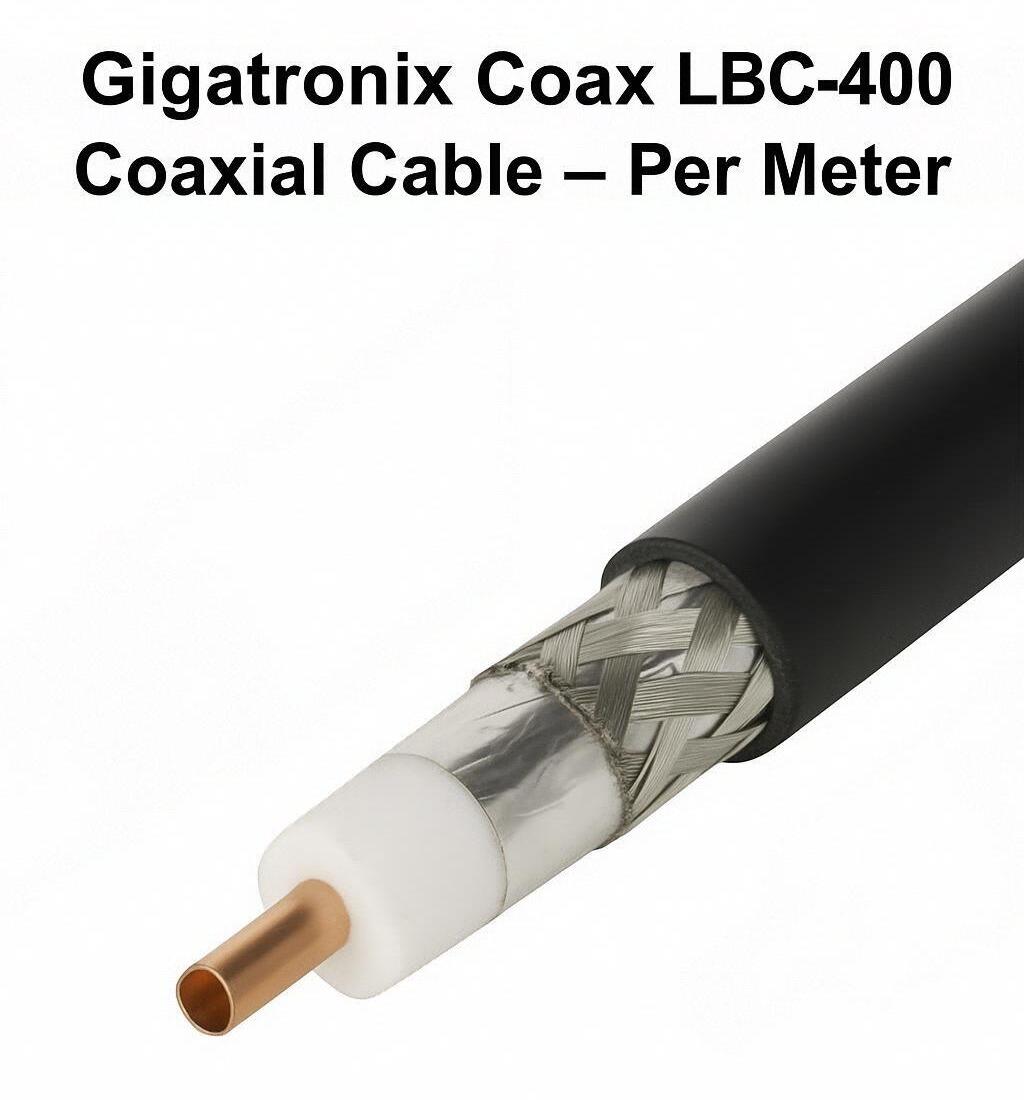

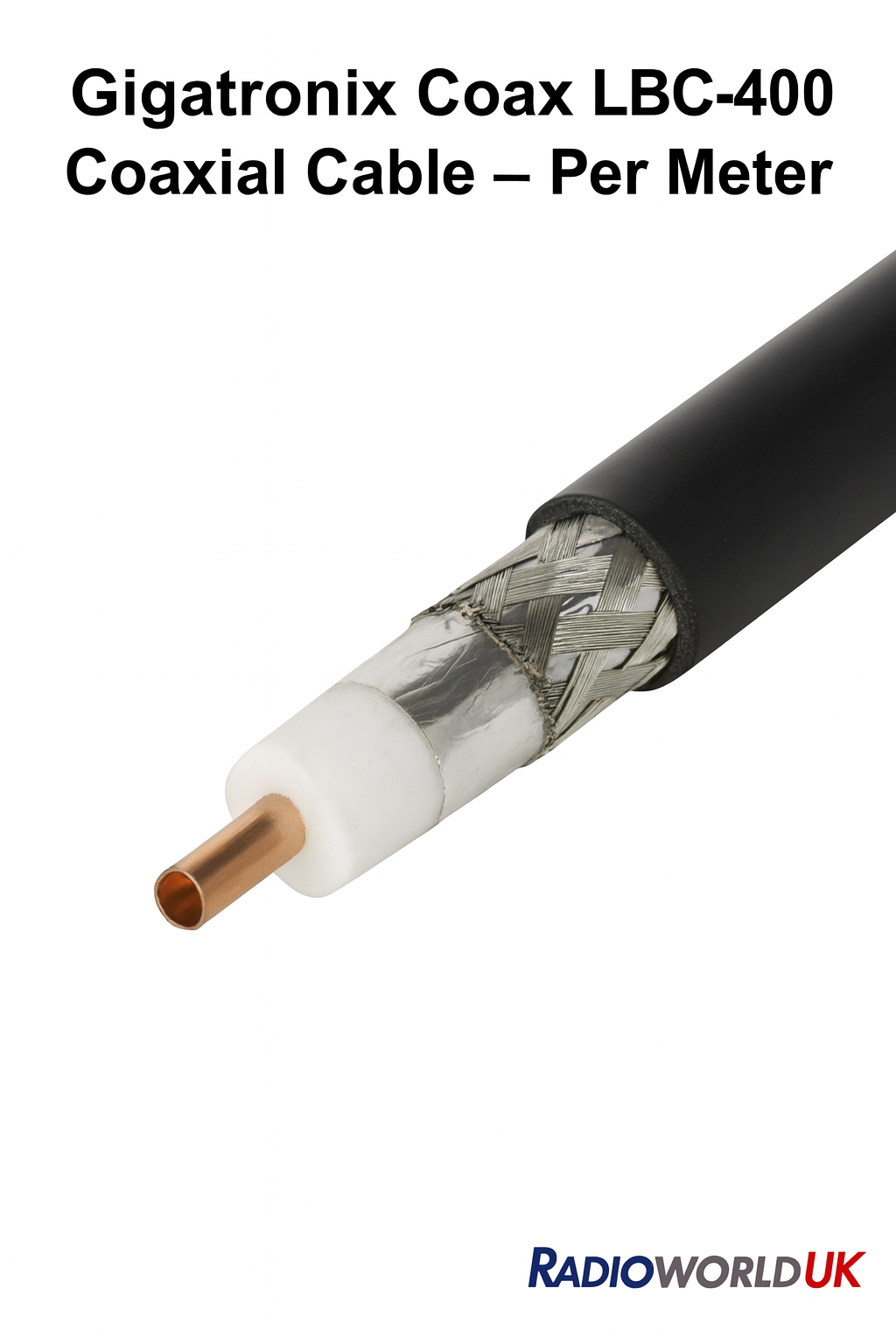

LBC-400 coax cable, sold per metre
LBC-400 coax cable, sold per metre
Gigatronix coax
LBC-400 coax cable, sold per metre
£2.03 (£1.69 exc. VAT)
Download a PDF document for LBC-400 coax cable, sold per metre
Fast UK
delivery
Worldwide
delivery
Add to wishlist
Product code:LBC-400-1m
Brand:Gigatronix coax

Electrical

Max. Frequency11 GHz
Impedance50 ohms
Capacitance77.1 pF/m
Velocity Of Propagation85%

Environmental

RoHS CompliantYes
Temperature Range-40 to +85 degrees C

Material

Inner ConductorBare Copper Clad Aluminium
DielectricPhysical Foam Polyethylene
Outer ConductorBonded Aluminium Foil
Overall BraidTinned Copper
JacketBlack Polyethylene

Mechanical

Inner Conductor Diameter2.74mm
Dielectric Diameter7.24mm
Outer Conductor 1 Diameter7.39mm
Outer Conductor 2 Diameter8.13mm
Jacket Diameter10.29mm
Bending Radius Static25mm
Bending Radius Flexing103mm
Weight100
