LBC195 LOW LOSS COAXIAL CABLE - 100 metre drum
Click the image to enlarge

Gigatronix coax

LBC195 LOW LOSS COAXIAL CABLE - 100 metre drum

£0.00
(£0.00 exc. VAT)
£99.95
(£83.29 exc. VAT)
In Stock
Qty:
ADD TO WISHLIST
0 Reward points
Product code: LBC195 LOW LOSS COAX 100 metre d
Download a pdf document for LBC195 LOW LOSS COAXIAL CABLE - 100 metre drum

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£99.95
12 Months 14.9% APR
£9.99
£8.61
£113.35
£99.95
18 Months 14.9% APR
£9.99
£5.74
£113.35
£99.95
24 Months 14.9% APR
£9.99
£4.31
£113.35
£99.95
36 Months 14.9% APR
£9.99
£2.87
£113.35
£99.95
48 Months 14.9% APR
£9.99
£2.15
£113.35
£99.95
12 Months 19.5% APR
£9.99
£8.96
£117.49
£99.95
18 Months 19.5% APR
£9.99
£5.97
£117.49
£99.95
24 Months 19.5% APR
£9.99
£4.48
£117.49
£99.95
36 Months 19.5% APR
£9.99
£2.99
£117.49
£99.95
48 Months 19.5% APR
£9.99
£2.24
£117.49

Electrical

Max. Frequency 11 GHz

Impedance 50 ohms

Capacitance 79.7 pF/m

Velocity Of Propagation 80%

K1 0.000000

K2 0.000000

Environmental

RoHS Compliant Yes

Temperature Range -20 to +75 degrees C

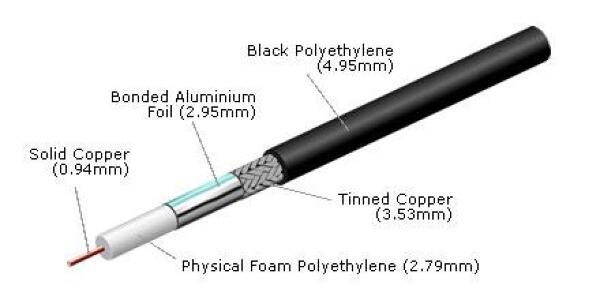

Material

Inner Conductor Solid Copper

Dielectric Physical Foam Polyethylene

Outer Conductor Bonded Aluminium Foil

Overall Braid Tinned Copper

Jacket LSZH Black PE

Mechanical

Inner Conductor Diameter 0.94mm

Dielectric Diameter 2.79mm

Outer Conductor 1 Diameter 2.95mm

Outer Conductor 2 Diameter 3.53mm

Jacket Diameter 4.95mm

Bending Radius Static 12.4mm

Bending Radius Flexing 49.5mm

Weight 36 gms/m
