Maco M106C‑HV – 6‑Element Dual Beam Base Antenna


Trustpilot

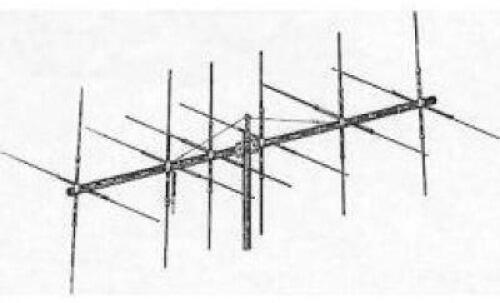

Maco M106C‑HV – 6‑Element Dual Beam Base Antenna

The Maco M106C‑HV is part of Maco’s Maximum Beam series — a premium line of base station antennas engineered for serious CB enthusiasts and 10 m amateur radio operators. This dual‑beam design is essentially two full beam antennas on one boom, allowing both horizontal and vertical polarisation from a single feed line. That means you can adapt instantly to changing propagation conditions or communication needs without swapping antennas.

Key Features

  • Frequency Coverage: Tunable for 10 m (28 MHz) and 11 m (26–27 MHz)

  • Design: 6‑element dual beam (two beams on one boom)

  • Polarisation: Horizontal & vertical (switchable)

  • Gain: ~17 dB (≈ 50× power multiplication)

  • Front‑to‑Back Separation: ~31 dB

  • Power Handling: 2 kW PEP standard (upgradeable to 5 kW, 10 kW, or 30 kW with optional gamma match)

  • VSWR: Adjustable to 1.5:1 or less

  • Construction: Aircraft‑grade aluminium, swaged & slotted tubing for strength and reduced wind load

Mechanical Specifications

  • Boom Length: 9.45 m (31 ft)

  • Boom Diameter: 5 cm (2 in)

  • Longest Element: 5.79 m (19 ft)

  • Turn Radius: 5.18 m (17 ft)

  • Wind Load: ~1.31 m² (14.09 sq ft)

  • Wind Survival: Up to 135 km/h (90 mph)

  • Weight: ~23.6 kg (52 lb)

Why Choose the M106C‑HV

  • Dual‑polarity operation without multiple antennas

  • Exceptional DX performance with high gain and strong signal rejection

  • Built to withstand harsh weather

  • Ideal for both base‑to‑base and base‑to‑mobile communications.
