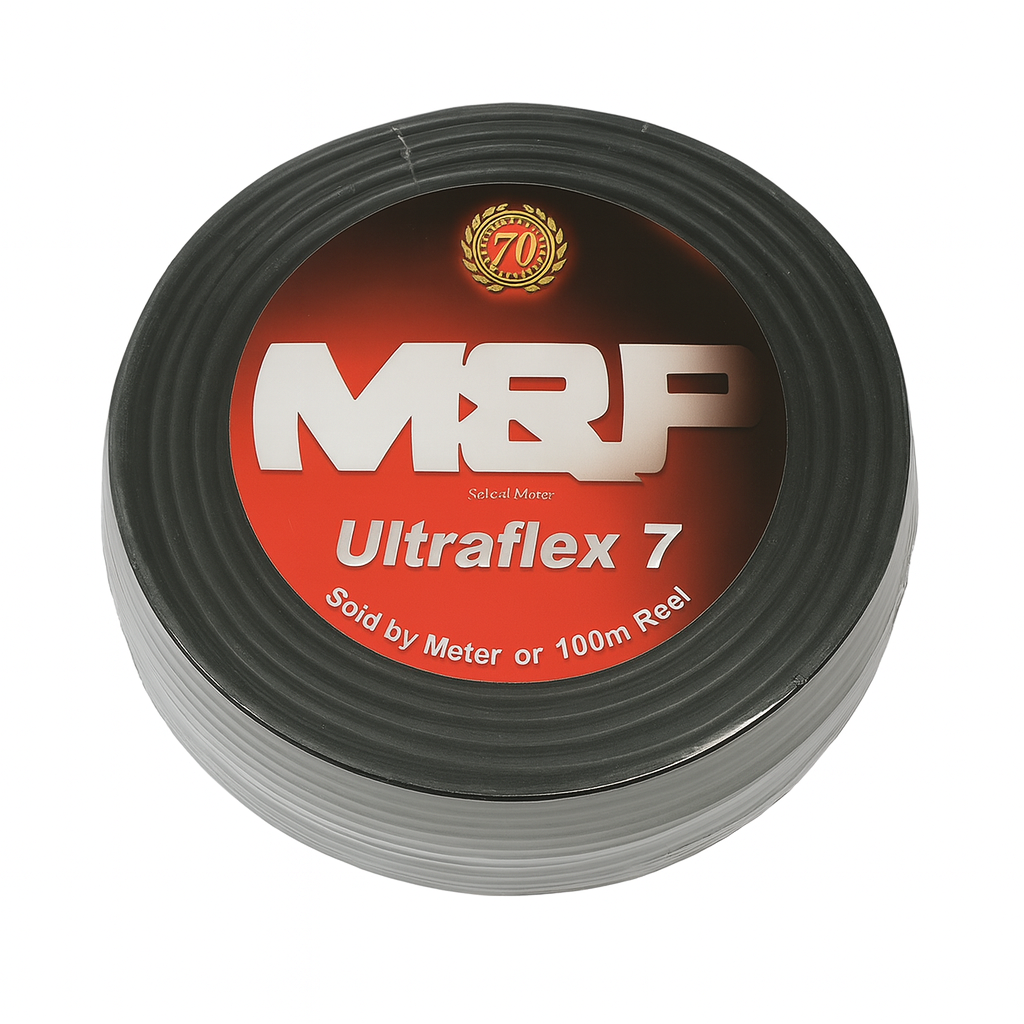

The Ham Radio professional coaxial cable features a stranded core with 19 wires, providing extraordinary flexibility. Its black UV-resistant PVC jacket ensures durability. Despite its small dimension of 7.3 mm, this cable outperforms the RG 213 U and other competitor cables of the same diameter in terms of mechanical and electrical properties.

The cable offers excellent signal transmission with a nominal impedance of 50 Ohms +/-3. Its minimum bending radius is 68/34 mm, allowing for easy installation in various settings. The capacitance is +/-2 pF/m, ensuring efficient power transfer. The velocity ratio and screening efficiency are impressive, contributing to superior performance.

The cable has a low inner conductor resistance of 7.3 Ohm/Km and an outer conductor resistance of 9.8 Ohm/Km. It successfully passes the tension (spark) test at 4 kV, ensuring its reliability. Despite its high performance, the cable is lightweight, weighing only 6.3 Kg per 100m.

The cable can handle demanding applications with a maximum peak power of 4400 WATT. It has a wide operating temperature range, from -40° to +60° C for installation and -55° to +85° C for operation. Overall, the Ham Radio professional coaxial cable offers exceptional features and performance for reliable communication.
