Radioworld UK SHF‑1633 Meteosat Yagi Antenna – 33‑Element 16.3 dBd Gain for 1690–1700 MHz

SHF‑1633 Meteosat Yagi (33‑Element, 16.3 dBd Gain)


Trustpilot

The SHF‑1633 is a high‑gain 13 cm Yagi antenna designed for Meteosat downlink reception in the 1690–1700 MHz band. With 33 elements and a gain of 16.3 dBd, it offers excellent directivity, low sidelobes, and a compact boom length — ideal for satellite enthusiasts and SHF specialists.

Built on a 1.6 m boom with an N‑type connector and robust mast mounting, the SHF‑1633 combines performance and durability. Its narrow beamwidth and strong front‑to‑back ratio make it suitable for stacked arrays and point‑to‑point SHF links.

Key Features

  • Frequency range: 1690–1700 MHz

  • Gain: 16.3 dBd

  • Elements: 33

  • 3 dB beamwidth: 19.6°

  • Sidelobes: –17 dB

  • Front‑to‑Back ratio: 25 dB

  • VSWR: 1.2:1

  • Stacking distance: 483 mm

  • Windload (120 km/h): 48 N

  • Mast size: 60 mm max

  • Connector: N‑type

  • Length: 1.6 m

Applications

  • Meteosat downlink reception

  • SHF DX and contesting

  • Stacked array systems

  • Narrow‑band SHF installations

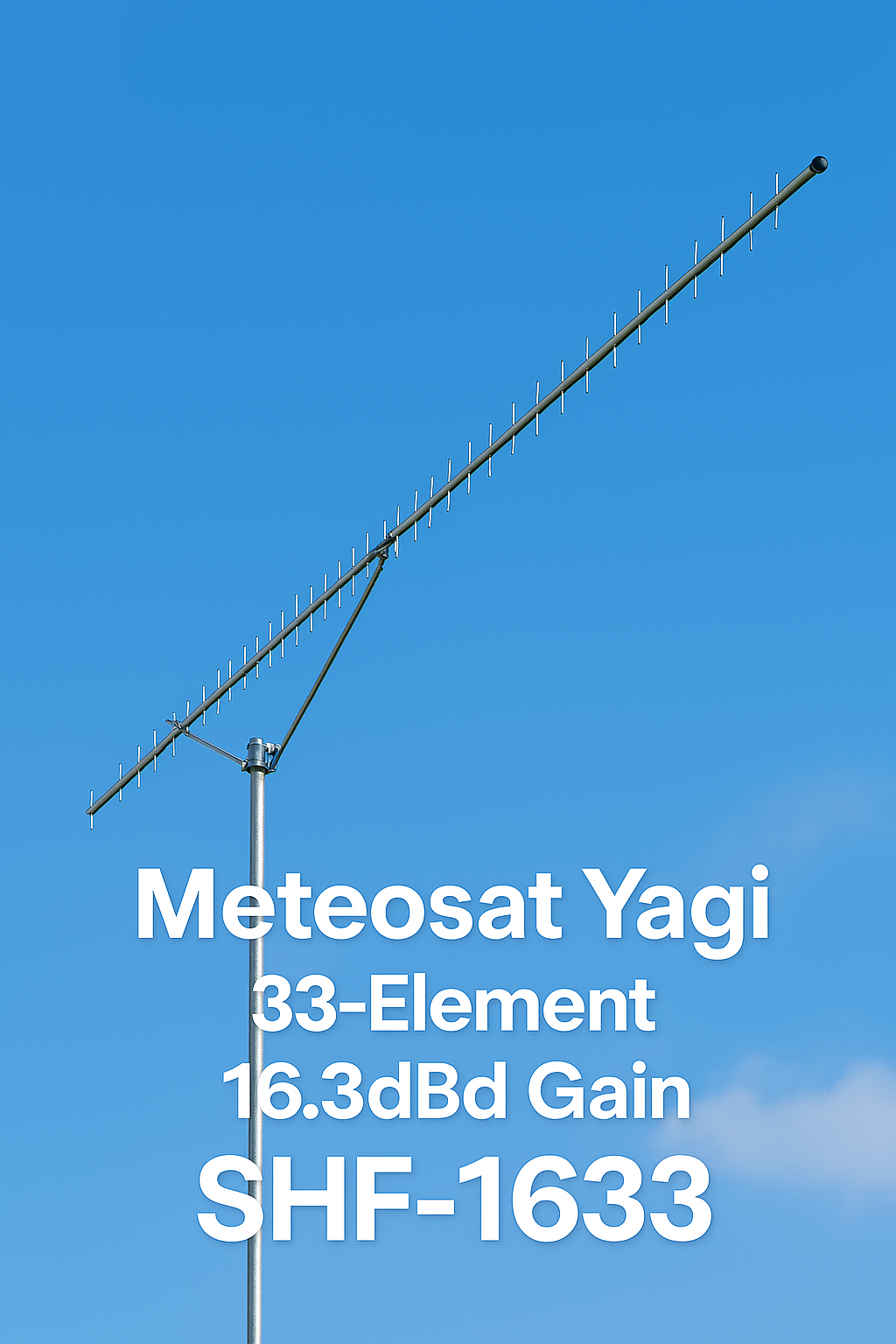

Note: Image is for illustration purposes only.
