SHF‑2367 SHF Design 23cm Yagi (67‑Element, 19.9 dBd Gain)
The SHF‑2367 is a high‑performance 23 cm Yagi antenna engineered for serious SHF operators. With 67 elements and a gain of 19.9 dBd (22 dBi ISO), it delivers exceptional directivity, low VSWR, and robust power-handling — ideal for DX, contesting, and stacked-array deployment.
Built on a 5.1 m boom with an N‑socket (female) connector and rugged mast mounting, the SHF‑2367 combines precision performance with structural resilience. Its narrow beamwidth and strong front‑to‑back ratio make it ideal for demanding SHF installations.
Key Features
Frequency range: 1240–1300 MHz
Gain: 22 dBi ISO / 19.9 dBd
Elements: 67
Power handling: 400 W PEP
Front‑to‑Back ratio: 27 dB
VSWR: 1.2:1 typical
Stacking distance: 751 mm
Boom length: 5.1 m
Mast size: 52 mm max
Connector: N‑socket (female)
Windload (120 km/h): 134 N
Weight: 10.0 kg
Applications
SHF DX and contesting
Point‑to‑point links
Stacked array systems
High‑gain SHF installations
Note: Image is for illustration purposes only.
Technical Spec Table
| Specification | Value |
|---|---|
| Frequency Range | 1240–1300 MHz |
| Elements | 67 |
| Gain (ISO / dBd) | 22 dBi / 19.9 dBd |
| Power Handling | 400 W PEP |
| Front‑to‑Back Ratio | 27 dB |
| VSWR | 1.2:1 (typical) |
| Stacking Distance | 751 mm |
| Boom Length | 5.1 m |
| Mast Diameter (Max) | 52 mm |
| Connector | N‑socket (female) |
| Wind Load @ 120 km/h | 134 N |
| Weight | 10.0 kg |
Comparison Block – SHF‑2367 vs SHF‑1340 / SHF‑1367
| Feature | SHF‑1340 (13cm) | SHF‑1367 (13cm) | SHF‑2367 (23cm) |
|---|---|---|---|
| Elements | 40 | 67 | 67 |
| Gain (dBd) | 16.6 | 20.0 | 19.9 |
| Frequency Range | 2300–2450 MHz | 2300–2450 MHz | 1240–1300 MHz |
| Boom Length | 1.6 m | 3.0 m | 5.1 m |
| Stacking Distance | 522 mm | 522 mm | 751 mm |
| Wind Load @ 120 km/h | 55 N | 90 N | 134 N |
| Mast Size (Max) | 52 mm | 52 mm | 52 mm |
| Connector | N‑type | N‑type | N‑socket (femal |
All orders placed on this website will not be subject to VAT for customers residing in the European Union or the rest of the world. However, it is important to mention that VAT will still be applicable based on the rates set by your country upon delivery.
Our Price Match Promise means that if you find any of our Equipment at a lower advertised price elsewhere, we will match the price for you, subject to the below.
- The product is identical to ours in brand, colour, size and model number.
- The price must be the advertised price clearly on the competitor's online site.
- The item must be in stock and available for immediate purchase (rather than available to order), with the authorised stockist able to complete delivery within 2-3 days.
Please fill out the form below. The details will be used to help us with your price promise request.
Others who viewed this item WERE ALSO INTERESTED IN...

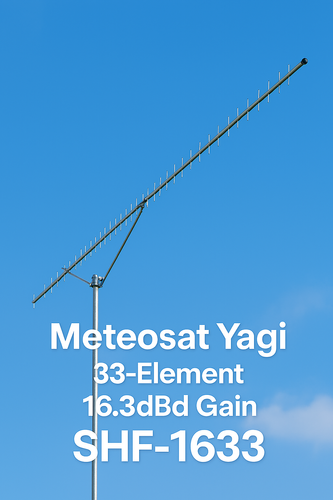

SHF‑1633 Meteosat Yagi (33‑Element, 16.3 dBd Gain)
The SHF‑1633 is a high‑gain 13 cm Yagi antenna designed for Meteosat downlink reception in the 1690–1700 MHz band. With 33 elements and a gain of 16.3...
£107.60
£49.99
Out of Stock
HB9CV‑4 4m 2‑Element Beam Antenna (70–71 MHz)
The HB9CV‑4 is a compact, cost‑effective 2‑element beam antenna designed specifically for the 70 MHz band. With a boom length of just 58 cm and a maxi...
£49.99
£293.95
Out of Stock
SHF‑2344 SHF Design 23cm 44‑Element Yagi Antenna
The SHF‑2344 is a high‑performance 23cm Yagi antenna engineered for serious UHF operation between 1240–1300 MHz. With 44 precision‑spaced elements on ...
£293.95
£144.95
Out of Stock

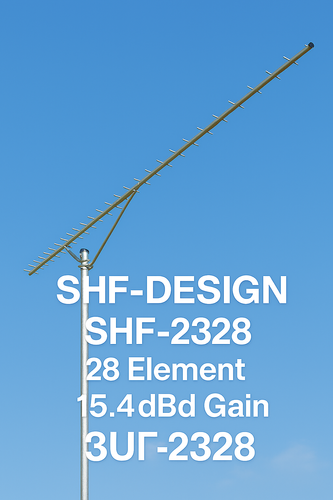

SHF‑2328 SHF Design 23cm Yagi (28‑Element, 15.4 dBd Gain)
