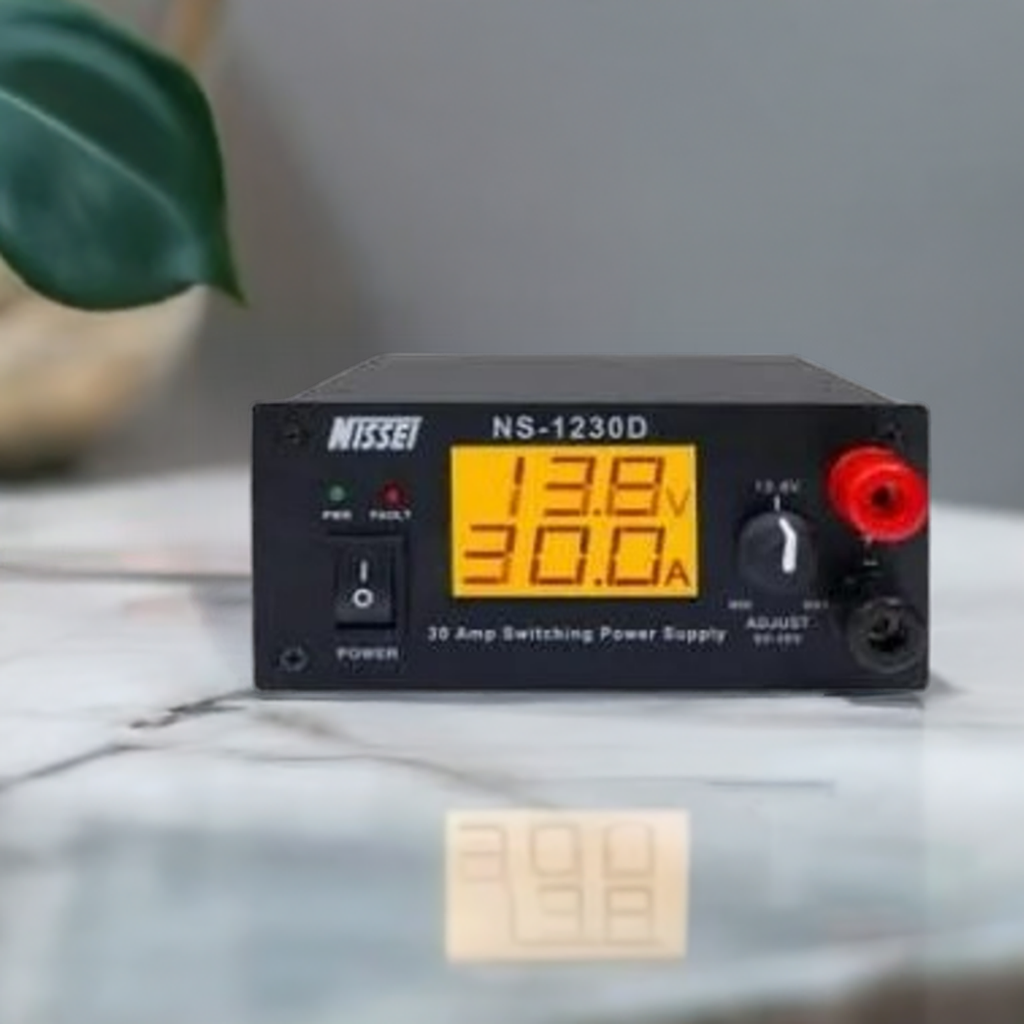

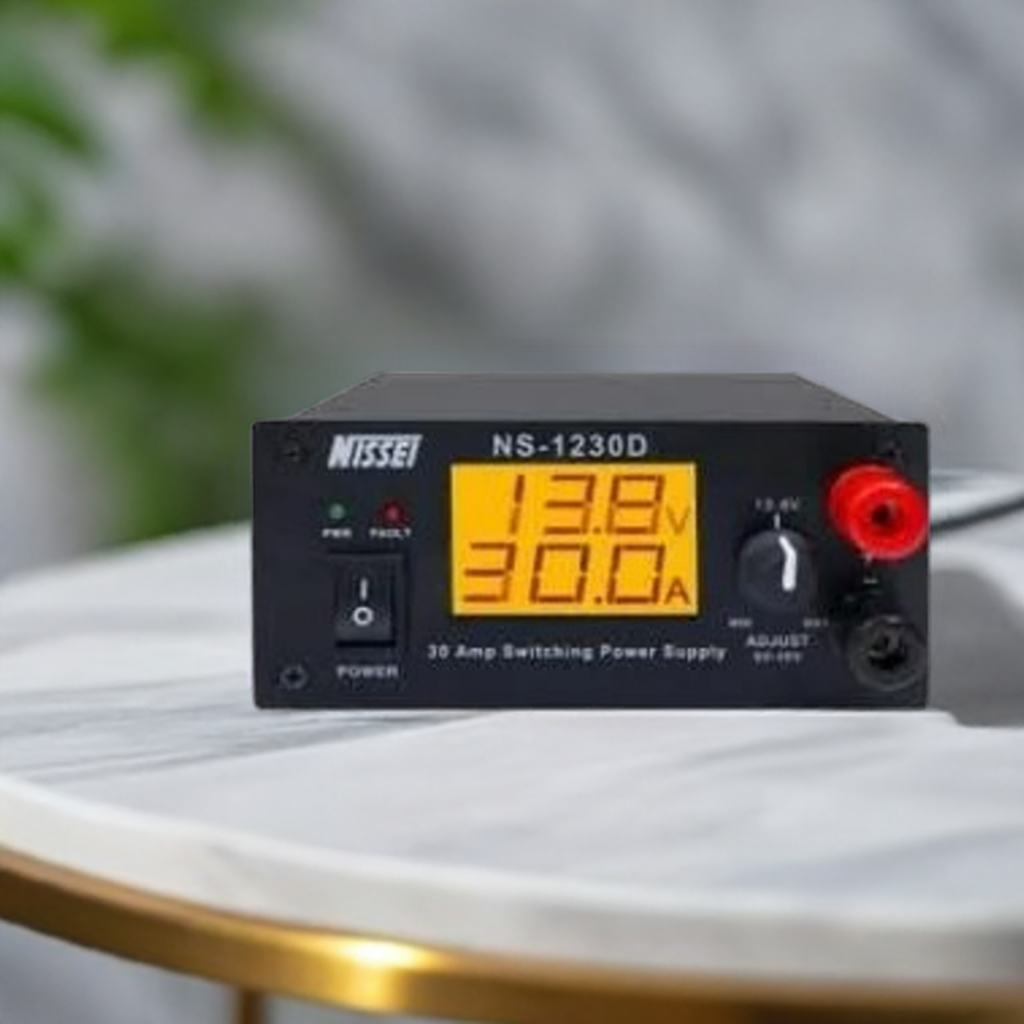

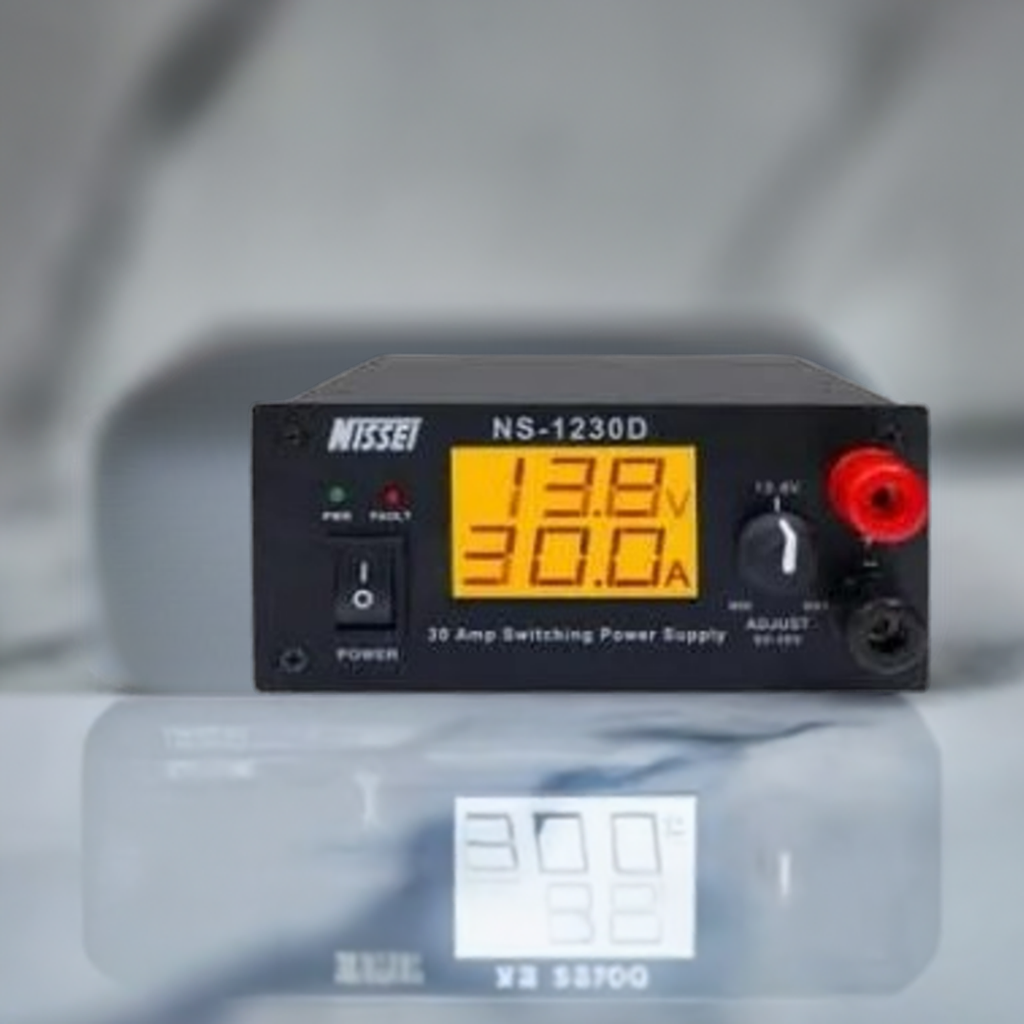

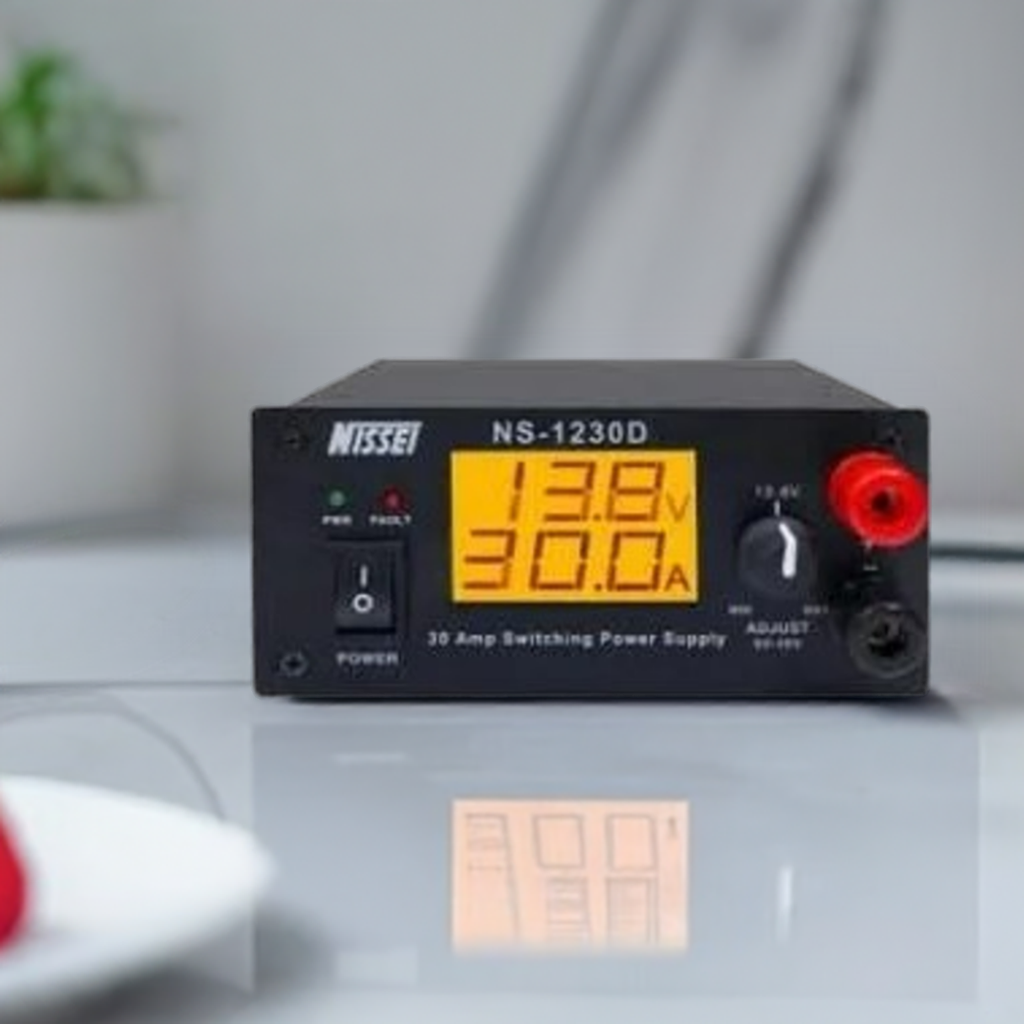

The NISSEI NS-1230D Switching Power Supply is a compact and efficient device offering a continuous output of 13.8V and a maximum output of 25A. It boasts dual output Power-Pole sockets on the rear panel and heavy-duty binding posts on the front panel. Safety is a priority with built-in short circuit and over-voltage protection. The power supply ensures stable and clean power with precision regulation of output voltage and a low peak-peak ripple of less than 0.3%.

Constructed in a heavy-duty metal cabinet with powder coating, the NISSEI NS-1230D is durable and long-lasting. It features an LED backlight for easy visibility and offers switchable input voltage between AC 110V and 220V with a tolerance of +/- 10%. The input frequency ranges from 47 to 63 Hz, with grounded negative polarity. The output voltage is adjustable from DC 4V to 16V, with a fixed output of DC 13.8V. The power supply has a continuous output of 25A, a surge capacity 30A, and a low ripple and noise level of less than 100. Weighing 1.35 kg and measuring 154 x 127 x 63 mm, it is a versatile and reliable power supply option.
