RIG‑EXPERT Loop & Antenna Analyzer with TNC

RigExpert Stick XPro 0.1–1150 MHz Vector Antenna Analyzer

£359.95
(£299.96 exc. VAT)
£649.96
(£541.63 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
359 Reward points
Product code: 57-549
Download a pdf document for RigExpert Stick XPro 0.1–1150 MHz Vector Antenna Analyzer

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£649.96
12 Months 14.9% APR
£65.00
£56.01
£737.12
£649.96
18 Months 14.9% APR
£65.00
£37.34
£737.12
£649.96
24 Months 14.9% APR
£65.00
£28.00
£737.12
£649.96
36 Months 14.9% APR
£65.00
£18.67
£737.12
£649.96
48 Months 14.9% APR
£65.00
£14.00
£737.12
£649.96
12 Months 19.5% APR
£65.00
£58.25
£764.02
£649.96
18 Months 19.5% APR
£65.00
£38.83
£764.02
£649.96
24 Months 19.5% APR
£65.00
£29.13
£764.02
£649.96
36 Months 19.5% APR
£65.00
£19.42
£764.02
£649.96
48 Months 19.5% APR
£65.00
£14.56
£764.02

Click here to recommend this product to a friend

Recommend a friend

RigExpert Stick XPro handheld RF analyzer showing display screen

RigExpert Stick XPro 0.1–1150 MHz Vector Antenna Analyzer


Trustpilot

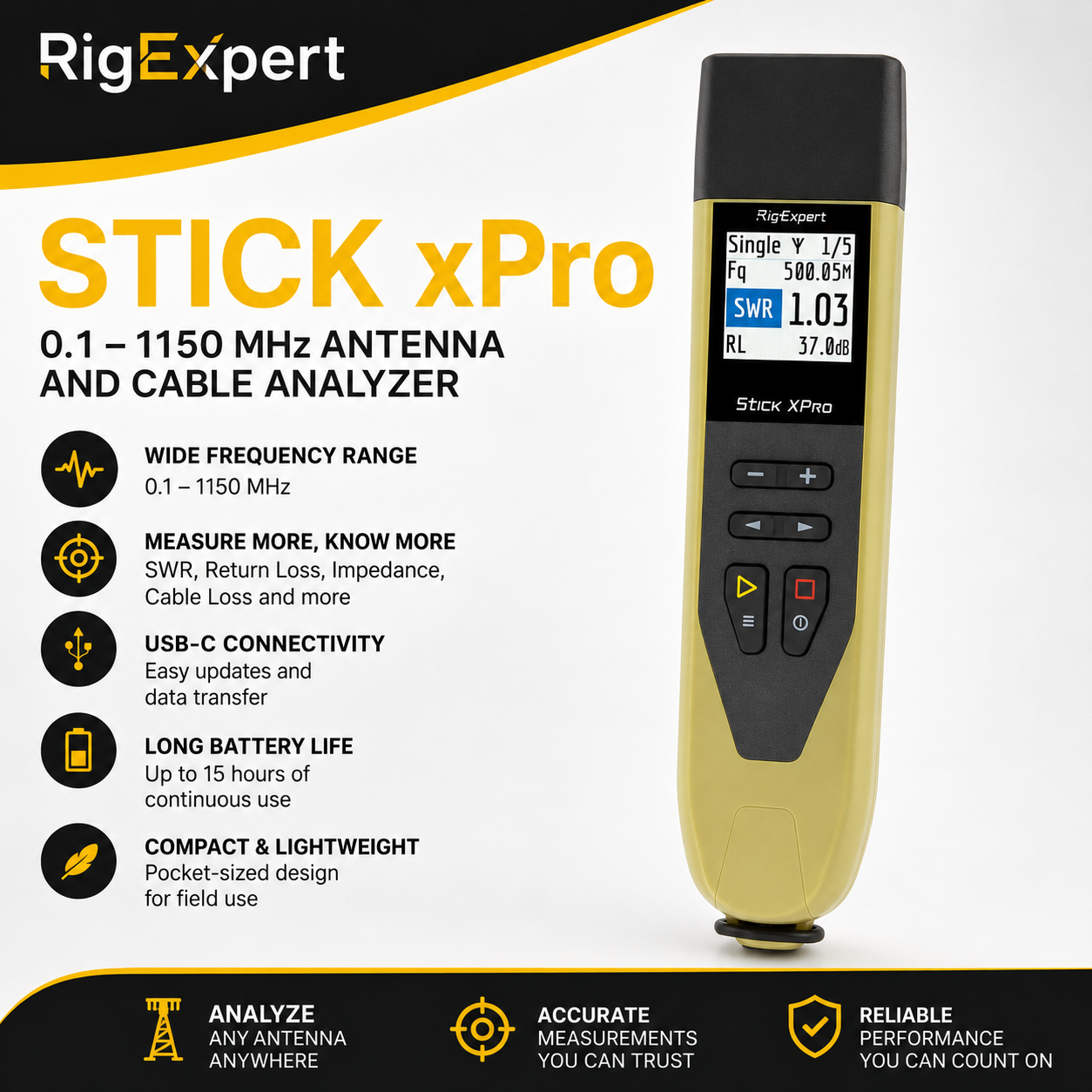

Stick XPro is a versatile vector antenna and cable analyzer designed for accurate RF measurements across a wide frequency range from 0.1 to 1150 MHz. It supports multiple impedance systems including 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, and 600 Ω, with a fine frequency input step of 1 kHz for precise tuning and analysis.

The analyzer offers an SWR measurement range from 1 to 100 in digital mode and 1 to 10 in graph mode, with R and X ranges of 0 to 2000 and −2000 to 2000 respectively, making it ideal for detailed antenna and system evaluation. Stick XPro operates in multiple modes—Multé, HAM, Single, TDR, SWR chart, Return Loss chart, RX Chart OSL calibration, and Cable tools—providing a comprehensive toolkit for RF professionals and serious hobbyists.

An HF output with N‑type connector delivers a square signal from 0.1 to 1000 MHz at −10 dBm into a 50 Ω load. Powered by a single Li‑ion 18650 battery, it offers convenient charging via USB from a PC, charger, or DC adapter. The unit features a TFT display, waterproof 2 × 3 key keyboard, and English/Japanese menus and help screens for a user‑friendly interface.

Connectivity includes USB to PC and Bluetooth 4.2 BLE via USB 2.0 Type‑C. Compact and lightweight at 185 × 40 × 33 mm and 185 g (with battery), and operating from −20°C to +55°C, Stick XPro is a robust, portable solution for reliable RF analysis in demanding environments.

ParameterSpecification
Frequency range0.1 to 1150 MHz
Frequency step1 kHz
Supported impedances12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ω
SWR range (digital)1 to 100
SWR range (graph)1 to 10
R range0 to 2000
X range−2000 to 2000
Measurement modesMulté, HAM, Single, TDR, SWR Chart, Return Loss Chart, RX Chart OSL, Cable Tools
RF output connectorN‑type
Signal typeSquare wave, 0.1 to 1000 MHz
Output power−10 dBm @ 50 Ω load

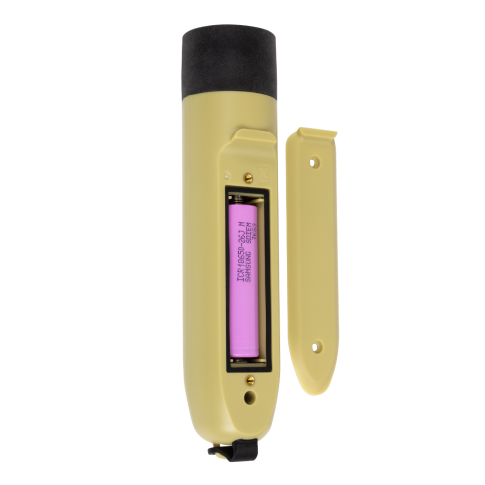

Power sourceLi‑ion 18650 battery
Charging timeApprox. 3 hours via USB (PC, charger, or DC adapter)
DisplayTFT display
KeyboardWaterproof, 2 × 3 keys
LanguagesEnglish, Japanese (menus and help)
ConnectivityUSB to PC, Bluetooth 4.2 BLE via USB 2.0 Type‑C
Dimensions185 × 40 × 33 mm
Weight185 g (with battery)
Operating temperature−20°C to +55°C
