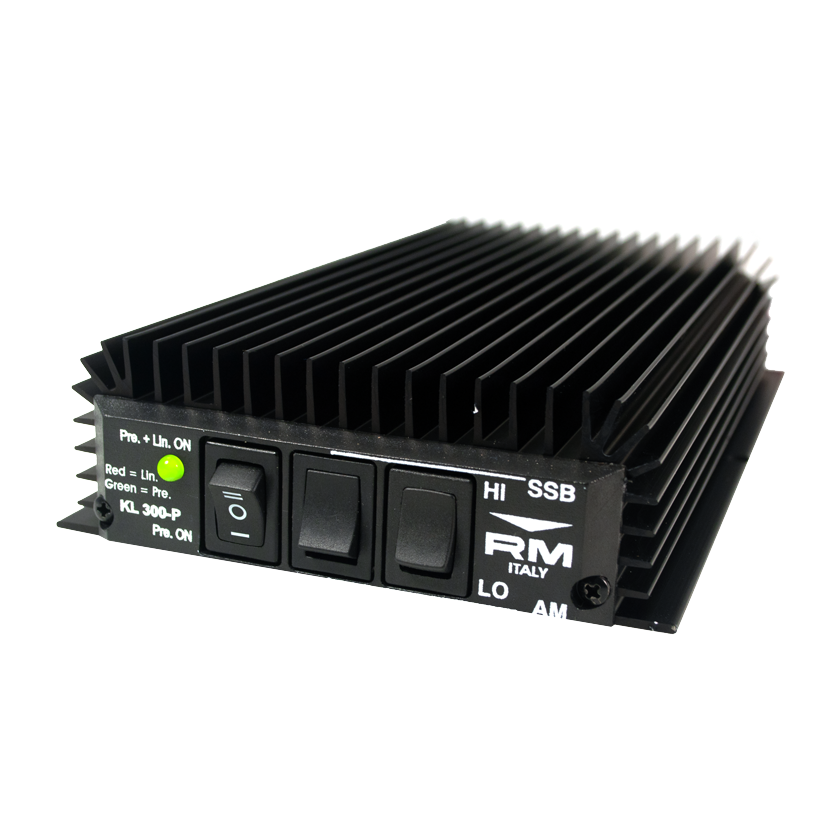

"KL 300 P HF linear amplifier front view showing preamp switch and cooling fins"
"KL 300 P HF linear amplifier front view showing preamp switch and cooling fins"

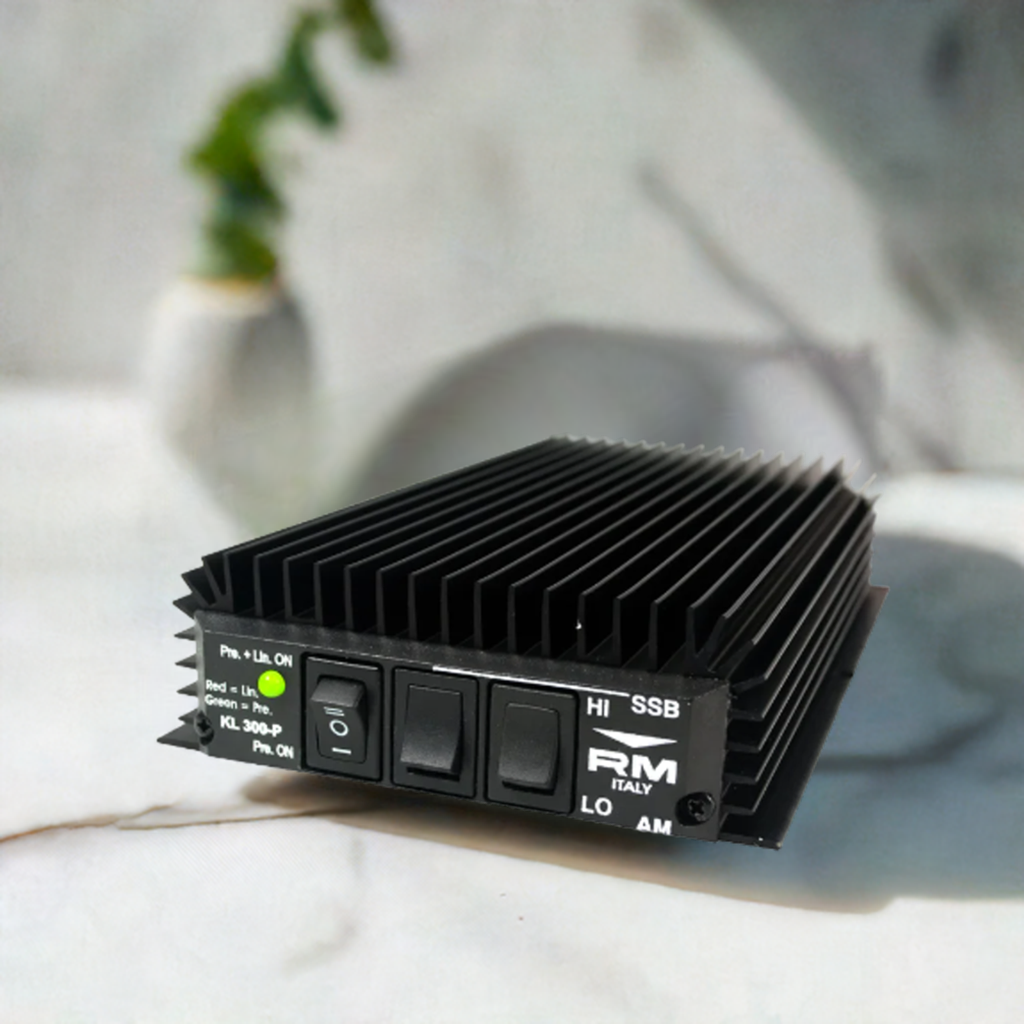

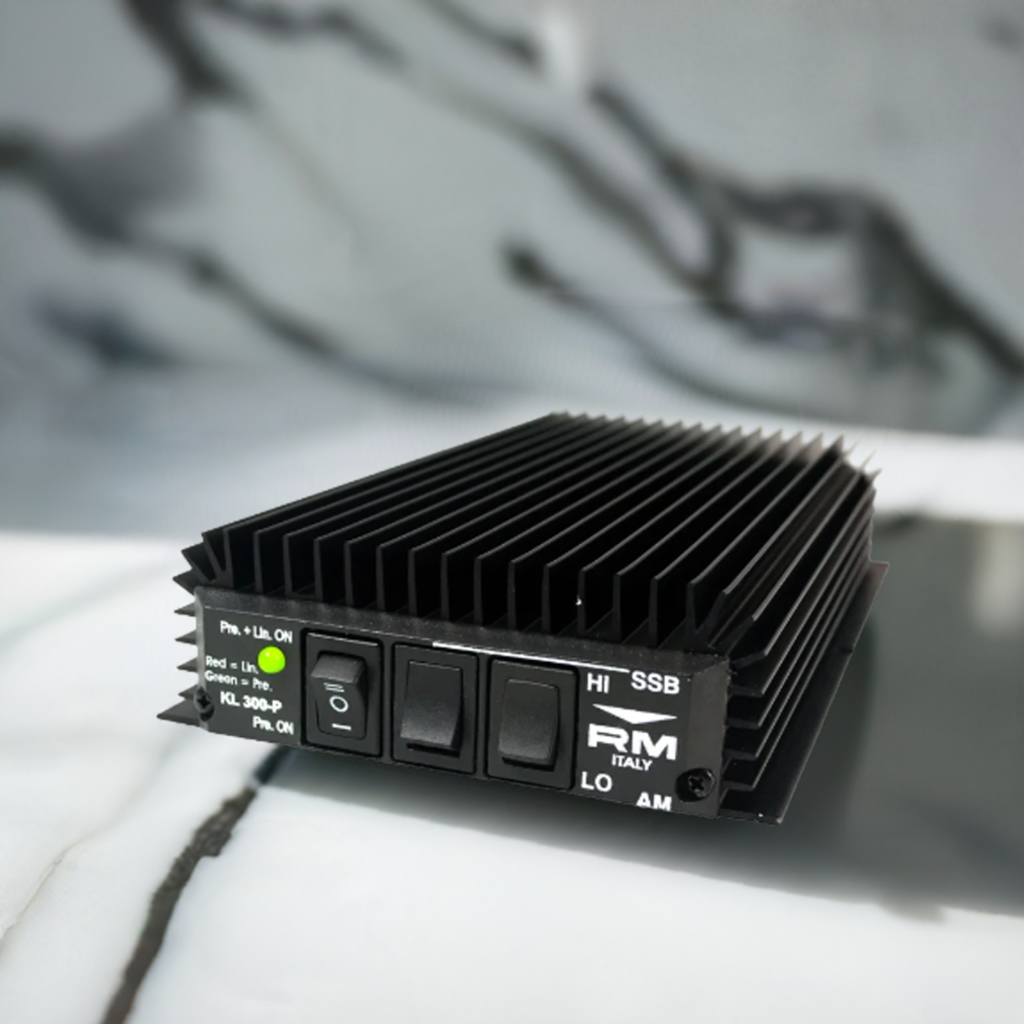

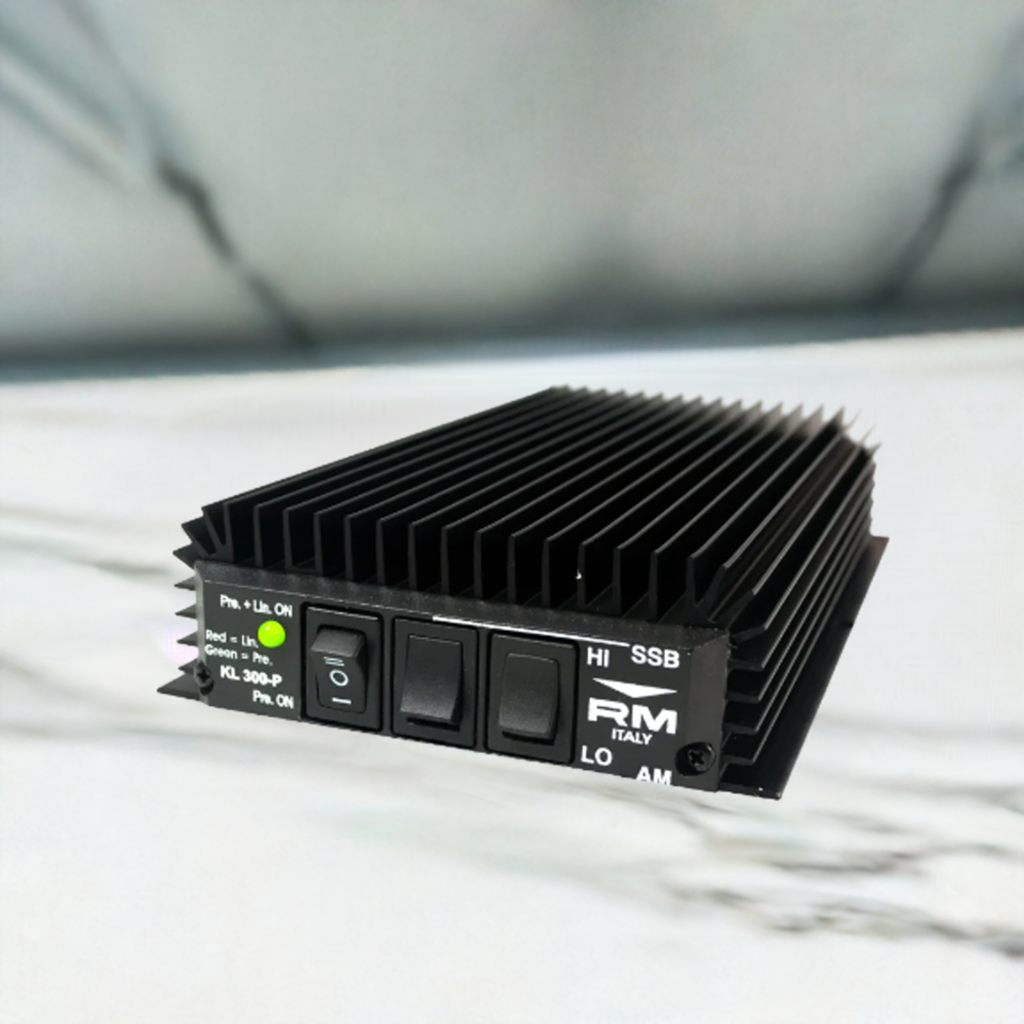

"KL 300 P 12V amplifier with compact metal casing and LED indicators"

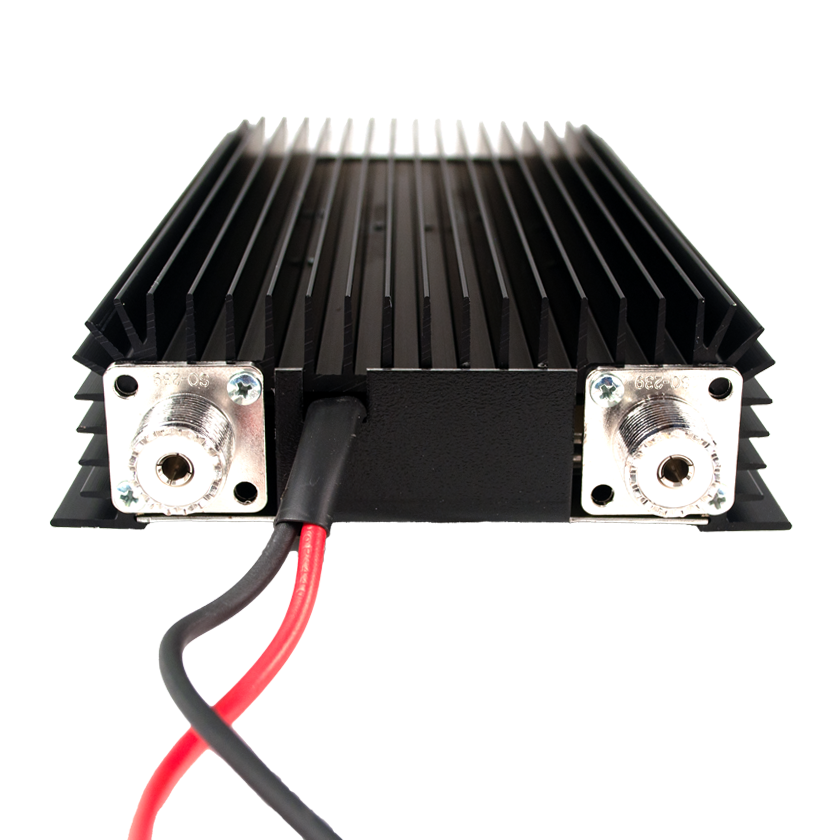

"KL 300 P rear panel with power input, antenna connectors, and ventilation slots"
"KL 300 P amplifier with 25dB preamplifier switch highlighted on front panel"
"KL 300 P HF amplifier setup with power cable and coaxial connectors on white surface"
"KL 300 P compact HF amplifier – 140W AM/FM, 250W SSB output rating label visible"
Click the image to enlarge
"KL 300 P HF linear amplifier front view showing preamp switch and cooling fins"
"KL 300 P 12V amplifier with compact metal casing and LED indicators"
"KL 300 P rear panel with power input, antenna connectors, and ventilation slots"
"KL 300 P amplifier with 25dB preamplifier switch highlighted on front panel"
"KL 300 P HF amplifier setup with power cable and coaxial connectors on white surface"
"KL 300 P compact HF amplifier – 140W AM/FM, 250W SSB output rating label visible"

RM Amplifiers – Italian Linear Amplifiers for CB & Ham Radio

KL 300 P HF Linear Amplifier – 140W AM/FM, 250W SSB, 12V

£199.96
(£166.63 exc. VAT)
£229.96
(£191.63 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
ADD TO WISHLIST
199 Reward points
Product code: 23-215
Download a pdf document for KL 300 P HF Linear Amplifier – 140W AM/FM, 250W SSB, 12V

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£229.96
12 Months 14.9% APR
£23.00
£19.82
£260.79
£229.96
18 Months 14.9% APR
£23.00
£13.21
£260.79
£229.96
24 Months 14.9% APR
£23.00
£9.91
£260.79
£229.96
36 Months 14.9% APR
£23.00
£6.61
£260.79
£229.96
48 Months 14.9% APR
£23.00
£4.95
£260.79
£229.96
12 Months 19.5% APR
£23.00
£20.61
£270.31
£229.96
18 Months 19.5% APR
£23.00
£13.74
£270.31
£229.96
24 Months 19.5% APR
£23.00
£10.30
£270.31
£229.96
36 Months 19.5% APR
£23.00
£6.87
£270.31
£229.96
48 Months 19.5% APR
£23.00
£5.15
£270.31

Click here to recommend this product to a friend

Recommend a friend

"KL 300 P HF linear amplifier front view showing preamp switch and cooling fins"

KL 300 P HF Linear Amplifier – 140W AM/FM, 250W SSB, 12V


Trustpilot

KL 300 P 12V HF Linear Amplifier – 140W AM/FM, 250W SSB

The KL 300 P is a compact and powerful 12V linear amplifier designed for the HF frequency range, ideal for amateur radio operators seeking reliable signal enhancement. With a drive power of 1–10W (FM/AM) and 2–20W (SSB), it supports a wide range of transmission setups.

Key Features:

  • Output Power: 140W (AM/FM), 250W (SSB)

  • Drive Power: 1–10W (FM/AM), 2–20W (SSB)

  • Frequency Range: HF

  • Voltage: 12–14 Vcc

  • Max Input Current: 20 A

  • Input VSWR: 1.1 to 1.5:1

  • Preamplifier: 25dB gain with electronic switching

  • Dimensions: 230 × 120 × 40 mm

  • Weight: 864 g

The front panel features a switchable preamplifier for enhanced reception, boosting flexibility and performance. Its low VSWR ensures signal integrity, while the compact form factor makes it ideal for mobile or desktop setups.

Whether you're operating in SSB, AM, or FM, the KL 300 P delivers clean, efficient amplification with user-friendly controls and rugged reliability.
