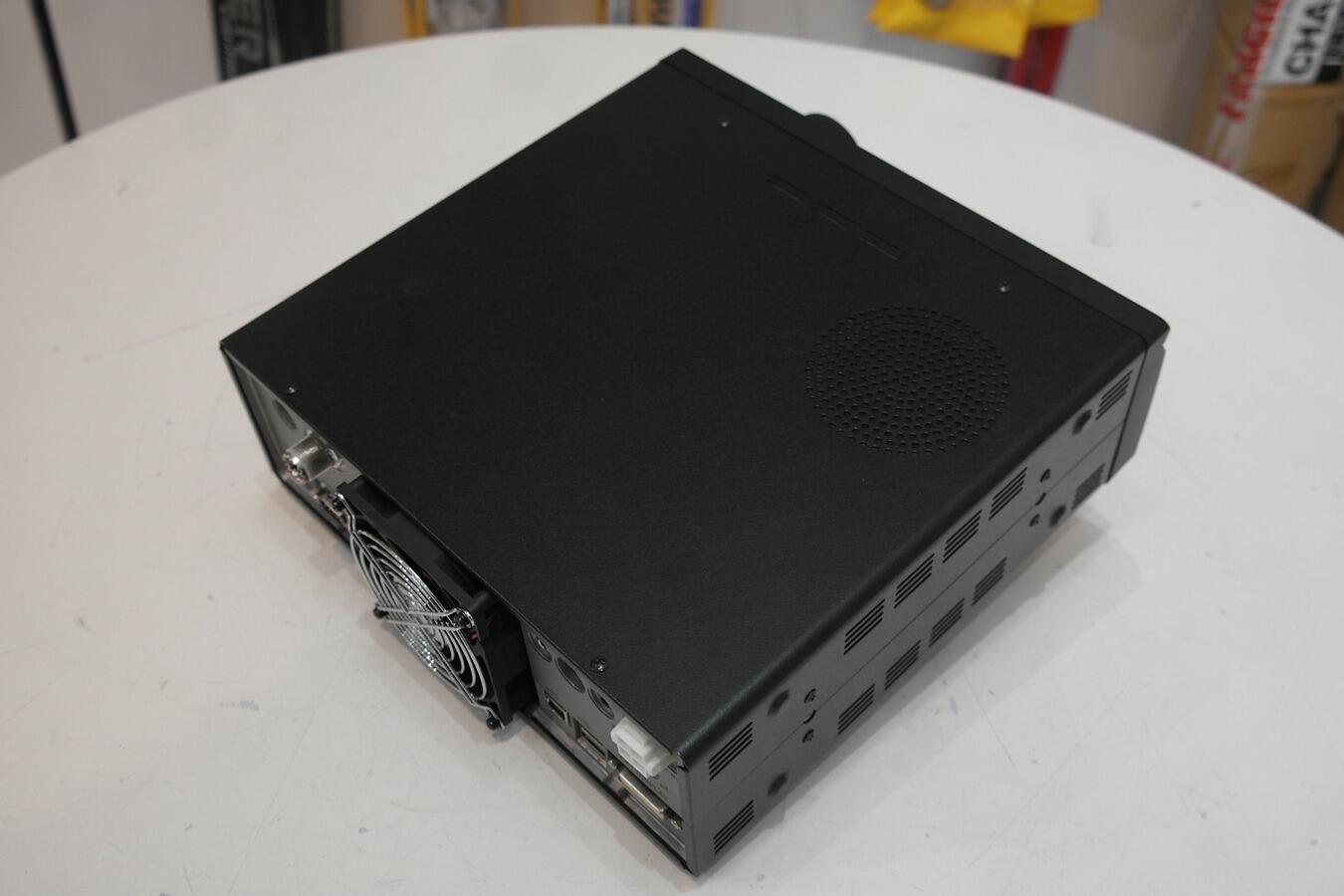

Yaesu FTDX10 used condition front panel and controls
Yaesu FTDX10 installed in amateur radio shack setup

Second Hand Radio equipment

Second Hand Yaesu FTDX10 HF/50MHz SDR Transceiver – Hybrid SDR Base Transceiver

£0.00
(£0.00 exc. VAT)
£999.00
(£999.00 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock

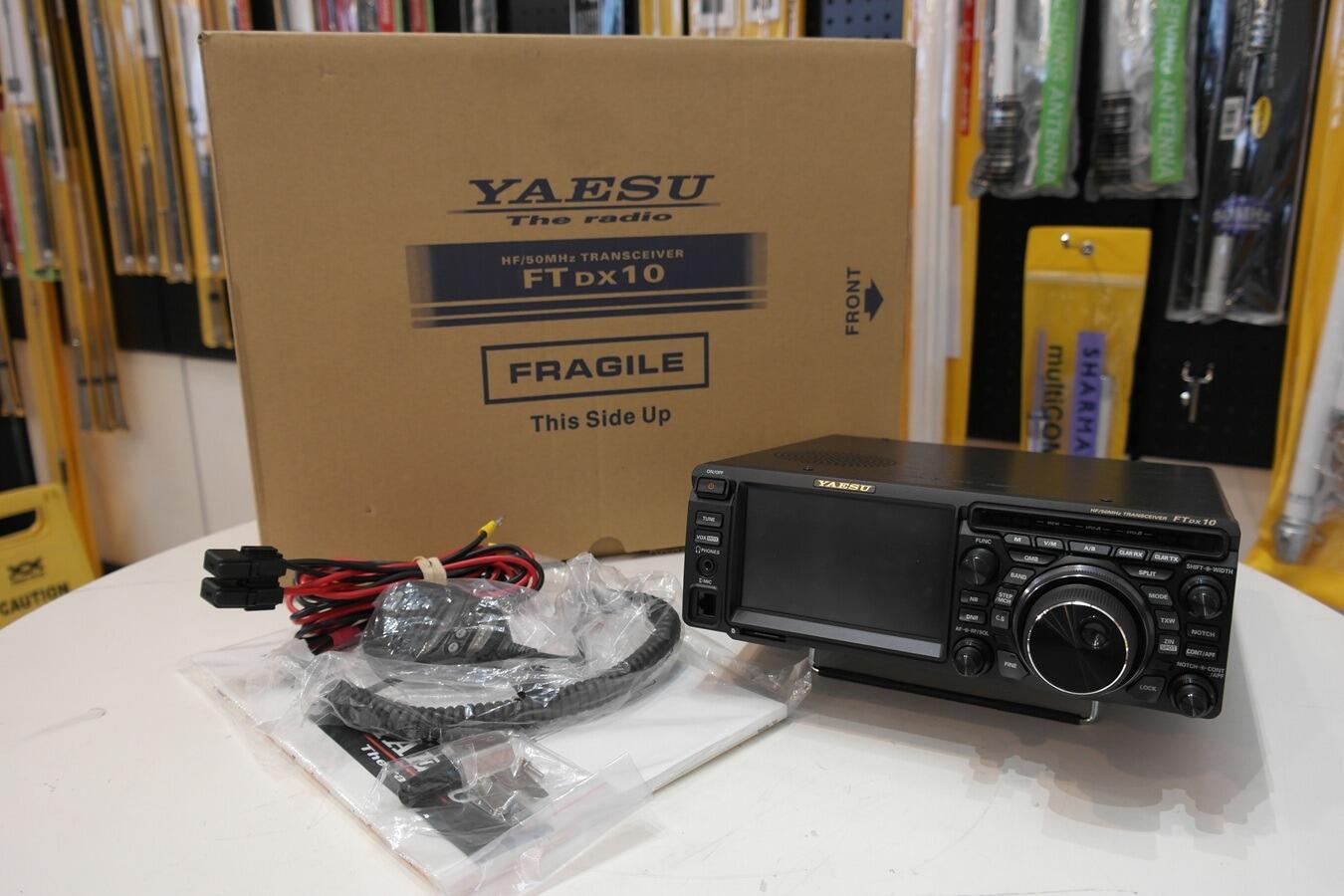

BOXED - in fantastic condition, comes with microphone, power lead and manual.
Qty:
ADD TO WISHLIST
999 Reward points
Product code: SH-FTDX10
Download a pdf document for Second Hand Yaesu FTDX10 HF/50MHz SDR Transceiver – Hybrid SDR Base Transceiver

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£999.00
12 Months 14.9% APR
£99.90
£86.09
£1,132.97
£999.00
18 Months 14.9% APR
£99.90
£57.39
£1,132.97
£999.00
24 Months 14.9% APR
£99.90
£43.04
£1,132.97
£999.00
36 Months 14.9% APR
£99.90
£28.70
£1,132.97
£999.00
48 Months 14.9% APR
£99.90
£21.52
£1,132.97
£999.00
12 Months 19.5% APR
£99.90
£89.54
£1,174.32
£999.00
18 Months 19.5% APR
£99.90
£59.69
£1,174.32
£999.00
24 Months 19.5% APR
£99.90
£44.77
£1,174.32
£999.00
36 Months 19.5% APR
£99.90
£29.85
£1,174.32
£999.00
48 Months 19.5% APR
£99.90
£22.38
£1,174.32

Click here to recommend this product to a friend

Recommend a friend

Yaesu FTDX10 HF 50MHz hybrid SDR transceiver front panel view

Second Hand Yaesu FTDX10 HF/50MHz SDR Transceiver – Hybrid SDR Base Transceiver


Trustpilot

The Second Hand Yaesu FTDX10 is a high-performance HF/50MHz hybrid SDR transceiver, designed for operators seeking cutting-edge digital signal processing with the tactile control of a traditional HF rig.

Derived from Yaesu’s flagship FTDX101 series, the FTDX10 combines direct sampling SDR technology with a first IF roofing filter and Yaesu’s renowned Hybrid SDR architecture — delivering exceptional close-in dynamic range, superior receiver sensitivity, and strong adjacent signal handling.

This used unit is in excellent condition, fully tested and ready for use. It offers 100W output power, superior DSP filtering, and a bright 5-inch colour touchscreen display, giving operators full control of advanced filtering, spectrum scope, and real-time waterfall displays.

With Yaesu’s exclusive Narrow Band SDR architecture, 3DSS (3D Spectrum Stream), and MPVD (Multi-Purpose VFO Encoder), the FTDX10 provides the same world-class receive performance found in larger base stations, in a more compact and affordable design.

Perfect for serious DXers, contesters, and home station operators, the FTDX10 offers superb transmit audio and operational flexibility — all in a compact, feature-rich package.

Key Features

  • Second Hand Yaesu FTDX10 HF/50MHz SDR Transceiver

  • Hybrid SDR architecture combining direct sampling and IF DSP

  • 100W HF/50MHz output power

  • Large 5" colour TFT touchscreen with real-time waterfall and spectrum scope

  • First IF roofing filters: 12 kHz, 3 kHz, 600 Hz

  • IF DSP filtering and digital noise reduction for crystal-clear reception

  • Built-in 15-band automatic antenna tuner

  • MPVD Multi-Purpose VFO Encoder with fine tuning and function shortcuts

  • 3DSS (3D Spectrum Stream) for real-time band activity visualisation

  • USB connectivity for CAT control, digital modes, and PC integration

  • SD card slot for recording, playback, and firmware updates

  • Used and fully tested – in excellent operational condition

Technical Specifications

SpecificationDetails
ModelYaesu FTDX10
Frequency Coverage1.8 – 54 MHz (amateur bands)
ModesSSB, CW, AM, FM, RTTY, PSK, C4FM (digital)
Output Power100W (SSB/CW/FM) / 25W (AM)
Receiver ArchitectureHybrid SDR with IF Roofing Filters
First IF Frequency9 MHz
Roofing Filters12 kHz / 3 kHz / 600 Hz
Display5-inch colour TFT touchscreen
Spectrum ScopeReal-time with waterfall display
Antenna TunerBuilt-in automatic 15-band tuner

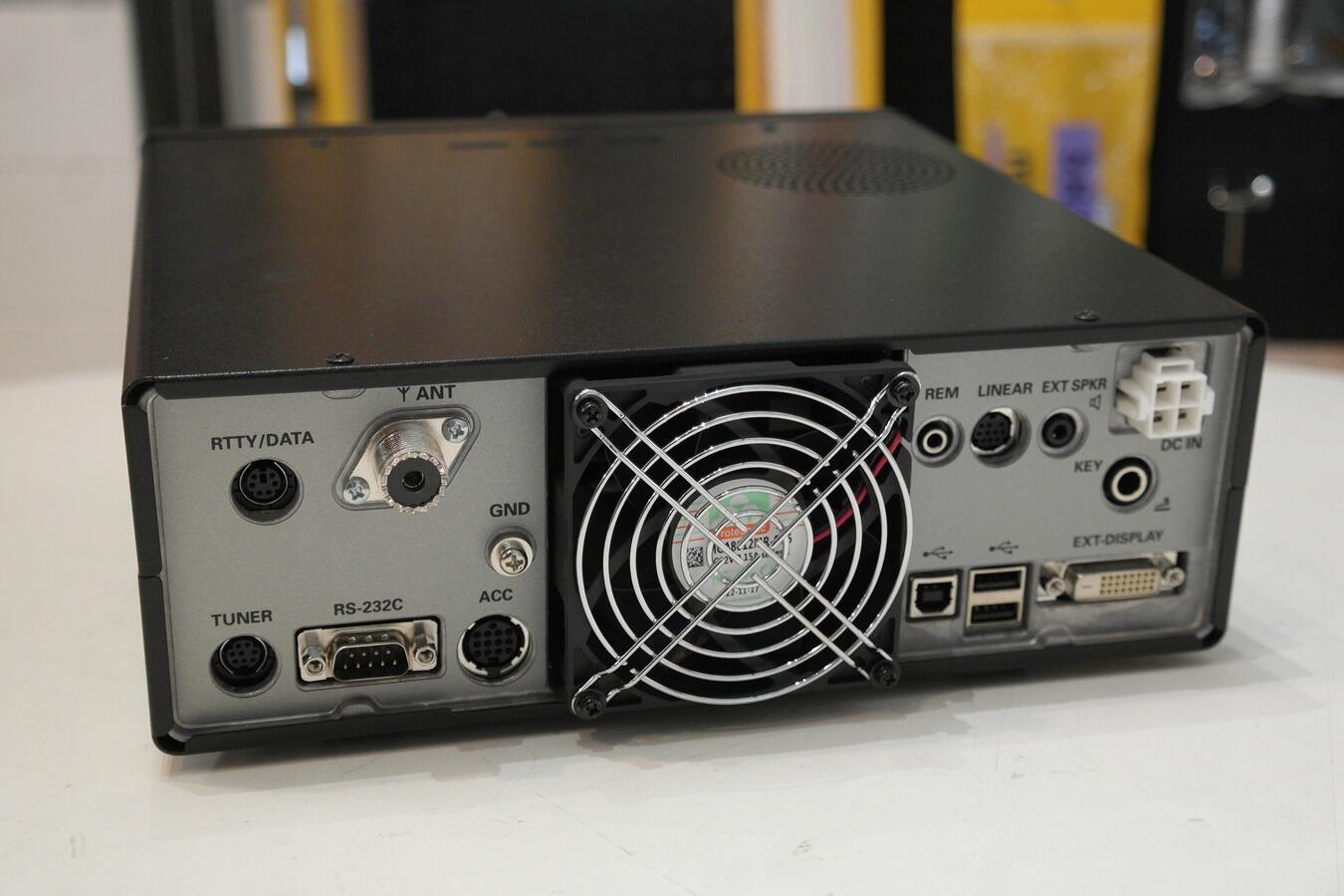

ConnectionsUSB (CAT/audio), LAN (firmware support), SD card
Power Supply13.8V DC ±10%, 23A max
Dimensions266 × 91 × 263 mm
Weight5.9 kg
ConditionSecond hand – tested and fully functional
ManufacturerYaesu Musen Co. Ltd., Japan

Performance Highlights

  • Derived from the FTDX101D/MP flagship technology

  • Dynamic range performance: 116 dB (RMDR typical)

  • Low-phase-noise oscillator for ultra-clean signal reproduction

  • Enhanced digital noise reduction (DNR) and notch filtering

  • Robust 32-bit floating-point DSP
