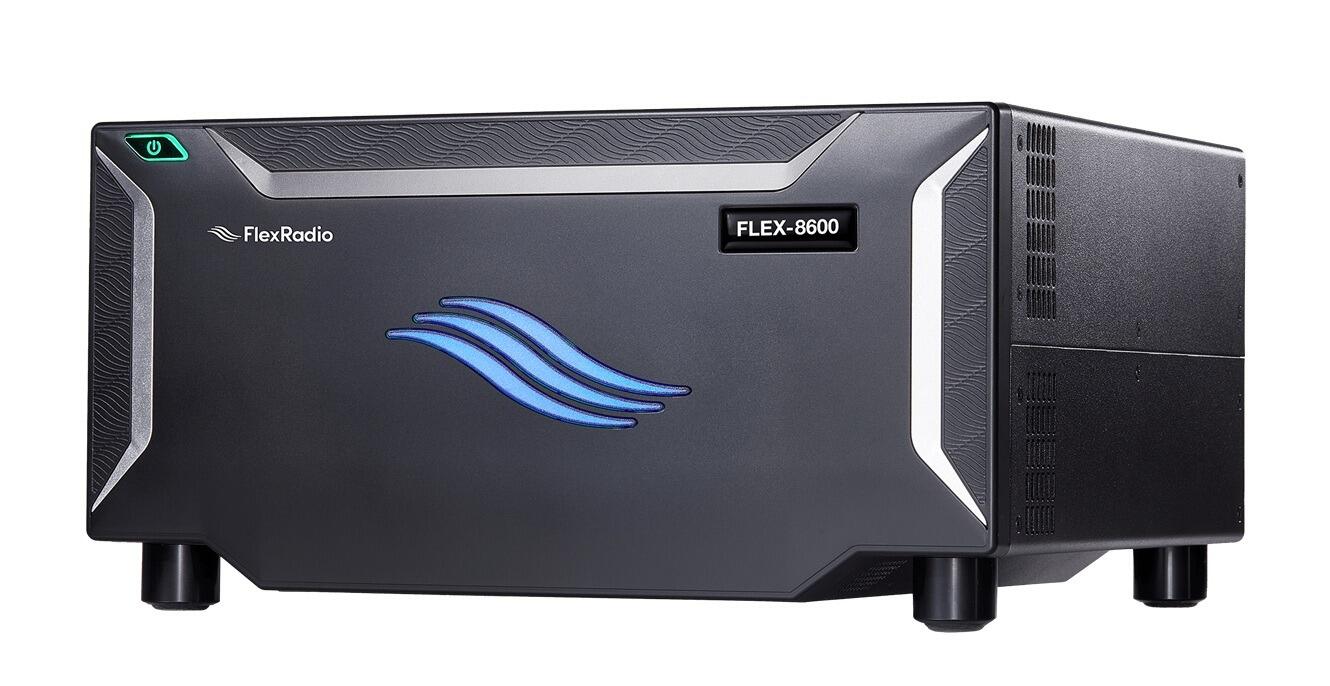

FlexRadio FLEX-8600 Signature Series SDR transceiver front view
Click the image to enlarge

FlexRadio FLEX – Software Defined HF Transceiver.

FlexRadio FLEX-8600 Signature Series SDR Transceiver – Premium 4K Wideband Direct Sampling HF/6m SDR | Radioworld UK

£0.00
(£0.00 exc. VAT)
£4,599.00
(£3,832.50 exc. VAT)
Fast uk delivery
Worldwide delivery
Out of Stock
Qty:
ADD TO WISHLIST
4599 Reward points
Product code: FLEX-8600-NO-SCREEN
Download a pdf document for FlexRadio FLEX-8600 Signature Series SDR Transceiver – Premium 4K Wideband Direct Sampling HF/6m SDR | Radioworld UK

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Sorry!

This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.

Qty:

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£4,599.00
12 Months 14.9% APR
£459.90
£396.32
£5,215.73
£4,599.00
18 Months 14.9% APR
£459.90
£264.21
£5,215.73
£4,599.00
24 Months 14.9% APR
£459.90
£198.16
£5,215.73
£4,599.00
36 Months 14.9% APR
£459.90
£132.11
£5,215.73
£4,599.00
48 Months 14.9% APR
£459.90
£99.08
£5,215.73
£4,599.00
12 Months 19.5% APR
£459.90
£412.19
£5,406.12
£4,599.00
18 Months 19.5% APR
£459.90
£274.79
£5,406.12
£4,599.00
24 Months 19.5% APR
£459.90
£206.09
£5,406.12
£4,599.00
36 Months 19.5% APR
£459.90
£137.40
£5,406.12
£4,599.00
48 Months 19.5% APR
£459.90
£103.05
£5,406.12

Click here to recommend this product to a friend

Recommend a friend

FlexRadio FLEX-8600 Signature Series SDR transceiver front view

FlexRadio FLEX-8600 Signature Series SDR Transceiver – Premium 4K Wideband Direct Sampling HF/6m SDR | Radioworld UK


Trustpilot

The FlexRadio FLEX-8600 Signature Series SDR Transceiver represents the next evolution in high-performance software-defined radio (SDR) design, engineered for the most demanding amateur and professional radio operators.

Building on the award-winning FLEX-8000 architecture, the FLEX-8600 features direct sampling technology, a 4K-wideband spectral display, and ultra-low noise ADCs, delivering industry-leading dynamic range, receiver sensitivity, and spectral purity across the 160–6 metre bands.

Powered by SmartSDR™ software, the FLEX-8600 provides a fully integrated, touchscreen-based user experience with multi-slice receiver operation, digital pre-distortion (PureSignal™), built-in transverter ports, and Ethernet/remote operation via LAN or WAN connection.

With its advanced FPGA-based signal processing and optional integration with FlexRadio’s PowerGenius XL amplifier and Tuner Genius XL, the FLEX-8600 is designed to deliver a truly seamless station automation and remote operation environment.

Whether you operate from home, remote, or field locations, the FLEX-8600 combines performance, flexibility, and reliability in one of the most advanced SDR platforms available.

Key Features

  • Direct sampling SDR architecture for ultra-high dynamic range performance

  • Frequency coverage: 30 kHz – 54 MHz (160–6 metres)

  • Dual independent SCUs (Spectral Capture Units) for true diversity reception

  • Four full-duplex slices with independent tuning and demodulation

  • Ultra-low phase noise oscillators for superior signal purity

  • High-speed 16-bit ADCs – over 120 dB RMDR (Receiver Dynamic Range)

  • 4K UHD Panadapter/Waterfall display with SmartSDR interface

  • Built-in LAN/WAN capability for remote and networked operation

  • PureSignal™ digital pre-distortion (DPD) for ultra-clean transmit audio

  • Transverter ports and RX-A/B inputs for external devices

  • Full digital integration with PowerGenius XL and Tuner Genius XL

  • Upgradeable via SmartSDR™ firmware for continual feature expansion

  • Made in the USA by FlexRadio Systems

Technical Specifications

SpecificationDetails
ModelFLEX-8600 Signature Series
Receiver ArchitectureDirect Sampling SDR (16-bit ADC, FPGA-based)
Frequency Coverage30 kHz – 54 MHz (160–6 m)
ModesSSB, CW, AM, FM, RTTY, Digital
Slices / ReceiversUp to 4 simultaneous
Dynamic Range (RMDR)>120 dB
Phase Noise–140 dBc/Hz typical
ADC Sample Rate245.76 Msps
Spectral Capture Units (SCUs)2 (independent diversity reception)
DisplayIntegrated SmartSDR 4K UHD Panadapter/Waterfall
LAN/WAN Connectivity1 Gbps Ethernet
Remote ControlSmartSDR for Windows, Maestro, iOS, and MacOS
Power Output100 W PEP (adjustable)
Power Supply13.8V DC ±15%, 25A max
Transverter Ports2
Antenna Connectors2 main, 1 RX-only
Dimensions330 × 130 × 340 mm
Weight7.2 kg
ManufacturerFlexRadio Systems, USA
