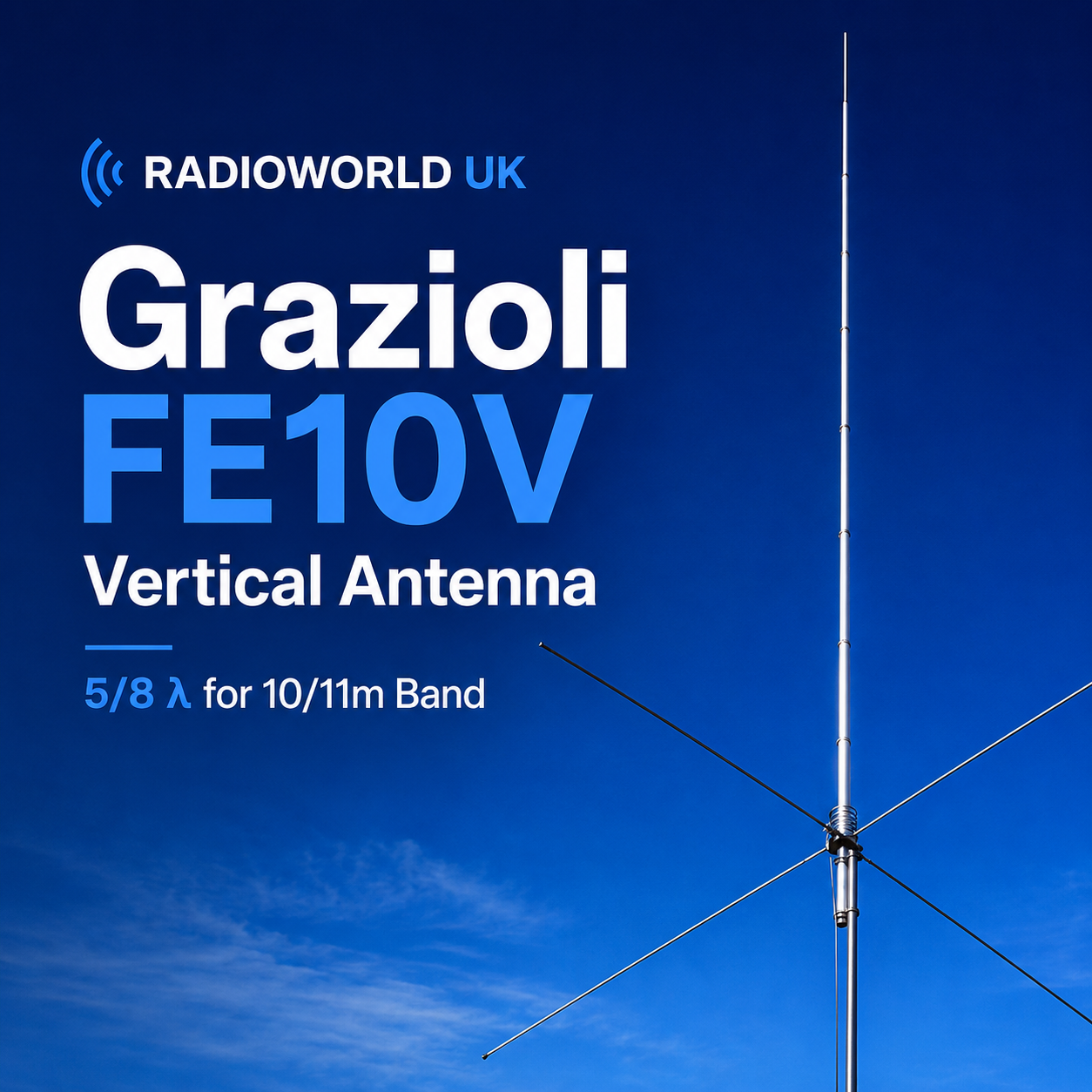

Grazioli FE10V is a 5/8 λ antenna for the 10 or 11m band, an extremely robust, performing antenna with a low angle of radiation, and that could withstand extremely high powers (5kW CW continuous all-mode).

The result is FE10V which has unique characteristics in the current market and collects all our experience in this field.

MATERIALS AND CONSTRUCTION,

For our tubes, we have used the best alloy that can be used for the construction of the antennas, the AW6063-T66 alloy of Aluminium, Magnesium, and Silicon hardened to the T-66 state which gives the whip an exceptional resistance, which is made by extrusion and subsequently cold drawn.

Our tubes are extremely precise on both diameters and also on the thickness of the wall, allowing a precise coupling and with less "play" between the tubes.

The "Ground Plane" is composed of 4 robust radials with a length of 2.7m, "Full-Quarter Wave" made in two telescopic sections with clamp fixing, with a diameter and wall thickness respectively 13 × 1.25mm and 10x1mm, which are fixed to the support plate by means of two U-Bolt and self-locking SS nuts.

4 glass fiber reinforcements are provided in the fixing area which strengthens the joints and avoids crushing the pipes.

THE TECHNICAL CHOICES THAT MAKE THE DIFFERENCE,

The RESONANT "Full-Quarter Wave" Ground Plane,

From our electromagnetic simulations also validated by comparative instrumental tests, with this ground plane which is widely used for most antennas (from the HF to UHF bands) the performance in terms of horizontal angle of maximum radiation or Take-Off is considerably better.

We compared two identical 5/8 antennas, one with a GP consisting of 8 NON-RESONANT radials of 1/8 lambda (about 1.35m long), and one with a GP of 4 RESONANT radials of ¼ lambda (about 2.7m long) under the same installation conditions.

The result of our test is that the version with 4 resonant radials ¼ lambda always obtains a maximum radiation angle or take-off of about 4 ° or 5 ° lower, allowing a considerable improvement in long-distance DX connections.

The high "Q" Coil,

The coil plays a fundamental role in impedance matching and maximum RF transfer, its shape given by the length/diameter ratio, the pitch between turns, the material and diameter of the wire, and the presence or absence of metal cores within it, determine the quality factor "Q".

In simple terms, the higher the "Q" value of the coil, the lower the losses at high frequencies.

We have created a generously sized coil suspended in the air without metal cores, with an L / D ratio of 1.3 and widely spaced turns, obtaining a "Q" value of about 2500 at a frequency of 28MHz, when the best-competing antennas do not reach 1500.

This translates into maximum efficiency and the ability to withstand high RF powers.

In addition, the coil is directly connected to the ground in direct current (DC-Ground), in this way, atmospheric disturbances and background noises are significantly reduced.

The FE10V connector is not a commercial SO-239 type connector as most manufacturers use. The connector was designed and built directly by us, has a real impedance of 50 Ohms, and can be used up to 500 MHz. The goal was to create a reliable connector capable of withstanding 5kW CW continuously at 30 MHz.

The body is made of CW614N nickel-plated brass, while the pin is plated in 24K gold to avoid oxidation and equipped with a 4-fin insulator that maintains its centering and elasticity, avoiding contact losses.

The insulating part is made of PTFE which is one of the best insulating materials due to its exceptional electrical (low dielectric constant and reduced loss factor) and thermal (operating temperature from -100 ° to + 260 °) properties and is protected from special elastomer hood that prevents water and humidity infiltration.

The fixing bracket, made of 2.5mm thick AISI304 stainless steel, is fixed to the antenna tube by means of a clamp closure system, creating an extremely strong mechanical locking.

Fixing to the mast is made with AISI304 M6 V-Bolt and high-type nuts to facilitate tightening.

FE10V, UHF Connector.
