Hy-Gain DX-77A 10–40m vertical antenna with trap coils and radial base
Hy-Gain DX-77A 10–40m vertical antenna with trap coils and radial base

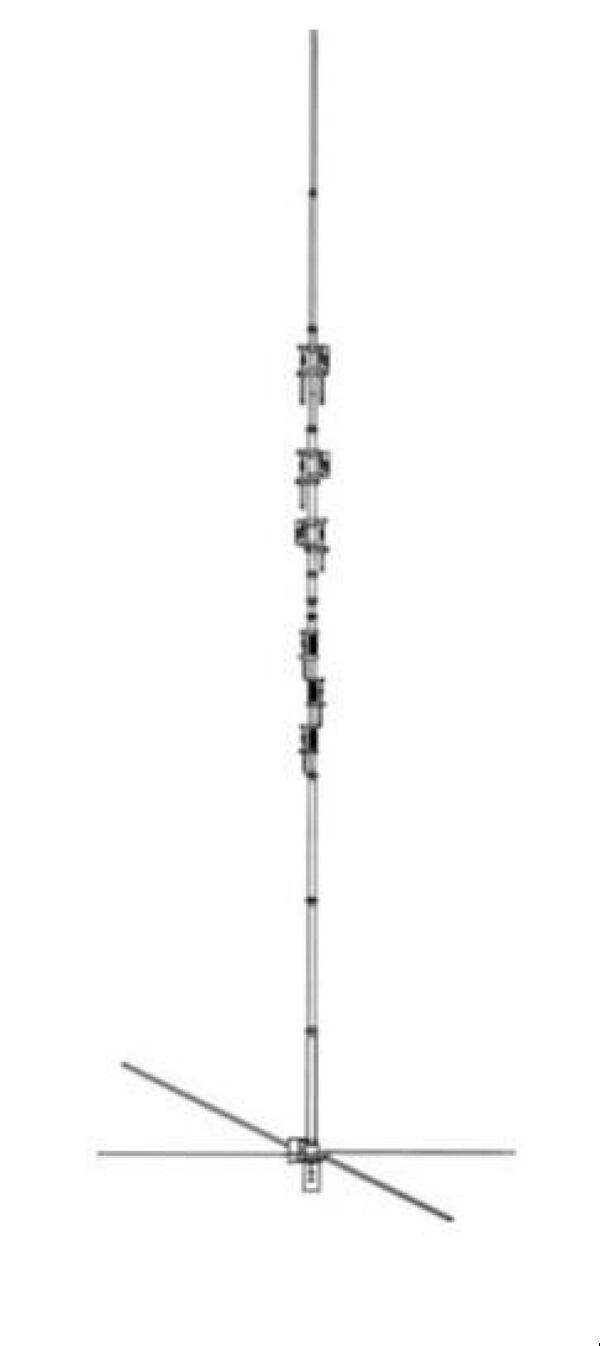

Hy-Gain DX-77A multi-band HF antenna for amateur radio, 29ft tall
Click the image to enlarge
Hy-Gain DX-77A 10–40m vertical antenna with trap coils and radial base
Hy-Gain DX-77A multi-band HF antenna for amateur radio, 29ft tall

Hy-gain Antennas – Engineered for Long-Distance Performance

Hy-Gain DX-77A 10–40m Vertical Antenna | 7-Band HF with No Radials | 1.5kW PEP High-Performance

£0.00
(£0.00 exc. VAT)
£579.95
(£483.29 exc. VAT)
Fast uk delivery
Worldwide delivery
Out of Stock
Qty:
ADD TO WISHLIST
579 Reward points
Product code: DX-77A
Download a pdf document for Hy-Gain DX-77A 10–40m Vertical Antenna | 7-Band HF with No Radials | 1.5kW PEP High-Performance

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£579.95
12 Months 14.9% APR
£57.99
£49.98
£657.72
£579.95
18 Months 14.9% APR
£57.99
£33.32
£657.72
£579.95
24 Months 14.9% APR
£57.99
£24.99
£657.72
£579.95
36 Months 14.9% APR
£57.99
£16.66
£657.72
£579.95
48 Months 14.9% APR
£57.99
£12.49
£657.72
£579.95
12 Months 19.5% APR
£57.99
£51.98
£681.73
£579.95
18 Months 19.5% APR
£57.99
£34.65
£681.73
£579.95
24 Months 19.5% APR
£57.99
£25.99
£681.73
£579.95
36 Months 19.5% APR
£57.99
£17.33
£681.73
£579.95
48 Months 19.5% APR
£57.99
£12.99
£681.73

Click here to recommend this product to a friend

Recommend a friend

Hy-Gain DX-77A 10–40m vertical antenna with trap coils and radial base

Hy-Gain DX-77A 10–40m Vertical Antenna | 7-Band HF with No Radials | 1.5kW PEP High-Performance


Trustpilot

Product Description: Hy-Gain DX-77A 10–40m Vertical Antenna

The Hy-Gain DX-77A is a rugged, high-performance vertical antenna engineered for amateur HF operation across 7 bands: 10, 12, 15, 17, 20, 30, and 40 meters. With a power handling capacity of 1.5kW PEP, it’s built for serious DXing and contesting.

Key Features

  • Frequency Coverage: 10–40 meters (10, 12, 15, 17, 20, 30, 40m)

  • Height: 29 feet (8.8 meters)

  • Power Rating: 1.5kW PEP SSB

  • Design: Trap-loaded vertical with automatic band switching

  • Radials: Not required – self-contained ground system

  • Mounting: Heavy-duty tiltable mast clamp (fits up to 2.125" O.D. masts)

  • Weight: Approx. 25 lbs (11.35 kg)

  • Wind Rating: Up to 60 mph unguyed

Performance Highlights

  • VSWR: Typically <1.5:1 across bands

  • Radiation Pattern: Unity gain, omnidirectional

  • Bandwidth: 100–500 kHz typical depending on band

  • Efficiency: High-Q traps isolate active sections for optimal resonance.
