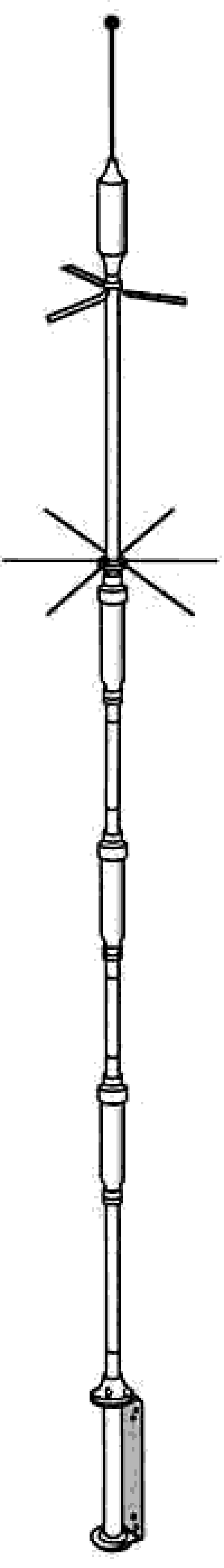

HUSTLER 5-BTV Multi-Band HF Vertical Antenna (80–10m, 1kW)

Engineered for serious amateur radio operators, the HUSTLER 5-BTV delivers solid signals, solid construction, and solid value. Covering five HF bands — 80, 40, 30, 20, and 10 meters — this trap-based vertical antenna is designed for ground mounting and supports user-supplied radials for enhanced performance.

Its exclusive trap design ensures band stability and reliability, while frequency adjustment is easily achieved through tubing length and trap tuning, allowing up to 2 MHz of shift. The use of large-diameter tubing provides full bandwidth coverage on 10m through 40m, with VSWR typically better than 1.6:1 at band edges. On 80m, operators can expect approximately 80kHz of usable bandwidth.

Built for durability, the 5-BTV features a 0.315-inch base tube wall and a non-tapered structure for added rigidity. Longer than comparable verticals, it offers improved efficiency and rugged performance in all UK weather conditions.

Key Specs:

• Frequency Bands: 80m, 40m, 30m, 20m, 10m

• Power Rating: 1,000W PEP

• Mounting: Ground-mount with user-supplied radials

• Construction: Heavy-duty aluminium tubing, 0.315in base wall

• Tuning: Trap and tubing length adjustable (up to 2MHz shift)

• VSWR: Typically <1.6:1 at band edges

Why Choose the 5-BTV:

• Proven trap design for multi-band HF operation

• Sturdy build with non-tapered tubing for long-term reliability

• Efficient performance across all supported bands

• Ideal for DXing, portable setups, and space-limited installations.
