Comet CHV5A - Multi-Band Compact Dipole Antenna


Trustpilot

The Comet CHV5Ais a compact, multi‑band rotatable dipole designed for operators who need HF performance in limited space. Covering 40, 20, 15, 10 and 6 metres, this ½‑wave antenna offers excellent versatility while remaining lightweight and easy to install.

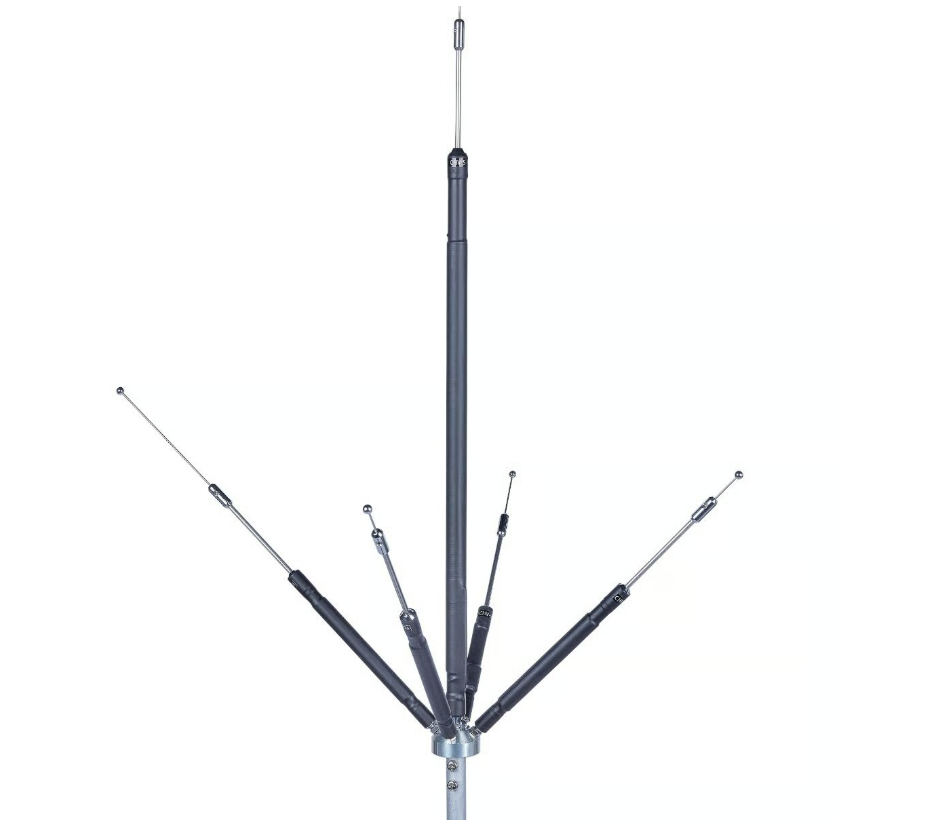

Engineered for flexibility, the CHV5A can be assembled in a horizontal, inverted‑V, or ground‑planeconfiguration, making it suitable for a wide range of installations—from small gardens to portable and temporary setups. Each band tunes independently, allowing precise adjustment without affecting the others.

Despite its compact footprint, the CHV5A delivers solid performance with power handling of 150W SSB on 40/20mand 220W SSB on 15/10/6m. With its manageable 13-ft (approx.) span and 6-lbweight, it is ideal for operators who want a rotatable HF dipole but lack the space for full‑size antennas.

Whether used at home or in the field, the Comet CHV5A provides a practical, efficient solution for multi‑band HF operation.


Technical Specifications

FeatureDetails
ModelComet CHV5A
Bands40 / 20 / 15 / 10 / 6 metres
Antenna Type½‑wave multi‑band rotatable dipole
Gain & Wavelength2m: 2.15 dBi (¼ wave), 70cm: 3.5 dBi (5/8 wave)
Power Handling40/20m: 150W SSB; 15/10/6m: 220W SSB
Length (Horizontal)Approx. 13 ft
Impedance50 Ω
WeightApprox. 6 lbs
ConnectorSO‑239
Mounting Mast Size1" – 2.5"
Assembly OptionsHorizontal, V‑shape, ground‑plane
TuningEach band is independently adjustable
